AP Coilover Suspension – BMW 1 Series E81 / E82 / E87

Upgrade the suspension of your BMW 1 Series with the AP Coilover Suspension Kit, combining adjustable ride height with a sport-focused damper setup for improved stance, handling and everyday road performance.

AP coilovers are designed to offer a balance between sportiness, comfort and value, making them a strong option for drivers who want more adjustability than conventional lowering springs without moving to a more complex damping-adjustable suspension system.

AP part number:

11520039

Alternative reference:

GF20-039

Adjustable Ride Height

This kit provides threaded height adjustment at both the front and rear axles.

Approximate adjustment range:

• Front: 35–65mm lowering
• Rear: 35–65mm lowering

Ride height can be adjusted using the threaded spring perch, allowing the car to be set up around stance, wheel fitment and intended road use.

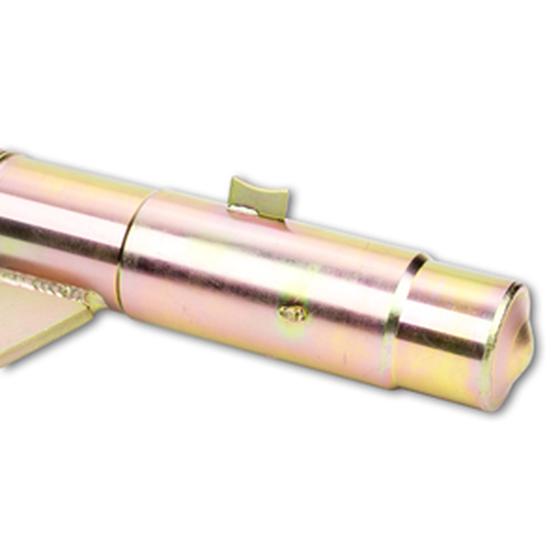

Galvanized Steel Construction

The coilover struts use galvanized steel construction to provide additional protection against corrosion.

Key construction features include:

• Galvanized steel damper bodies
• Corrosion-resistant spring coating
• Threaded height adjustment
• Aluminium spring perches
• Twin-tube damper construction

This makes the kit suitable for road cars that may see year-round use, provided the threaded components are kept clean and maintained correctly.

Fixed Damping Setup

This AP kit does not feature user-adjustable damping.

The dampers are pre-set by AP to provide a sportier response than standard suspension while retaining a degree of everyday ride comfort.

This makes the kit particularly suitable for drivers who want:

• Adjustable ride height
• Sportier handling
• A straightforward suspension setup
• No need to manually tune damper settings

Designed for Fast-Road Use

The AP setup is aimed primarily at road and fast-road applications.

Potential benefits include:

• Reduced body movement
• Lower centre of gravity
• Improved steering response
• More controlled cornering
• More aggressive vehicle stance
• Greater suspension adjustability than fixed lowering springs

The fixed damping configuration also makes the kit relatively simple to set up compared with more track-focused adjustable coilovers.

Compatibility – Please Check Carefully

AP part number 11520039 is listed for selected BMW 1 Series E8x rear-wheel-drive applications.

Compatible chassis include:

• BMW 1 Series E81 Hatch
• BMW 1 Series E82 Coupe
• BMW 1 Series E87 Hatch

Published application data includes a wide range of petrol and diesel variants, including examples such as:

• 116i
• 118i
• 120i
• 125i
• 128i
• 130i
• 135i
• 116d
• 118d
• 120d
• 123d

Exact compatibility depends on model, engine, production date and axle loads, so the kit should not be selected solely from the chassis code.

Maximum Axle Loads

The current application data for 11520039 specifies maximum permissible axle loads of:

• Front axle: 945kg
• Rear axle: 1070kg

Your vehicle must not exceed these limits.

We recommend checking the axle-load information on the vehicle identification plate before ordering.

Important Fitment Restrictions

This kit is not suitable for:

• Four-wheel-drive / xDrive models

AP also notes that wheel spacers may be required when using certain original wheel and tyre combinations to provide sufficient clearance between the wheel and suspension components.

Before ordering, confirm:

• Exact BMW model
• Chassis code
• Engine variant
• Production year
• Front axle load
• Rear axle load
• Rear-wheel-drive configuration
• Wheel and tyre setup

If there is any doubt over compatibility, please contact The Rosso Corsa Collective with your registration or VIN before ordering.

TÜV Approved Adjustment Range

The ride-height adjustment range is supplied with TÜV parts approval for the specified applications.

The suspension should be installed and adjusted within the approved range stated in the supplied documentation.

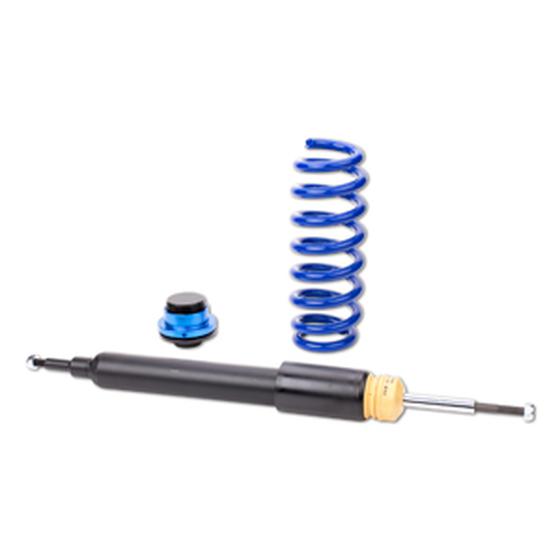

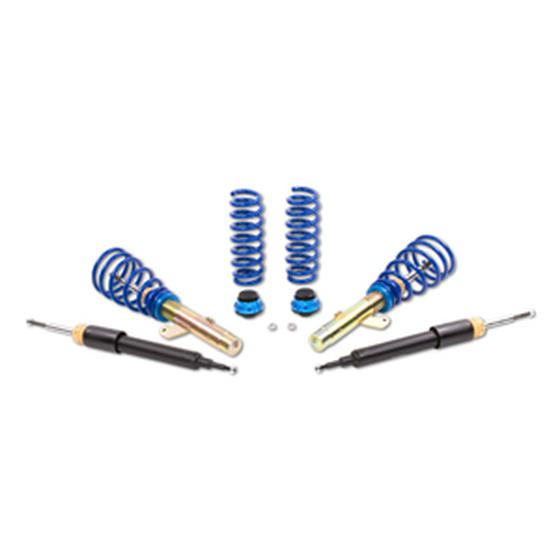

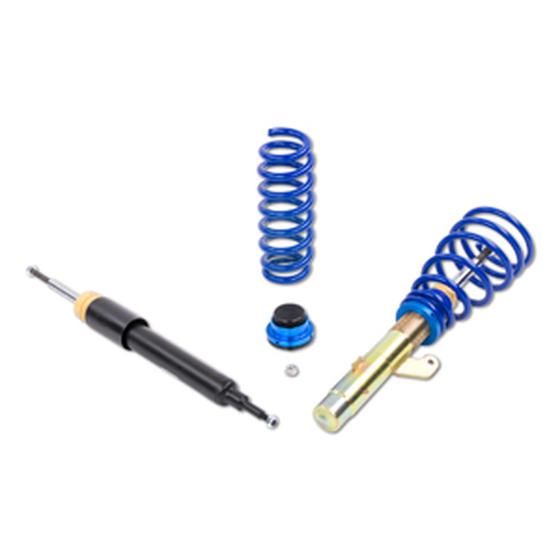

What's Included

The kit includes:

• Front height-adjustable dampers
• Rear height-adjustable suspension components
• Application-specific springs
• Adjustment tool

Exact supplied hardware can vary slightly by vehicle application.

Product Image Note

Product images may be generic and are intended for illustration purposes only.

The exact shape and configuration of the components supplied can vary depending on vehicle application.

If you need confirmation of a specific component or configuration before ordering, please contact The Rosso Corsa Collective.

Professional Installation Recommended

Professional installation is recommended.

Following installation, the vehicle should receive a full wheel alignment and geometry setup to ensure correct handling and tyre wear.

Wheel and tyre clearance should also be checked throughout the full steering and suspension range.
