BC Racing ASP Suspension - BMW 2 Series G87 M2 (2023+)

Specially designed for vehicles equipped with electronic damping systems. Our ASP spring kits allow users to easily replace their stock springs with adjustable spring perches and lowering springs. The kits allow ride height to be custom set using the provided adjustable spring platform while retaining the use of the OEM adjustable electronic damping systems.

BC Racing ASP Adjustable Spring Perch Kit – BMW M2 G87

The BC Racing ASP Adjustable Spring Perch Kit for the BMW M2 G87 is designed for owners who want a lower, more purposeful stance while retaining the factory electronic damping system.

Unlike a conventional coilover conversion, the ASP system works with the original electronically controlled dampers. This allows G87 M2 owners to gain adjustable ride height without removing the OEM electronic damping functionality or introducing the warning issues associated with replacing the factory dampers.

Why choose the BC Racing ASP Kit for your G87 M2?

The G87 M2 comes equipped with a sophisticated factory suspension system, and not every owner wants to lose the functionality of the original electronic dampers simply to lower the car.

The BC Racing ASP system provides an alternative to both fixed lowering springs and a complete coilover conversion.

Adjustable spring perches allow the ride height to be tailored to suit your preferred stance, while vehicle-specific springs are designed to work alongside the original dampers and their available travel at lowered ride heights.

This makes the ASP particularly well suited to road-driven G87 M2s where maintaining OEM electronic damper functionality and everyday usability is a priority.

Key Features

• BC Racing ASP Adjustable Spring Perch system
• Specifically designed for the BMW M2 G87
• Retains the factory electronic damping system
• Adjustable ride height
• Vehicle-specific spring design
• Works with the original OEM dampers
• Lowered stance without converting to conventional coilovers
• Designed to retain OEM-like ride quality
• Improved chassis stability at higher speeds
• 4.3 kg/mm front spring rate
• 14 kg/mm rear spring rate
• Designed for road and performance use

Retain Your Factory Electronic Dampers

One of the biggest advantages of the ASP kit is that the original electronically controlled dampers remain in place.

Traditional coilovers generally replace the factory dampers entirely, which means the electronic damping functionality may be lost and additional cancellation solutions can be required.

The BC Racing ASP system instead works around the original G87 M2 suspension, giving you adjustable ride height while retaining the functionality of the factory damping system.

For owners who use their M2 regularly on the road, this provides a useful compromise between lowering the car and retaining the functionality BMW engineered into the original suspension.

Adjustable Ride Height

Unlike conventional lowering springs, the ASP system allows the ride height to be adjusted through the spring perch assembly.

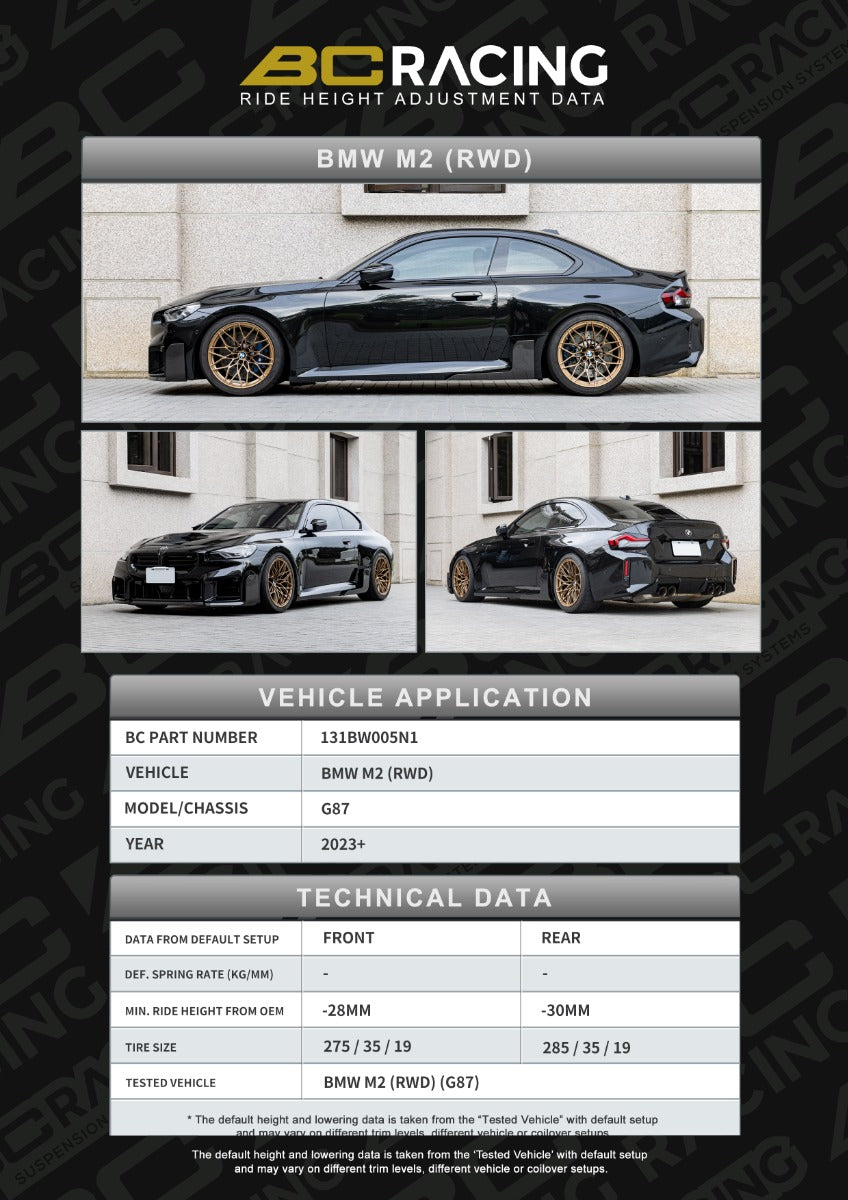

For the G87 M2 application, published specifications indicate approximately 28mm of lowering at the front and 30mm at the rear, although actual ride height can vary depending on the vehicle and setup.

This allows you to fine-tune the stance rather than being limited to the fixed drop provided by a conventional lowering spring.

Vehicle-Specific Spring Rates

The BC Racing ASP kit for the G87 M2 uses vehicle-specific springs designed to work with the factory dampers.

The standard specification is:

• Front: 4.3 kg/mm
• Rear: 14 kg/mm

BC Racing designs the ASP spring package around the available travel of the original dampers at a lowered ride height, helping maintain a usable suspension setup rather than simply fitting shorter springs to the factory dampers.

ASP vs Lowering Springs

Conventional lowering springs provide a straightforward way to reduce ride height, but the amount of lowering is fixed once installed.

The BC Racing ASP kit provides the same benefit of retaining the OEM dampers while adding adjustable ride height.

This allows G87 M2 owners to fine-tune the stance and suspension height rather than being restricted to a predetermined drop.

For owners who want adjustability without moving to a full coilover system, the ASP offers a useful middle ground.

ASP vs Coilovers

A full coilover kit provides substantially greater suspension adjustment, including damping control and potentially more track-focused spring and damper configurations.

The ASP takes a different approach.

Rather than replacing the factory dampers, it retains the OEM electronic damping system and concentrates on providing adjustable ride height and revised spring characteristics.

For predominantly road-driven G87 M2s where retaining the factory electronic suspension is important, the ASP can therefore be a more appropriate option than a conventional coilover conversion.

Important G87 M2 Compatibility

This BC Racing ASP kit is specifically designed for the rear-wheel-drive BMW M2 G87.

BC Racing's current listing identifies the application as the 2023+ BMW M2 RWD, with the kit reference 131BW005N1.

Please confirm your exact vehicle specification before ordering.

What's Included?

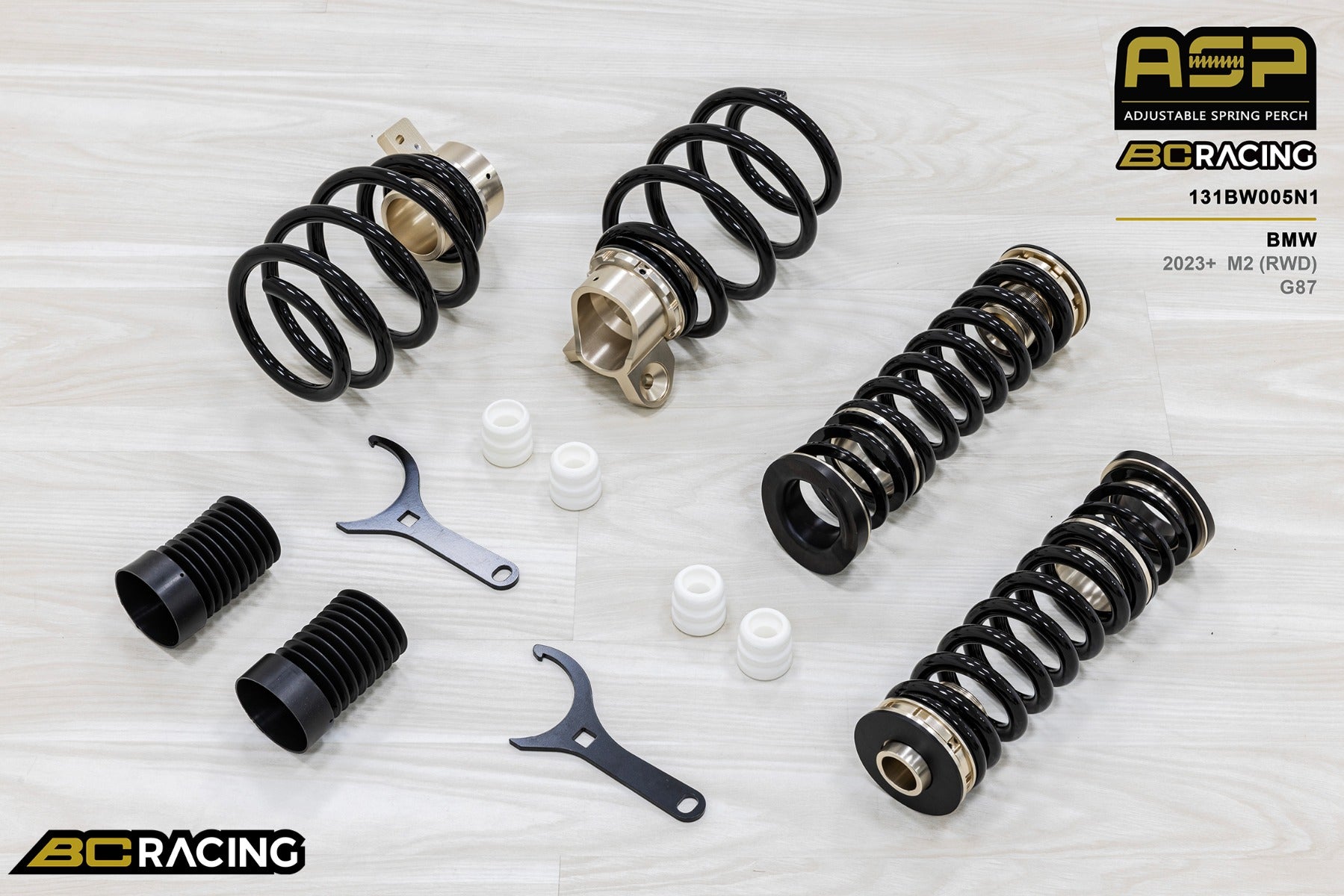

The BC Racing ASP system is supplied with the vehicle-specific adjustable spring perch components and springs required for the BMW M2 G87 application while retaining the original dampers.

Unlike BC Racing's conventional coilover systems, custom spring rates, extreme-low specifications and Swift Spring upgrades are not available for the ASP product line.
