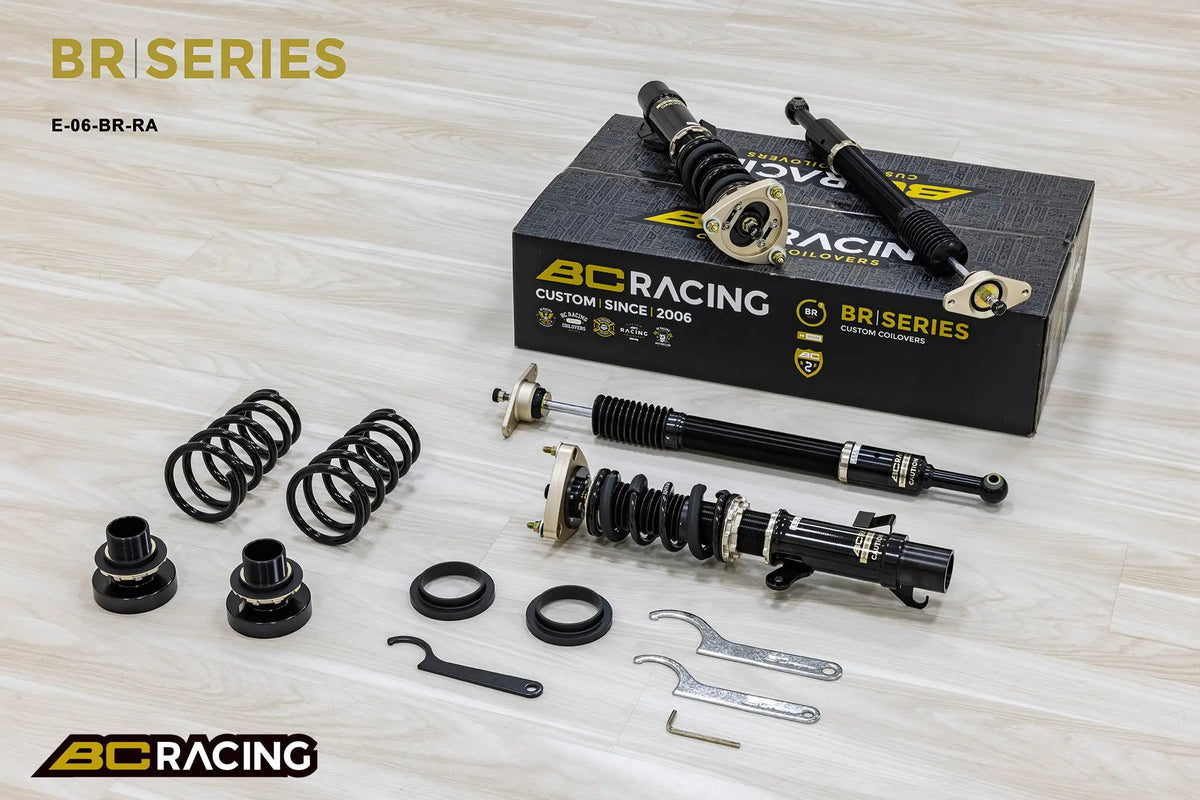

BC Racing BR Series - Ford Focus MK2 (2004-2011) (Inc ST)

BC Racing BR Series Coilovers – Ford Focus MK2 (2004–2011) Including ST

Upgrade the suspension of your Ford Focus Mk2 with the BC Racing BR Series coilover kit, designed to provide a strong balance of everyday usability, fast-road performance and track capability.

Suitable for selected Ford Focus Mk2 models including the Focus ST, the BR Series combines a monotube damper design with 30-way adjustable damping and independent ride-height adjustment, giving you the flexibility to tailor the suspension around your vehicle and intended use.

BC Racing product code:

E-06-BR-RA

Adjustable Ride Height & Damping

BC Racing BR Series coilovers allow ride height to be adjusted independently of spring preload, helping retain usable damper travel when lowering the vehicle.

The 30-way damping adjustment allows the suspension response to be softened for everyday road use or firmed up for more demanding fast-road and track driving.

Key features:

• BR Series monotube coilover design

• 30-way adjustable damping

• Independent ride-height adjustment

• Adjustable spring preload

• Improved body control and chassis response

• Large-capacity monotube damper construction

• Rebuildable design

• Replacement components available

• Wide range of spring-rate configurations

• Road, fast-road and track-focused options available

• Suitable for selected Ford Focus Mk2 models including ST

• BC Racing product code: E-06-BR-RA

Spring Rate Options

A wide range of spring-rate configurations are available, allowing the suspension to be matched closely to the intended use of the vehicle.

6/5.5kg.mm – recommended spring rate for a balance of comfort and performance

Additional options include:

• 7/4.5kg.mm

• 9/5.5kg.mm

• 9/6kg.mm

• Race Damp 10/12kg.mm

• 8/12kg.mm

• 8/6kg.mm

• 12/14kg.mm

• 10/12kg.mm

• Standard Ride Height 7/5.5kg.mm

• 7/5kg.mm

• 7/7kg.mm

• 8/10kg.mm

The recommended 6/5.5kg.mm configuration provides the best all-round option for road and fast-road use, improving body control and response while retaining a more compliant ride.

Higher spring-rate configurations are available for drivers wanting increased chassis support, reduced body movement and a more focused setup for regular track use or motorsport.

The Race Damp 10/12kg.mm configuration is intended for significantly more track-focused applications and uses damping matched to the higher spring rates.

The Standard Ride Height 7/5.5kg.mm option is available for applications where increased suspension performance is required without the same emphasis on lowering the vehicle.

If you are unsure which spring rate is most suitable for your Focus, please contact us before ordering and we can help confirm the most appropriate configuration.

BR-RA Configuration

This application uses the BC Racing BR-RA configuration.

The BR Series provides a highly adjustable suspension package suitable for everything from a daily-driven Focus through to fast-road, track-day and more focused performance builds.

With multiple spring-rate options available, the kit can be specified around the way the vehicle is actually used rather than relying on a single fixed setup.

Vehicle Fitment

Designed for selected:

• Ford Focus Mk2

• Ford Focus ST Mk2 / ST225

• 2004–2011

Exact compatibility can vary depending on model, engine and suspension specification.

Product Image & Specification Note

Product images are for illustration purposes only and may not show the exact specification supplied for every vehicle application.

BC Racing kits can vary depending on vehicle, spring rate, top mount configuration and other specification options. If you have any specific requirements, such as upgraded or alternative top mounts, spring rates or ride-height preferences, please contact us before ordering so we can confirm the most suitable configuration for your setup.

Fast Road & Track Performance

The BC Racing BR Series is well suited to drivers looking to improve body control, steering response and chassis feel while retaining extensive adjustment.

The recommended 6/5.5kg.mm setup provides a strong balance for everyday and fast-road use, while the extensive range of alternative spring rates allows the same platform to be configured for much more focused track and motorsport applications.

Professional Installation Recommended

Professional installation is recommended.

A full four-wheel alignment should also be carried out after installation and once the final ride height has been set to ensure correct geometry, tyre wear and handling characteristics.
