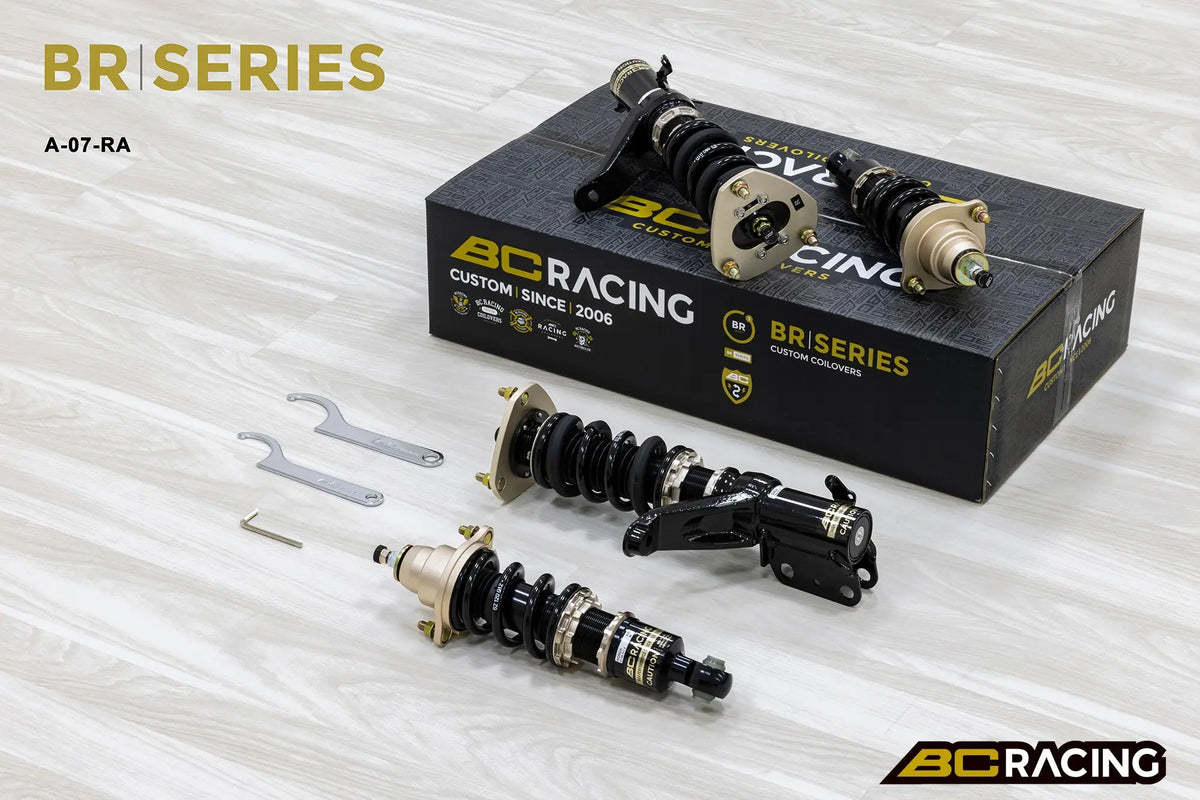

BC Racing BR Series - Honda Integra DC5/RSX (2001-2006)

BC Racing BR Series Coilovers – Honda Integra DC5 / RSX (2001–2006)

Upgrade the suspension of your Honda Integra DC5 or Acura RSX with the BC Racing BR Series coilover kit, designed to provide a strong balance of everyday usability, fast-road performance and occasional track capability.

The BR Series combines a monotube damper design with 30-way adjustable damping and independent ride-height adjustment, allowing the suspension setup to be tailored around road use, fast-road driving and more focused track applications.

Multiple BR-RA and BR-RS configurations are available, allowing the spring rates and top mount specification to be matched more closely to the intended use of the vehicle.

Adjustable Ride Height & Damping

BC Racing BR Series coilovers allow ride height to be adjusted independently of spring preload, helping retain usable damper travel when lowering the vehicle.

The 30-way damping adjustment allows the suspension response to be softened for road use or firmed up for more demanding fast-road and track driving.

Key features:

• BR Series monotube coilover design

• 30-way adjustable damping

• Independent ride-height adjustment

• Adjustable spring preload

• Improved body control and chassis response

• Large-capacity monotube damper construction

• BR-RA and BR-RS configurations available

• Multiple spring-rate options

• Rebuildable design

• Replacement components available

• Custom specification options available

• Designed for Honda Integra DC5 / Acura RSX models

Specification & Spring Rate Options

Available configurations include:

BR-RA – 6/9kg.mm – recommended spring rate for a balance of comfort and performance

Alternative configurations include:

• BR-RA – 8/10kg.mm – firmer, more performance-focused setup

• BR-RS – 5.5/9kg.mm – alternative road-friendly top mount specification

The recommended BR-RA 6/9kg.mm configuration provides a strong balance between chassis control, response and road usability, making it suitable for fast-road and occasional track use.

The BR-RA 8/10kg.mm option increases spring rate at both ends for drivers wanting a firmer and more focused chassis under hard braking and cornering.

The BR-RS 5.5/9kg.mm option uses a slightly softer front spring rate together with a more road-friendly top mount specification, making it well suited to drivers prioritising refinement alongside improved handling.

If you are unsure which configuration is most suitable for your Integra or RSX, please contact us before ordering.

BR-RA Configuration

The BR-RA configuration is supplied with aluminium front top mounts featuring pillowball centres.

Where the suspension design allows, the front mounts can provide camber adjustment while also creating a more direct connection between the suspension and chassis.

Depending on the rear suspension arrangement, aluminium rear top mounts with rubber centres may also be supplied, or no replacement rear top mount may be required.

BC Racing product code:

A-07-BR-RA

BR-RS Configuration

The BR-RS configuration is supplied with aluminium front top mounts using rubber centres.

Depending on the rear application, aluminium rear top mounts with rubber centres may also be supplied, or the original rear mounting arrangement may be retained.

This configuration is particularly well suited to drivers wanting improved suspension performance while maintaining greater road refinement.

BC Racing product code:

A-07-BR-RS

Vehicle Fitment

Designed for selected:

• Honda Integra DC5

• Acura RSX

• 2001–2006

Exact compatibility can vary depending on market, model and suspension specification.

Product Image & Specification Note

Product images are for illustration purposes only and may not show the exact specification supplied for every vehicle application.

BC Racing kits can vary depending on vehicle, spring rate, top mount configuration and other specification options. If you have any specific requirements, such as upgraded or alternative top mounts, spring rates or ride-height preferences, please contact us before ordering so we can confirm the most suitable configuration for your setup.

Fast Road & Track Performance

The BC Racing BR Series is well suited to Integra DC5 and RSX owners looking to improve body control, steering response and chassis feel while retaining extensive adjustability.

The BR-RA 6/9kg.mm recommended setup provides a strong all-round configuration, while the alternative 8/10kg.mm and BR-RS 5.5/9kg.mm options allow the suspension to be tailored towards either a firmer performance setup or greater road refinement.

Professional Installation Recommended

Professional installation is recommended.

A full four-wheel alignment should also be carried out after installation and once the final ride height has been set to ensure correct geometry, tyre wear and handling characteristics.

Where pillowball or adjustable top mounts are fitted, suspension geometry should be set by a competent specialist to suit the intended use of the vehicle.

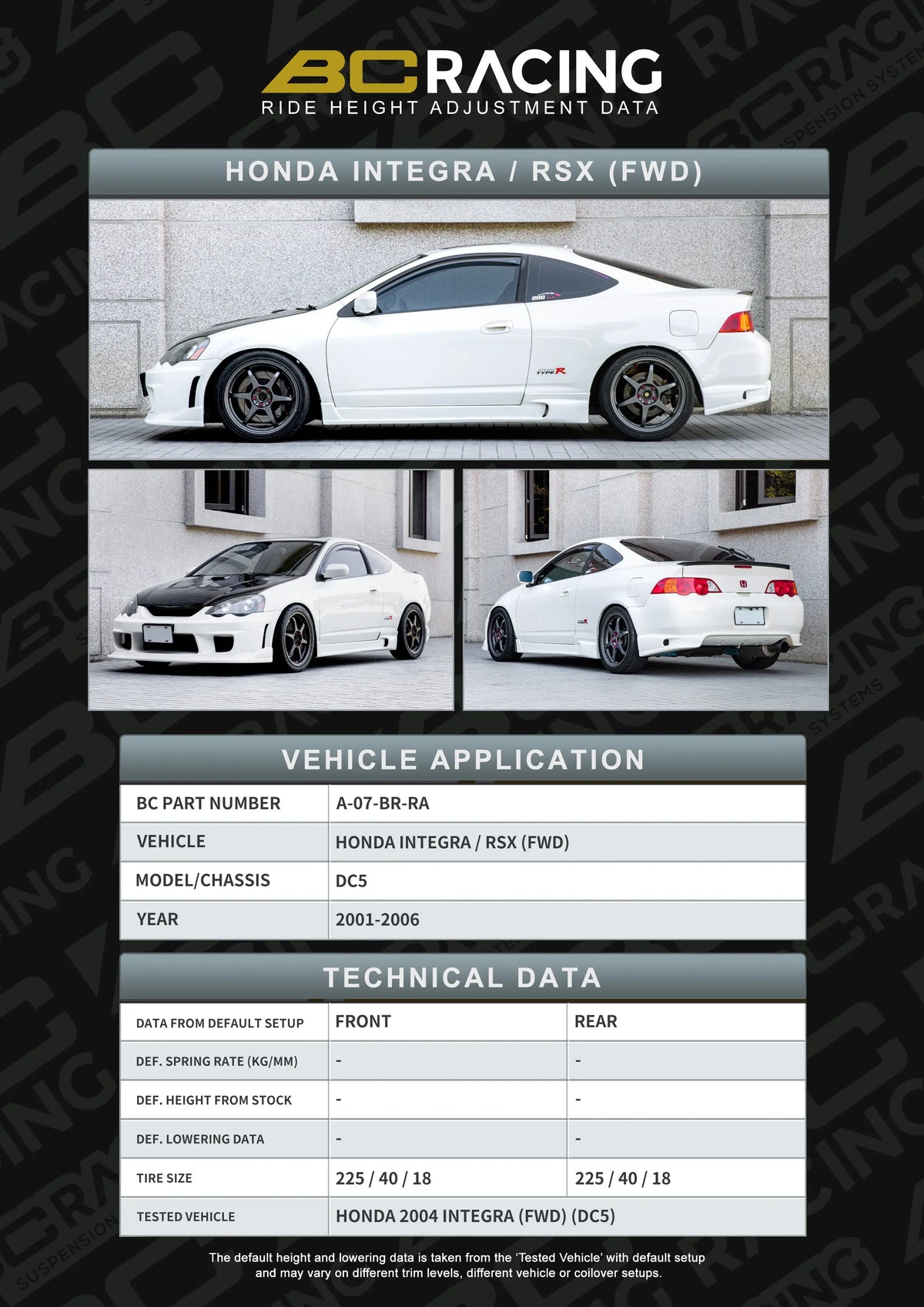

Lowering Data Note: The lowering figures shown in the second image apply only to the recommended kit specification. Alternative spring-rate or configuration options may achieve different ride-height ranges.
