BC Racing BR Series - Honda S2000 AP1/AP2 (2000-2009)

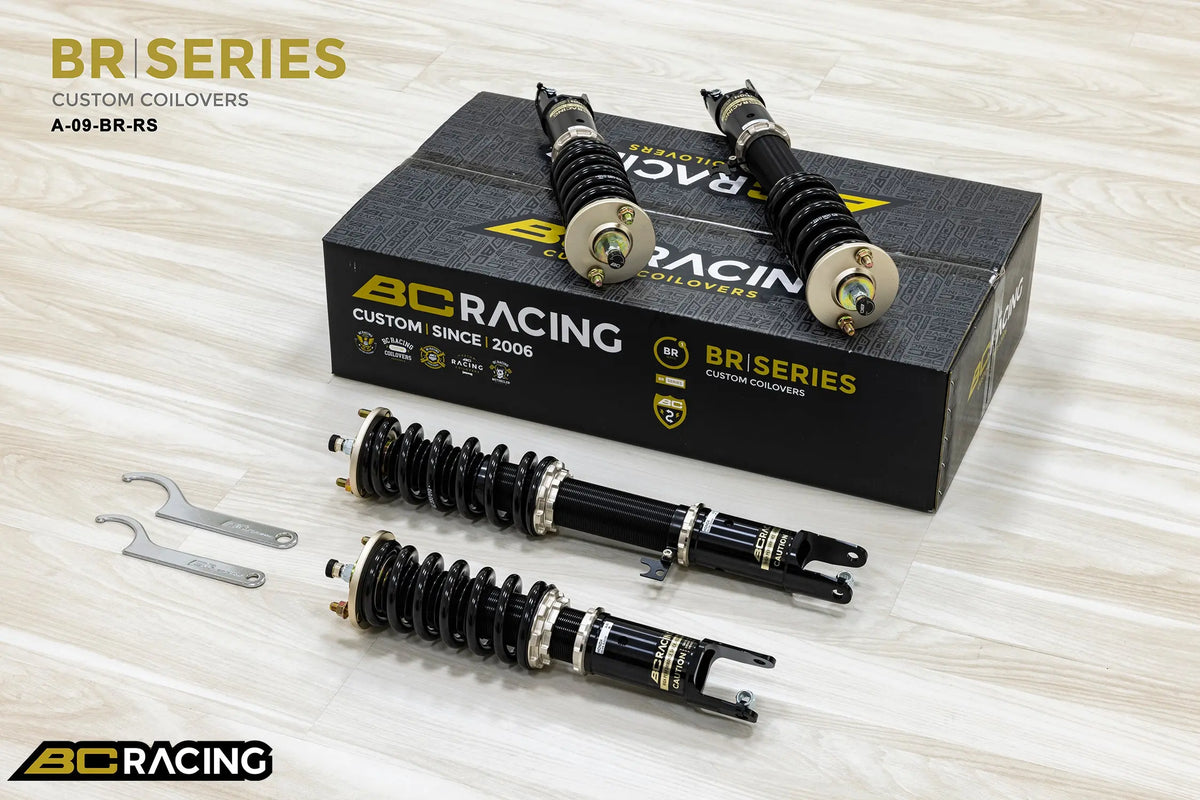

BC Racing BR Series Coilovers – Honda S2000 AP1 / AP2 (2000–2009)

Upgrade the suspension of your Honda S2000 AP1 or AP2 with the BC Racing BR Series coilover kit, designed to provide a strong balance of road usability, fast-road performance and track capability.

The BR Series combines a monotube damper design with 30-way adjustable damping and independent ride-height adjustment, allowing the suspension setup to be tailored around everyday driving, fast-road use and more focused circuit applications.

Multiple BR-RS and BR-RH configurations are available, including alternative spring rates and an Extra Low option for drivers looking for a more specialised setup.

Adjustable Ride Height & Damping

BC Racing BR Series coilovers allow ride height to be adjusted independently of spring preload, helping retain usable damper travel when lowering the vehicle.

The 30-way damping adjustment allows the suspension response to be softened for road use or firmed up for more demanding fast-road and track driving.

Key features:

• BR Series monotube coilover design

• 30-way adjustable damping

• Independent ride-height adjustment

• Adjustable spring preload

• Improved body control and chassis response

• Large-capacity monotube damper construction

• BR-RS and BR-RH configurations available

• Multiple spring-rate options

• Extra Low configuration available

• Rebuildable design

• Replacement components available

• Custom specification options available

• Designed for Honda S2000 AP1 / AP2 models

Specification & Spring Rate Options

Available configurations include:

BR-RS – 10/10kg.mm – recommended spring rate for a balance of comfort and performance

Alternative configurations include:

• BR-RS – 10/8kg.mm – softer rear setup for increased compliance

• BR-RS Extra Low – 10/10kg.mm – designed for a greater reduction in ride height

• BR-RH – 10/10kg.mm – alternative pillowball top mount specification

• BR-RH – 16/14kg.mm – significantly firmer, track-focused configuration

The recommended BR-RS 10/10kg.mm setup provides a balanced spring-rate configuration for fast-road and mixed road/track use while retaining the more road-friendly BR-RS mounting arrangement.

The BR-RS 10/8kg.mm option reduces the rear spring rate for drivers wanting additional rear compliance.

For cars where achieving a significantly lower ride height is the priority, the BR-RS Extra Low 10/10kg.mm configuration is specifically designed around a lower operating range.

The BR-RH 10/10kg.mm option retains the same spring-rate balance but uses a more direct pillowball top mount specification, while the 16/14kg.mm BR-RH configuration is aimed towards significantly more focused track and motorsport use.

If you are unsure which configuration is most suitable for your S2000, please contact us before ordering.

BR-RS Configuration

The BR-RS configuration is supplied with aluminium front top mounts using rubber centres.

Depending on the rear suspension application, aluminium rear top mounts with rubber centres may also be supplied, or the appropriate original rear mounting arrangement may be retained.

This makes the BR-RS specification particularly suitable for drivers wanting improved suspension performance while maintaining greater road refinement.

BR-RH Configuration

The BR-RH configuration is supplied with aluminium camber-adjustable pillowball front top mounts where available, with pillowball rear mounting or no replacement rear top mount depending on the application.

This provides a more direct connection between the suspension and chassis, making the BR-RH configuration better suited to drivers prioritising steering response, chassis feedback and track performance.

Extra Low Configuration

The BR-RS Extra Low 10/10kg.mm option is intended for vehicles where a greater reduction in ride height is required.

Its specification is designed around a lower operating range rather than simply lowering a standard kit beyond its intended adjustment range.

Vehicle Fitment

Designed for:

• Honda S2000 AP1

• Honda S2000 AP2

• 2000–2009

Exact compatibility can vary depending on market, model year and suspension specification.

Product Image & Specification Note

Product images are for illustration purposes only and may not show the exact specification supplied for every vehicle application.

BC Racing kits can vary depending on vehicle, spring rate, top mount configuration and other specification options. If you have any specific requirements, such as upgraded or alternative top mounts, spring rates or ride-height preferences, please contact us before ordering so we can confirm the most suitable configuration for your setup.

Lowering Data Note: Any lowering figures shown in secondary product imagery apply only to the recommended kit specification. Alternative configurations, including Extra Low versions, may achieve different ride-height ranges.

Fast Road & Track Performance

The BC Racing BR Series is well suited to S2000 owners looking to improve body control, steering response and chassis feedback while retaining extensive adjustability.

The BR-RS 10/10kg.mm recommended setup provides the strongest all-round balance, while the alternative BR-RS, BR-RH and Extra Low configurations allow the suspension to be tailored towards greater road compliance, increased lowering or much more focused track use.

Professional Installation Recommended

Professional installation is recommended.

A full four-wheel alignment should also be carried out after installation and once the final ride height has been set to ensure correct geometry, tyre wear and handling characteristics.

Where pillowball or adjustable top mounts are fitted, suspension geometry should be set by a competent specialist to suit the intended use of the vehicle.
