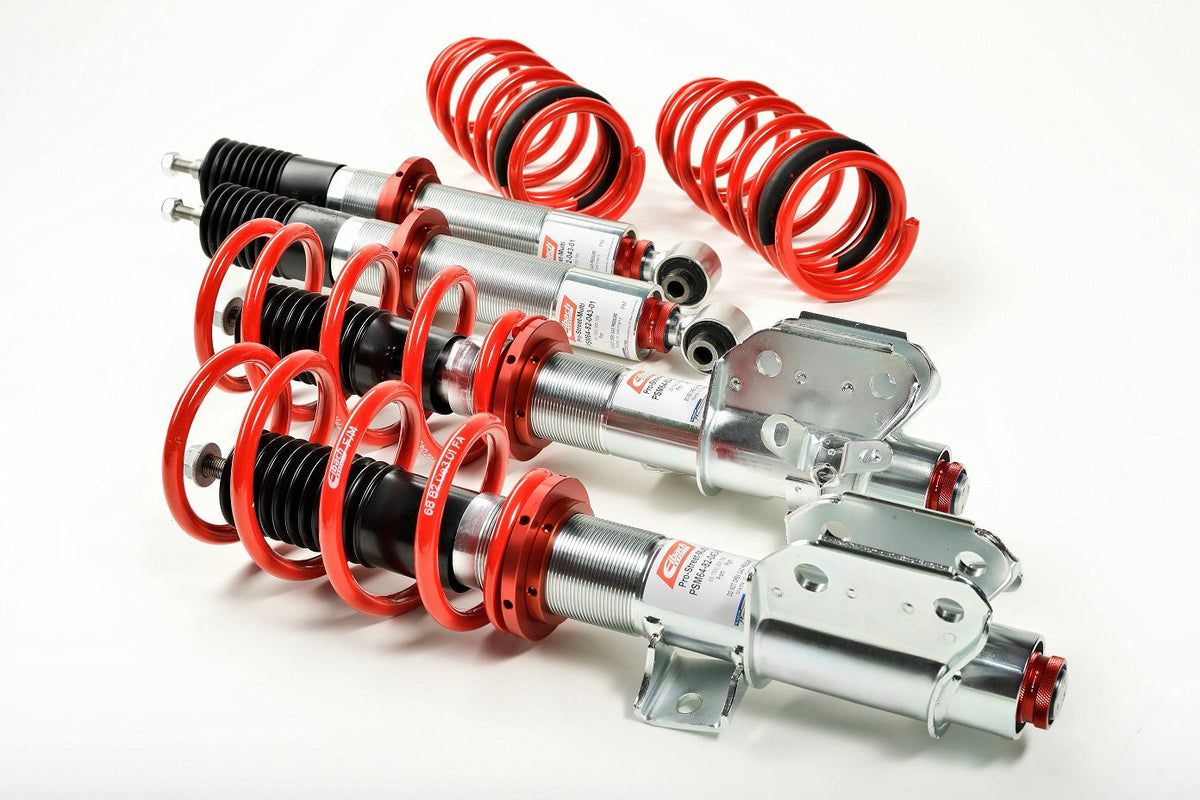

Eibach Pro-Street-Multi Coilovers (PSM69-20-013-02-22) - BMW 1 Series & 3 Series

Eibach Pro-Street-Multi Coilovers – BMW 1 Series & 3 Series

Upgrade your BMW with the Eibach Pro-Street-Multi Coilover Kit, developed for drivers who want adjustable ride height combined with independently adjustable damping for more precise road and track suspension tuning.

The Pro-Street-Multi sits above the conventional Pro-Street-S setup by adding adjustable compression and rebound damping, allowing the suspension characteristics to be tailored more closely to the vehicle, tyres and intended use.

Eibach part number:

PSM69-20-013-02-22

Height, Compression & Rebound Adjustable

The Pro-Street-Multi system combines:

• Adjustable ride height
• Adjustable rebound damping
• Adjustable compression damping
• Monotube damper construction
• Performance-focused spring and damper calibration
• Road and track suitability

The damping adjustment can be accessed with the suspension installed, allowing the setup to be altered without removing the dampers.

Adjustable Ride Height

For this application, the specified lowering range is approximately:

• Front: 15–45mm
• Rear: 15–45mm

This gives considerably more control over vehicle stance and chassis setup than a fixed lowering spring kit.

Actual ride height can vary depending on factory suspension specification, optional equipment and vehicle weight.

Adjustable Damping

One of the key advantages of the Pro-Street-Multi is the ability to tune both rebound and compression damping.

This allows the suspension to be tailored around:

• Road conditions
• Tyre choice
• Driver preference
• Vehicle weight
• Fast-road use
• Track setup

Compression adjustment influences how the damper responds as the suspension compresses, while rebound adjustment controls the return movement after compression.

This gives significantly greater tuning flexibility than a suspension kit with fixed damping.

Performance-Focused Monotube Construction

Eibach lists the Pro-Street-Multi as a height- and damping-adjustable monotube suspension system. The front axle can use an upside-down strut design depending on application, while the rear uses a height-adjustable arrangement.

The system was developed using Eibach and ZF Race Engineering suspension expertise.

BMW 1 Series Compatibility

Eibach PSM69-20-013-02-22 is listed for the following BMW 1 Series applications.

BMW E81

Approx. 09/2006–09/2012:

• 116d
• 116i
• 118d
• 118i
• 120d
• 120i
• 123d
• 130i

Application data specifies models from 85kW where applicable.

BMW E87

Approx. 03/2003–09/2012:

• 116d
• 116i
• 118d
• 118i
• 120d
• 120i
• 123d
• 130i

Application data again specifies models from 85kW where applicable.

BMW E82 Coupe

Approx. 10/2007–10/2013:

• 118d
• 118i
• 120d
• 120i
• 123d
• 125i
• 135i

BMW E88 Convertible

Approx. 03/2008–12/2013:

• 118d
• 118i
• 120d
• 120i
• 123d
• 125i
• 135i

BMW 3 Series Compatibility

This same Eibach part number is also listed for selected BMW E9x 3 Series models.

BMW E90 Saloon

Listed applications include:

• 316d
• 316i
• 318d
• 318i
• 320d
• 320i
• 320si
• 323i
• 325i
• 325d
• 328i
• 330i
• 330d
• 335d
• 335i

Certain applications are specified from 90kW.

BMW E91 Touring

Listed applications include:

• 316d
• 316i
• 318d
• 318i
• 320d
• 320i
• 323i
• 325d
• 325i
• 330i
• 330d
• 335d
• 335i

BMW E92 Coupe

Listed applications include:

• 316i
• 318i
• 320d
• 320i
• 323i
• 325i
• 325d
• 328i
• 330d
• 330i
• 335d
• 335i

BMW E93 Convertible

Listed applications include:

• 318i
• 320d
• 320i
• 323i
• 325d
• 325i
• 328i
• 330d
• 330i
• 335i

Maximum Axle Loads

This kit is specified up to:

• Front axle: 1060kg
• Rear axle: 1200kg

Your vehicle must not exceed these permissible axle loads.

The axle-load figures shown on the vehicle identification plate should be checked before ordering.

Electronic Damper Control

Where a vehicle is equipped with factory electronic damper control, installation of this suspension kit can disable the original electronic damping functionality.

Depending on the vehicle, this may also generate a dashboard fault or stored error code. A compatible Eibach Pro-Tronic cancellation solution may be required where available.

If your BMW has electronically controlled suspension, please contact us before ordering.

Important Fitment Notes

Compatibility should not be judged solely by chassis code.

Before ordering, confirm:

• Exact chassis
• Exact engine variant
• Model year
• Front axle load
• Rear axle load
• Factory suspension specification
• Presence of electronic damper control
• Wheel and tyre setup

Eibach also requires the supplied components and approval documentation to correspond with the intended vehicle application.

If you are unsure whether PSM69-20-013-02-22 is correct for your BMW, contact The Rosso Corsa Collective with your registration or VIN and vehicle specification before ordering.

Designed for Road & Track Use

The Pro-Street-Multi is particularly suited to:

• Fast-road cars
• Trackday builds
• Clubsport cars
• Performance daily drivers
• Drivers wanting adjustable damping
• Cars requiring greater chassis tuning flexibility

The independent damping adjustment makes it especially useful where suspension behaviour needs to be tailored around different tyres, road surfaces or circuit conditions.

Professional Installation Recommended

Professional installation is recommended.

After installation, the vehicle should receive a full wheel alignment and geometry setup.

Wheel, tyre and suspension clearance should also be checked throughout the full steering and suspension range, particularly on lowered vehicles or cars fitted with aftermarket wheels and spacers.
