Eibach Sportline BMW 1er (E81/E87) (E20-20-013-01-22)
Tax included. Shipping calculated at checkout

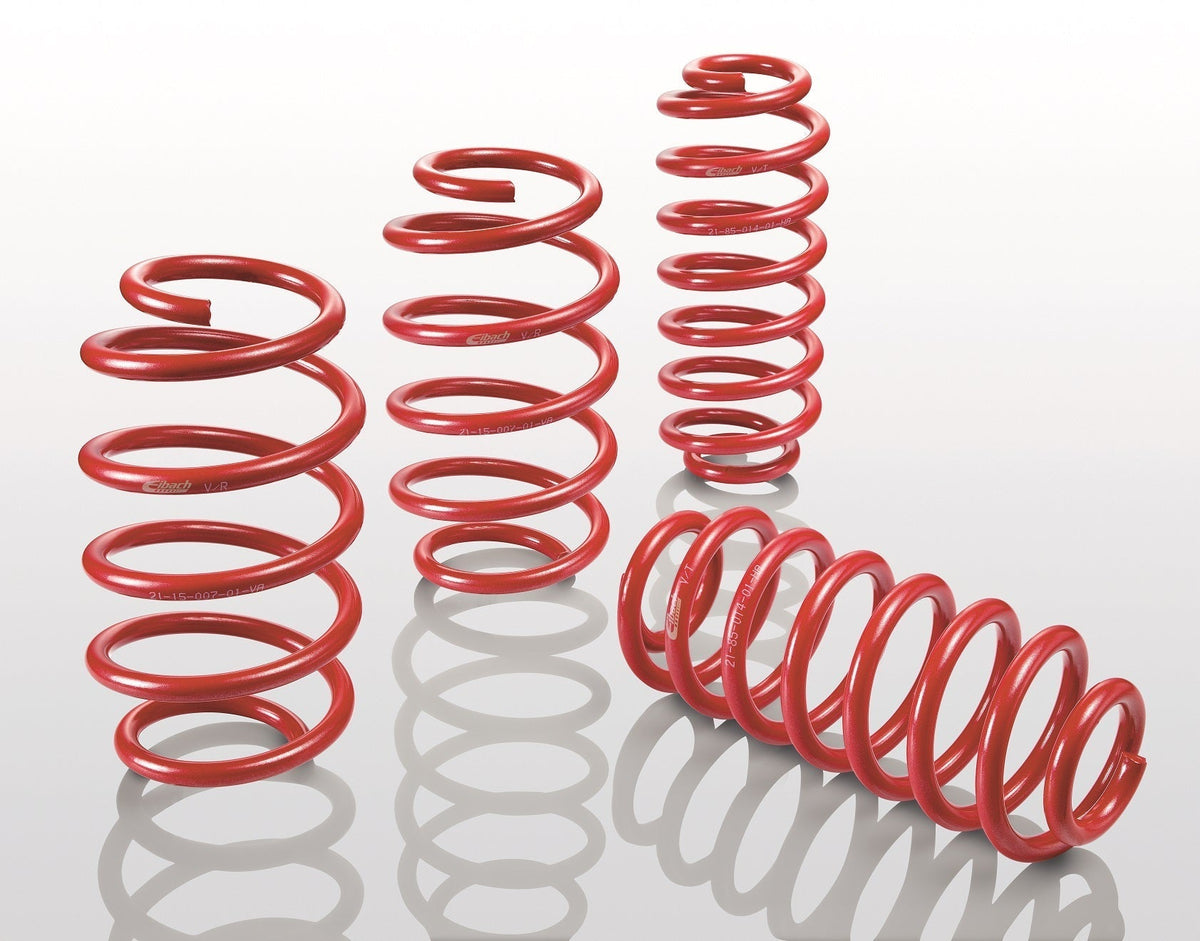

Eibach Sportline Lowering Springs – BMW 1 Series E81 / E87
Give your BMW 1 Series E81 or E87 a more aggressive stance and a more performance-focused suspension setup with the Eibach Sportline Lowering Spring Kit.
Sportline is Eibach’s more aggressive lowering spring range, offering a greater drop than the Pro-Kit while retaining progressive spring characteristics and compatibility with suitable factory dampers.
Eibach part number:
E20-20-013-01-22
Approximate Lowering
Eibach specifies approximately:
- Front: 45–50mm
- Rear: 35mm
These figures are measured against vehicles with standard, non-sport suspension.
If your BMW is already equipped with factory-lowered suspension, such as an M Sport setup, the additional lowering achieved will be less than the quoted figures.
Sportline Performance
The Sportline range is designed for drivers wanting a more aggressive combination of stance and handling than the Eibach Pro-Kit.
Key characteristics include:
- Up to approximately 50mm lowering
- Lower centre of gravity
- Progressive spring characteristics
- Reduced body movement
- More direct chassis response
- More aggressive vehicle stance
- Designed for use with suitable factory dampers
Eibach describes Sportline as its more sporting spring option, with a greater emphasis on handling response and appearance.
Compatibility – Please Check Carefully
Eibach E20-20-013-01-22 is intended for selected BMW 1 Series E81 and E87 petrol applications rather than every E81/E87.
Application listings for this part number include:
BMW 1 Series E81:
- 116i
- 118i
- 120i
BMW 1 Series E87:
- 116i
- 118i
- 120i
Individual engine outputs and production dates can vary, so the exact vehicle should still be checked against Eibach application data before ordering. Published application data for this part number covers E81/E87 petrol variants in the 85–125kW range.
Maximum Axle Loads
This kit is specified for vehicles with maximum permissible axle loads of:
- Front axle: 895kg
- Rear axle: 1060kg
Your vehicle must not exceed these limits.
Checking the axle weights shown on the vehicle identification plate is particularly important because Eibach offers multiple Sportline kits for the E81/E87 platform.
Difference Between -01-22 and -02-22
There are two similar Eibach Sportline applications for the BMW E81/E87.
E20-20-013-01-22:
- Maximum front axle load: 895kg
- Maximum rear axle load: 1060kg
- Intended for selected lighter petrol applications
E20-20-013-02-22:
- Maximum front axle load: 920kg
- Maximum rear axle load: 1060kg
- Used for selected heavier engine applications
Both are listed with approximately 45–50mm front and 35mm rear lowering, but the front spring specification differs to suit the different axle loads.
This is why the kit should not be selected purely from the E81 or E87 chassis code.
Important Fitment Notes
Eibach lists fitting notes:
- A
- 18
- 20
- 68
Relevant requirements include:
- For vehicles without self-levelling / level control
- Excludes four-wheel-drive vehicles
- Factory-lowered cars achieve less additional lowering
- Increased axle loads associated with towing must be considered
- Wheel alignment should be checked after installation
- Installation by a suitably qualified workshop is recommended
Eibach also recommends sport dampers when using Sportline springs where appropriate, particularly when existing OE dampers are worn or have covered significant mileage.
Progressive Spring Design
Sportline springs use progressive characteristics, allowing the effective spring response to increase as suspension loading rises.
This helps provide a usable road setup during normal driving while giving increased support during harder cornering, braking and direction changes.
Factory Damper Compatibility
Eibach lists Sportline springs as suitable for use with stock dampers, subject to the condition and application of the original suspension.
Existing dampers should always be inspected when the springs are installed.
For cars with worn dampers or where a more performance-focused setup is required, matched sport dampers may be worth considering.
Spring Identification
The individual spring references for E20-20-013-01-22 are:
- Front: F21-20-013-01-VA
- Rear: F21-20-013-01-HA
Vehicle Fitment Summary
Eibach part number:
E20-20-013-01-22
Compatible chassis:
- BMW E81 1 Series
- BMW E87 1 Series
Selected applications include:
- 116i
- 118i
- 120i
Approximate lowering:
- Front: 45–50mm
- Rear: 35mm
Maximum axle loads:
- Front: 895kg
- Rear: 1060kg
Restrictions:
- Vehicles without level control
- Excludes four-wheel-drive models
- Exact engine, production date and axle loads must be confirmed
If there is any doubt over compatibility, please contact The Rosso Corsa Collective with your registration, exact model and axle-load figures before ordering.
Professional Installation Recommended
Professional installation is recommended.
Following installation, the vehicle should receive a full wheel alignment to ensure correct geometry, handling and tyre wear.
