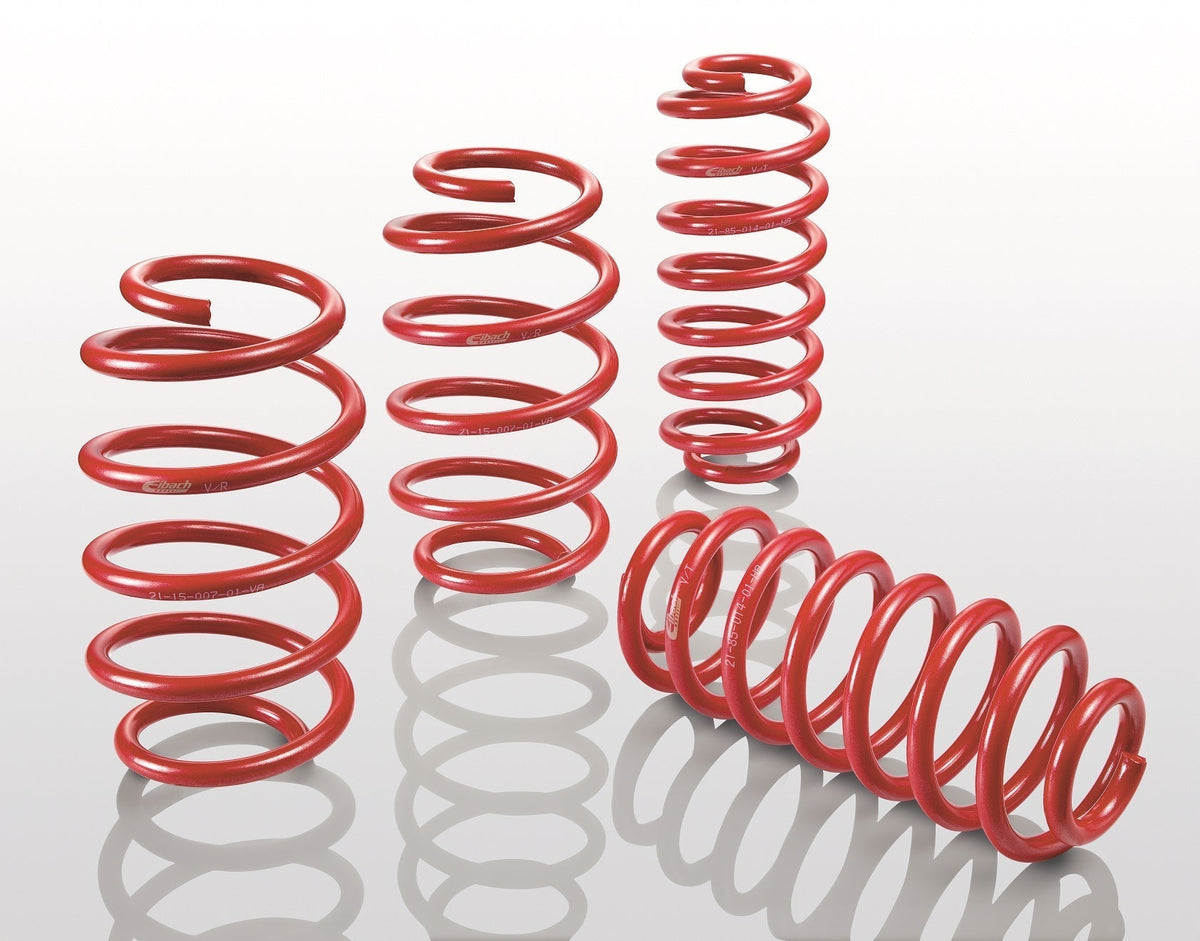

Eibach Sportline BMW 1er (E81/E87) (E20-20-013-02-22)

Eibach Sportline Lowering Springs – BMW 1 Series E81 / E87

Give your BMW 1 Series a more aggressive stance and a more performance-focused chassis setup with the Eibach Sportline lowering spring kit.

Eibach Sportline sits below the Pro-Kit in terms of ride height, offering a more substantial drop and firmer, more sporting setup for drivers who prioritise handling response and appearance while retaining a conventional spring and damper layout.

Eibach part number:

E20-20-013-02-22

Approximate Lowering

Eibach quotes approximately:

• Front: 45-50mm
• Rear: 35mm

These lowering figures are measured from standard, non-sport suspension height. Cars already fitted with factory-lowered suspension, such as certain M Sport models, will achieve less additional lowering because they already sit lower from the factory.

Sportline Performance

The Sportline range is designed to provide a more aggressive setup than the Eibach Pro-Kit, combining increased spring rates with a lower centre of gravity and progressive spring characteristics.

Potential benefits include:

• More aggressive lowered stance
• Reduced body roll
• Reduced brake dive
• Reduced squat under acceleration
• Improved chassis response
• Increased cornering stability
• Progressive spring characteristics

Compatibility – Please Check Carefully

Eibach E20-20-013-02-22 is not suitable for every BMW E81 or E87.

The verified applications for this specific kit are:

BMW 1 Series E81:

• 130i
• 116d
• 118d
• 120d
• 123d

BMW 1 Series E87:

• 130i
• 116d
• 118d
• 120d
• 123d

The listed application periods are approximately September 2004 to September 2012 for E81 applications and November 2003 to September 2012 for E87 applications, depending on the specific variant.

Do not assume compatibility with petrol models such as the 116i, 118i or 120i simply because the vehicle is an E81 or E87.

If your exact engine is not listed above, please contact The Rosso Corsa Collective before ordering.

Maximum Axle Loads

This kit is specified for vehicles with maximum permissible axle loads of:

• Front axle: 920kg
• Rear axle: 1060kg

Your vehicle must not exceed these limits.

Axle weights can normally be checked on the vehicle identification plate and should be verified when confirming the correct Eibach spring kit.

Important Fitting Restrictions

This application carries Eibach fitting notes A, 18, 20 and 68.

These include:

• Suitable only for vehicles without levelling control
• Not suitable for four-wheel-drive vehicles
• Vehicles with increased axle loads when towing require additional consideration
• Factory-lowered vehicles will achieve less additional lowering than the quoted figures

Eibach also recommends checking vehicle-specific approval documentation and confirming that the supplied components correspond with the approved application before installation.

Progressive Spring Design

Eibach Sportline springs use a progressive spring design, allowing the spring characteristics to change through their travel.

This helps provide a balance between everyday compliance and greater support as suspension loading increases during more demanding driving.

Designed to Work with OE Dampers

Eibach states that Sportline springs can be used with original shock absorbers unless the application-specific fitting notes state otherwise.

Existing dampers should always be inspected during installation.

Worn or tired dampers may significantly reduce the effectiveness of the suspension upgrade and should be replaced where necessary.

For a more performance-focused setup, shortened or uprated dampers may also be worth considering.

Spring Identification

The individual spring markings supplied within this kit are:

• Front: F21-20-013-02-VA
• Rear: F21-20-013-01-HA

Vehicle Fitment Summary

Compatible chassis:

• BMW E81 1 Series
• BMW E87 1 Series

Compatible engines:

• 130i
• 116d
• 118d
• 120d
• 123d

Maximum axle loads:

• Front: 920kg
• Rear: 1060kg

Approximate lowering:

• Front: 45-50mm
• Rear: 35mm

Not suitable for:

• Four-wheel-drive models
• Vehicles with levelling control
• E81/E87 engine variants not specifically covered by this part number

If there is any doubt over fitment, please contact us with your registration, exact model and axle weights before ordering.

Professional Installation Recommended

Professional installation is recommended.

Following installation, the vehicle should receive a full wheel alignment to ensure correct geometry, handling and tyre wear.
