HSD MonoPro Coilovers BMW 1 Series E81 E87 Hatch 04-13
Tax included. Shipping calculated at checkout
HSD MonoPro Coilovers – BMW 1 Series E81 / E87 Hatch 2004-2013
Upgrade the suspension of your BMW 1 Series E81 or E87 with HSD MonoPro Coilovers, developed for drivers who want a more performance-focused suspension setup for fast-road, trackday and motorsport use.
The MonoPro range sits above the Dualtech in HSD’s lineup, using high-pressure monotube damper technology for improved control and a more focused suspension response.
HSD part number:
HSD8-MP-BM15
Available Spring Rates
This application is available in two spring-rate configurations.
Default Setup
- Front: 8kg/mm
- Rear: 9kg/mm
This is the more versatile option, providing a strong balance between performance and compliance for mixed road and track use.
Track Pack
- Front: 10kg/mm
- Rear: 12kg/mm
The Track Pack is the firmer option, aimed at drivers wanting greater chassis support and a more track-focused setup. HSD describes this as being specified to provide a strong balance of performance and compliance for demanding circuit-style use.
High-Pressure Monotube Dampers
The MonoPro uses high-pressure monotube damper construction rather than the twin-tube design used in the Dualtech range.
HSD positions the MonoPro as the more performance-orientated option, with increased damper control and load capability. On MacPherson strut applications, HSD also uses an inverted damper design to increase strength.
Adjustable Damping
The MonoPro features adjustable damping, allowing the suspension response to be tailored around:
- Road conditions
- Tyre choice
- Driver preference
- Vehicle setup
- Fast-road use
- Track conditions
This allows the suspension to be softened for road driving or made firmer for more demanding track use.
Adjustable Ride Height
Ride height is adjustable, allowing the car to be set up around:
- Preferred stance
- Wheel and tyre fitment
- Arch clearance
- Centre of gravity
- Chassis balance
Any lowered setup should retain sufficient suspension travel and tyre clearance for safe use.

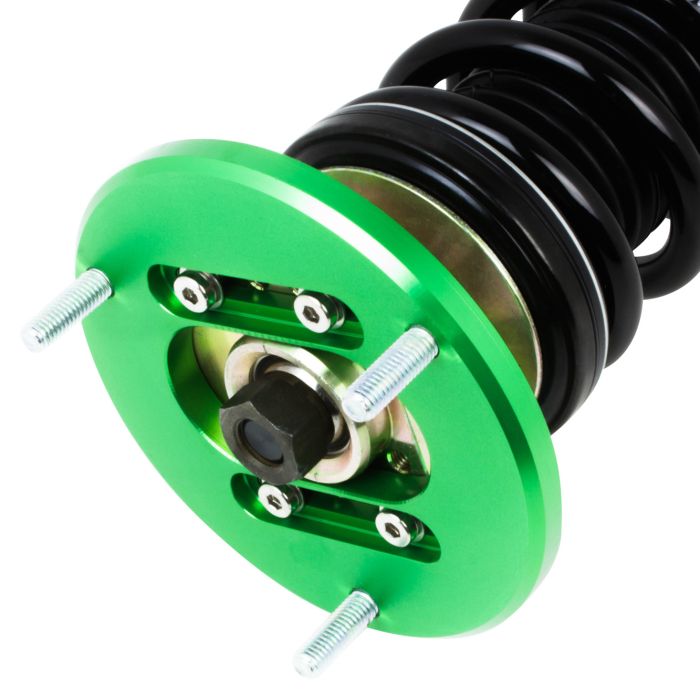

Front Camber Adjustment
HSD lists front camber adjustment as part of the MonoPro specification for this E81/E87 application.
This provides additional flexibility when setting up wheel alignment and front-end geometry, particularly for performance and track-focused builds.
BMW E81 / E87 Compatibility
HSD states that this kit is compatible with all standard BMW 1 Series E81 and E87 models.
Listed fitments include:
- BMW E81 / E87 116i
- BMW E81 / E87 118i
- BMW E81 / E87 120i
- BMW E81 / E87 125i
- BMW E81 / E87 128i
- BMW E81 / E87 130i
- BMW E81 / E87 135i
- BMW E81 / E87 135is
- BMW E81 / E87 116d
- BMW E81 / E87 118d
- BMW E81 / E87 120d
- BMW E81 / E87 123d
HSD markets this application specifically as the BMW 1 Series E81/E87 Hatch 2004-2013 kit.
Designed for Performance Use
The MonoPro is particularly well suited to:
- Fast-road driving
- Track days
- Clubsport builds
- Performance-focused daily cars
- Higher-grip tyre setups
- Drivers wanting greater suspension adjustability
- Cars requiring more aggressive geometry settings
Compared with the Dualtech, the MonoPro places more emphasis on performance and chassis control.

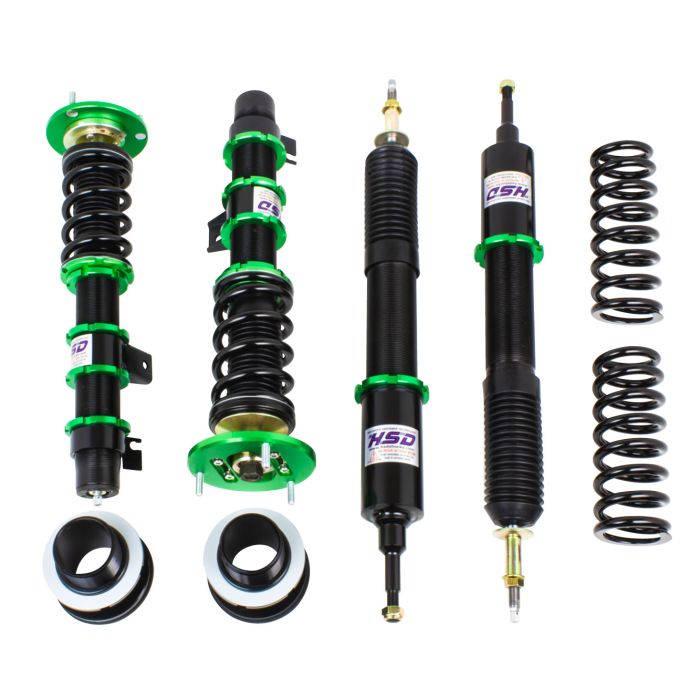

What's Included
HSD lists the kit as including:
- 4 x HSD MonoPro coilovers
- 2 x C spanners
- Fitting instructions
- 2 x HSD stickers
Vehicle Fitment Summary
HSD part number:
HSD8-MP-BM15
Vehicle:
- BMW 1 Series E81 Hatch
- BMW 1 Series E87 Hatch
Model years:
- 2004-2013
Default spring rates:
- Front: 8kg/mm
- Rear: 9kg/mm
Track Pack spring rates:
- Front: 10kg/mm
- Rear: 12kg/mm
Adjustment:
- Ride height
- Damping
- Front camber
Damper design:
- High-pressure monotube
If you're unsure whether this kit is suitable for your exact BMW specification, please contact The Rosso Corsa Collective before ordering.
Professional Installation Recommended
Professional installation is recommended.
Following installation, the vehicle should receive a full wheel alignment and geometry setup to ensure correct handling, tyre wear and suspension performance.
Where front camber adjustment is used, the geometry should be set according to the car’s intended road or track use.
