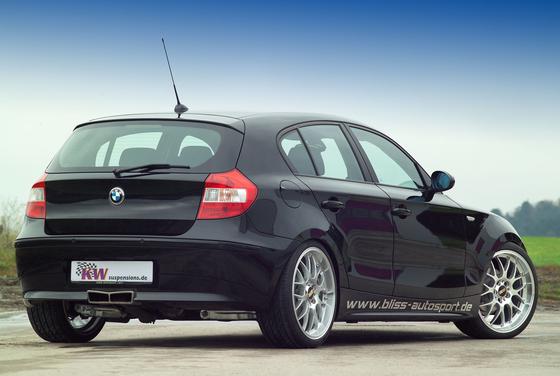

KW Coilover suspension V1 inox - BMW 1 Series E81 / E82 / E87
Tax included. Shipping calculated at checkout
KW Variant 1 Coilovers – BMW 1 Series E81 / E82 / E87
Upgrade the suspension of your BMW 1 Series with KW Variant 1 Coilovers, combining individually adjustable ride height with factory-calibrated damping and KW’s corrosion-resistant INOX-LINE stainless-steel construction.
The KW V1 is designed for drivers who want a premium height-adjustable suspension system without needing to manually tune the dampers.
KW part number:
10220039
Factory-Set Damping
The KW Variant 1 uses a fixed damping setup developed and pre-configured by KW for the intended vehicle application.
This makes the V1 particularly suitable for drivers who want:
- Adjustable ride height
- Improved chassis control
- A sportier road setup
- A pre-engineered spring and damper combination
- No requirement to manually adjust damping
KW describes the V1 as using a sporty yet harmonious factory damping setup designed to balance handling, comfort and everyday usability.
Adjustable Ride Height
Ride height can be adjusted within the vehicle-specific TÜV-tested range.
For BMW E81 / E87 applications:
- Front lowering: approximately 35–65mm
- Rear lowering: approximately 35–65mm
For BMW E82 Coupe applications:
- Front lowering: approximately 30–55mm
- Rear lowering: approximately 25–50mm

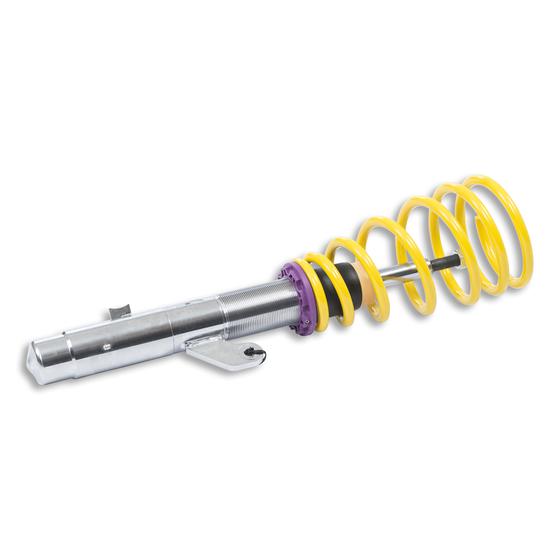

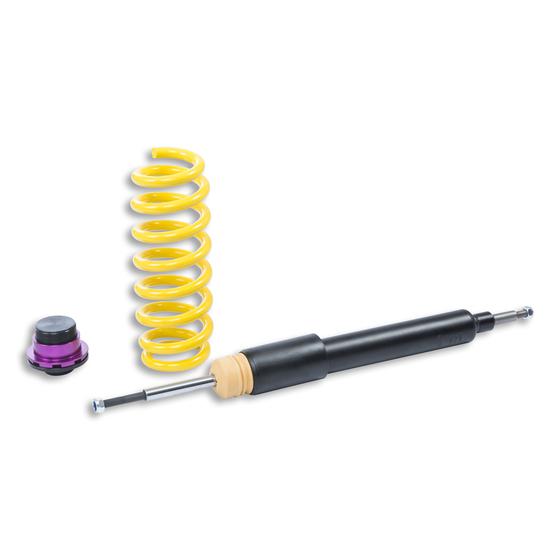

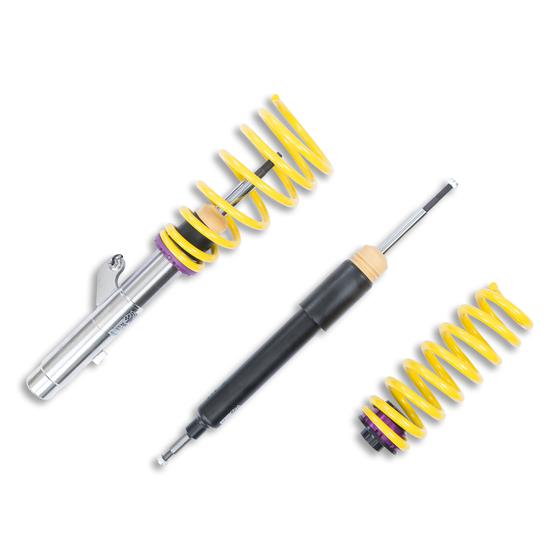

The E81/E87 use a threaded front strut with a separately height-adjustable rear spring arrangement.
This gives you greater control over:
- Vehicle stance
- Wheel and tyre fitment
- Arch clearance
- Centre of gravity
- Overall chassis setup
The suspension should always be adjusted within the approved range and with sufficient clearance and suspension travel.
KW INOX-LINE Stainless Steel
One of the main advantages of the KW Variant 1 is its INOX-LINE stainless-steel construction.
The stainless-steel strut housings are designed to provide long-term corrosion resistance while helping keep the ride-height adjustment mechanism usable over time.
Key features include:
- Stainless-steel INOX-LINE struts
- Corrosion-resistant construction
- Dirt-resistant threaded adjustment
- Height-adjustable spring platforms
- Vehicle-specific spring and damper calibration
Regular cleaning and maintenance is still recommended, particularly on cars used throughout winter.
Designed for Fast-Road Performance
The KW V1 is particularly well suited to:
- Daily-driven performance cars
- Fast-road builds
- Lowered road cars
- Drivers wanting premium suspension without damping adjustment
- Cars requiring a more controlled and purposeful stance
A properly installed V1 setup can help improve:
- Body control
- Steering response
- Cornering stability
- Chassis confidence
- Overall suspension response
Compatibility – Please Check Carefully
KW part number 10220039 is listed for selected rear-wheel-drive BMW 1 Series E8x applications.
Compatible chassis include:
- BMW 1 Series E81 Hatch
- BMW 1 Series E82 Coupe
- BMW 1 Series E87 Hatch
Published application data includes models such as:
- 116i
- 118i
- 120i
- 125i
- 128i
- 130i
- 135i
- 116d
- 118d
- 120d
- 123d
Exact compatibility depends on engine, production date, axle loads and drivetrain, so the kit should not be selected from chassis code alone.
E81 / E87 Fitment Limits
For BMW E81 and E87 applications:
- Maximum front axle load: 920kg
- Maximum rear axle load: 1060kg
- Front lowering: 35–65mm
- Rear lowering: 35–65mm
These listings cover rear-wheel-drive cars and include a broad range of petrol and diesel variants.
E82 Coupe Fitment Limits
For BMW E82 Coupe applications:
- Maximum front axle load: 945kg
- Maximum rear axle load: 1070kg
- Front lowering: 30–55mm
- Rear lowering: 25–50mm
The E82 has different approved lowering and axle-load limits from the E81/E87 hatch applications despite using the same KW kit number.
Important Fitment Restrictions
This application is for rear-wheel-drive vehicles and should not be assumed suitable for xDrive models.
KW also notes that wheel spacers may be required with certain original wheel and tyre combinations to achieve sufficient clearance between the wheel and suspension components.
Before ordering, please confirm:
- Exact chassis
- Engine variant
- Production year
- Front axle load
- Rear axle load
- Rear-wheel-drive configuration
- Wheel and tyre specification
If you're unsure whether KW 10220039 is correct for your BMW, contact The Rosso Corsa Collective with your registration or vehicle details and we can help confirm fitment.
KW V1 vs V2 & V3
KW V1:
- Adjustable ride height
- Factory-set damping
- INOX-LINE stainless-steel construction
KW V2:
- Adjustable ride height
- Adjustable rebound damping
KW V3:
- Adjustable ride height
- Independently adjustable rebound and compression damping
The V1 is therefore ideal for drivers who want KW build quality and ride-height adjustment without the additional setup involved with adjustable damping.

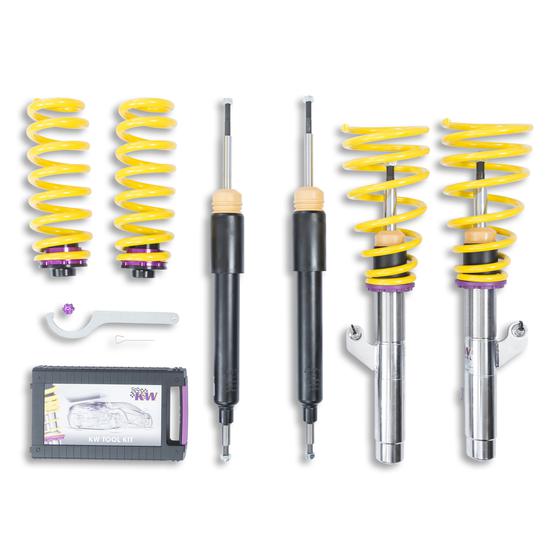

Product Image & Configuration Note
Product images are generic and are intended for illustration purposes only.
The exact components supplied can vary depending on vehicle application, including:
- Spring configuration
- Damper layout
- Rear height-adjustment components
- Mounting hardware
If you have specific requirements or want confirmation of the exact kit configuration, please contact The Rosso Corsa Collective before ordering.
Professional Installation Recommended
Professional installation is recommended.
Following installation, the vehicle should receive a full wheel alignment and geometry setup to ensure correct handling, tyre wear and suspension performance.
Wheel and tyre clearance should also be checked throughout the full steering and suspension range.
