KW Coilover suspension V2 inox (incl. deactivation for electronic dampers) - Mini Cooper F56 (For cars with EDC)

KW V2 Coilovers with Electronic Damper Deactivation – MINI Cooper F56

The KW V2 Coilovers for the MINI Cooper F56 are a premium suspension upgrade designed for drivers who want adjustable ride height combined with manually adjustable rebound damping.

This version is intended for F56 MINI models equipped with factory Dynamic Damper Control and includes the required electronic damper deactivation solution, allowing the original electronically controlled dampers to be replaced without leaving the vehicle with suspension-related warning messages.

With KW’s INOX-LINE stainless-steel construction, vehicle-specific spring and damper tuning and adjustable rebound damping, the V2 provides an excellent balance between everyday usability, improved body control and increased setup flexibility.

Why choose KW V2 for your MINI F56?

The F56 MINI already offers an agile and responsive chassis, but upgrading the suspension can improve body control, stance and overall handling consistency.

The KW V2 builds on the V1 by adding adjustable rebound damping.

This allows the suspension response to be fine-tuned around driving style, tyre choice and road conditions while keeping the overall setup simpler than a fully adjustable 2-way coilover.

For owners who want more control than the V1 without moving to the more advanced V3, the V2 sits in a strong middle ground.

Key Features

• KW V2 coilover suspension
• MINI Cooper F56 application
• Suitable for applicable Cooper, Cooper S and JCW models
• Designed for cars with Dynamic Damper Control
• Electronic damper deactivation included
• Adjustable ride height
• 16-click rebound damping adjustment
• Vehicle-specific compression damping
• KW INOX-LINE stainless-steel construction
• Vehicle-specific spring and damper tuning
• Improved body and chassis control
• Designed for road and fast-road use
• Premium KW suspension system

16-Click Adjustable Rebound Damping

The defining feature of the KW V2 is its adjustable rebound damping.

Rebound controls how quickly the suspension extends after being compressed.

The 16-click adjustment allows the driver to fine-tune the suspension response to suit different road conditions and driving preferences.

Increasing rebound damping can provide stronger body control and a more settled response during braking, cornering and changes of direction.

Reducing rebound can allow the suspension to extend more freely and provide greater compliance over rougher road surfaces.

Vehicle-Specific Compression Damping

Unlike the KW V3, the V2 does not provide independent compression adjustment.

Compression damping is pre-configured by KW for the vehicle application.

This keeps the suspension relatively straightforward to set up while still giving the driver meaningful control over rebound behaviour.

For road and fast-road use, this provides a useful balance between adjustability and simplicity.

Electronic Damper Deactivation Included

This version of the KW V2 is intended specifically for MINI F56 models equipped with factory Dynamic Damper Control.

When the original electronically controlled dampers are replaced with conventional KW V2 dampers, the factory electronic damping function can no longer operate.

The included deactivation solution is designed to prevent the vehicle from continuing to expect signals from the original dampers and helps avoid suspension-related warning messages.

Once converted, damping adjustment is carried out manually using the KW rebound adjusters rather than through the original MINI electronic damper settings.

Adjustable Ride Height

The KW V2 allows the ride height of the MINI F56 to be adjusted at both the front and rear.

This allows owners to:

• Reduce arch gap
• Lower the centre of gravity
• Fine-tune front-to-rear stance
• Adjust ride height around wheel and tyre fitment
• Improve overall appearance
• Balance stance with usable suspension travel

For performance-focused builds, ride height should be selected around suspension travel, geometry and tyre clearance rather than simply setting the car as low as possible.

KW INOX-LINE Stainless-Steel Construction

The KW V2 uses KW’s INOX-LINE stainless-steel construction.

This provides strong corrosion resistance and helps keep the threaded ride-height adjustment areas serviceable over the long term when correctly maintained.

For MINI models used throughout the year in UK conditions, this is a valuable advantage.

Regular cleaning is still recommended, particularly during winter when moisture, dirt and road salt can build up around the suspension.

MINI F56 Suspension Upgrade

The F56 platform responds particularly well to suspension improvements because of its compact dimensions and naturally responsive chassis.

The KW V2 can work particularly well alongside upgrades such as:

• Performance tyres
• Lightweight wheels
• Uprated suspension bushes
• Adjustable suspension arms
• Chassis bracing
• Upgraded anti-roll bars
• Performance brakes
• Fast-road wheel alignment

For Cooper S and John Cooper Works models in particular, improved suspension control can help make better use of the available performance and tyre grip.

KW V1 vs KW V2

The KW V1 and V2 both provide adjustable ride height and use premium KW construction.

The main difference is damping adjustment.

The V1 uses fixed vehicle-specific damping.

The V2 adds manually adjustable rebound damping.

For owners who want a straightforward suspension upgrade with no need to tune damper settings, the V1 is the simpler option.

For drivers who want more control over ride and chassis response, the V2 provides additional flexibility.

KW V2 vs KW V2 Comfort

The standard V2 and V2 Comfort both provide adjustable ride height and rebound damping.

The main difference is their overall suspension calibration.

The standard V2 has a sportier road and fast-road focus.

The V2 Comfort places greater emphasis on ride quality and compliance.

For owners who want a sharper and more performance-oriented suspension feel, the standard V2 is likely to be the better choice.

For drivers who prioritise everyday comfort, the V2 Comfort may be more suitable.

KW V2 vs KW V3

The KW V2 provides adjustable rebound damping while compression remains pre-set.

The KW V3 adds independent compression adjustment.

This gives the V3 significantly more tuning potential, particularly for drivers who want to refine chassis behaviour in more detail.

For road and fast-road use, the V2 offers a strong balance between performance and simplicity.

For more demanding driving or occasional track use, the V3 may be more appropriate.

KW V2 vs Factory Dynamic Damper Control

The factory MINI Dynamic Damper Control system allows the suspension characteristics to be altered electronically from inside the car.

The KW V2 takes a different approach.

Rather than using electronic preset modes, the V2 gives the driver direct manual control over rebound damping.

This allows the suspension to be configured more specifically around the vehicle and driver.

The trade-off is that the original electronic damper functionality is removed once the KW V2 and cancellation system are installed.

Road & Fast-Road Use

The KW V2 is particularly well suited to:

• Daily-driven MINI F56 models
• MINI Cooper S models
• MINI John Cooper Works models
• Fast-road builds
• Cars running performance tyres
• Owners wanting adjustable damping
• Weekend and enthusiast-driven MINIs
• Drivers wanting improved stance and chassis control

For regular circuit use or more advanced chassis tuning, the KW V3 or Clubsport range may be more appropriate.

Professional Installation & Alignment

Professional installation is strongly recommended for the KW V2.

Because the original electronic dampers are being removed, the cancellation components should be installed correctly alongside the mechanical suspension components.

Once fitted, the MINI should receive a full four-wheel alignment so that toe, camber and other geometry settings can be checked following the change in ride height.

For more performance-focused builds, a specialist fast-road geometry setup can further improve steering response and tyre utilisation.

Maintenance

Although KW’s INOX-LINE stainless-steel construction provides strong corrosion resistance, regular suspension maintenance is still recommended.

The following areas should be periodically cleaned and inspected:

• Threaded ride-height adjustment sections
• Spring platforms
• Rebound adjusters
• Electronic damper cancellation components

Cars used throughout winter should be cleaned more frequently to prevent road salt and contamination accumulating around the suspension.

MINI Cooper F56 Compatibility

This KW V2 application is intended for applicable MINI F56 models equipped with factory Dynamic Damper Control.

It is suitable for relevant F56 variants including:

• MINI Cooper F56
• MINI Cooper S F56
• MINI John Cooper Works F56

Exact fitment can depend on vehicle year, engine, axle loads and suspension specification.

Please confirm your exact MINI model and suspension configuration before ordering.

If your F56 does not have factory electronic dampers, a different KW V2 application is required.

If you're unsure which kit your MINI needs, contact us and we'll help identify the correct application.

What's Included?

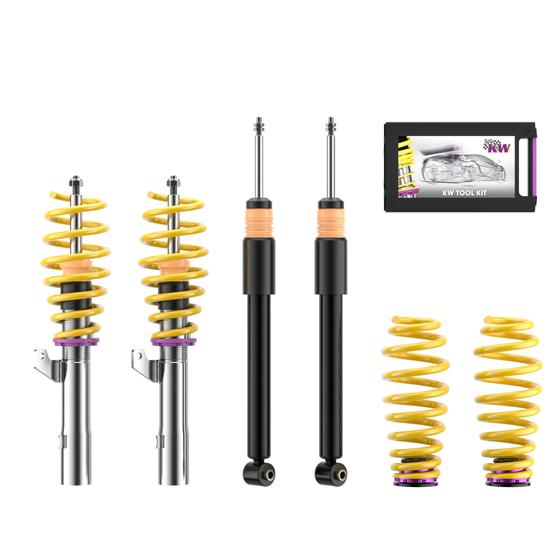

The KW V2 is supplied as a complete vehicle-specific suspension system for the applicable MINI F56, including:

• KW V2 front dampers
• KW V2 rear dampers
• Vehicle-specific springs
• Height-adjustment components
• 16-click rebound damping adjustment
• Electronic damper deactivation components
• Relevant vehicle-specific installation components
