KW Coilover suspension V2 inox - Mini Cooper F66

KW V2 Coilovers – MINI Cooper F66

The KW V2 Coilovers for the MINI Cooper F66 are a premium road and fast-road suspension upgrade designed for drivers who want adjustable ride height combined with manually adjustable rebound damping.

Sitting above the KW V1 in the Street Performance range, the V2 adds 16-click rebound adjustment while retaining KW’s high-quality stainless-steel construction and vehicle-specific spring and damper tuning.

For F66 MINI owners looking for more control over chassis response without moving to a fully adjustable 2-way coilover, the KW V2 provides an excellent balance between everyday usability, sharper handling and useful suspension adjustability.

Why choose KW V2 for your MINI F66?

The latest MINI F66 retains the compact dimensions and responsive character associated with the MINI platform, making it well suited to suspension development.

The KW V2 allows the car to be lowered while also giving the driver control over rebound damping.

This means the suspension can be tailored more closely around driving style, tyre choice and road conditions than a fixed-damping system such as the V1.

For daily-driven and fast-road F66 builds, the V2 offers meaningful adjustability without introducing unnecessary complexity.

Key Features

• KW V2 coilover suspension
• MINI Cooper F66 application
• KW part number 152200AG
• Designed for applicable cars without electronic dampers
• Adjustable ride height
• Approx. 35–55mm front lowering
• Approx. 35–55mm rear lowering
• 16-click rebound damping adjustment
• Vehicle-specific compression damping
• Stainless-steel INOX-LINE construction
• Vehicle-specific spring and damper tuning
• Improved chassis and body control
• Road and fast-road focused setup
• Premium KW suspension system

KW currently lists the F66 V2 with 16-position rebound adjustment and a 35–55mm front and rear lowering range.

16-Click Adjustable Rebound Damping

The defining feature of the KW V2 is its manually adjustable rebound damping.

Rebound controls how quickly the suspension extends after being compressed.

The 16-click adjustment allows the driver to fine-tune suspension behaviour around personal preference and vehicle use.

Increasing rebound damping can provide stronger body control and a more settled response during braking, cornering and changes of direction.

Reducing rebound can allow the suspension to extend more freely and provide increased compliance over rougher road surfaces.

KW specifically positions the V2 for drivers who want to alter pitch and roll behaviour while retaining a road-focused suspension package.

Vehicle-Specific Compression Damping

The KW V2 does not provide manually adjustable compression damping.

Instead, the compression characteristics are developed by KW specifically for the vehicle application.

This keeps the suspension relatively straightforward to set up while still providing useful control through the rebound adjusters.

For road and fast-road use, this offers a strong balance between adjustability and ease of use.

Adjustable Ride Height

The KW V2 allows the ride height of the MINI F66 to be adjusted at both the front and rear.

Current KW application data lists approximately:

• Front lowering: 35–55mm
• Rear lowering: 35–55mm.

This gives owners the ability to:

• Reduce arch gap
• Lower the centre of gravity
• Fine-tune front-to-rear stance
• Adjust ride height around wheel and tyre fitment
• Achieve a more purposeful appearance
• Balance lowering with usable suspension travel

Unlike conventional lowering springs, the final ride height is not limited to one predetermined drop.

For performance-focused builds, ride height should be selected around suspension travel, geometry and tyre clearance rather than simply setting the car as low as possible.

KW INOX-LINE Stainless-Steel Construction

The KW V2 uses stainless-steel INOX-LINE damper construction.

This provides strong corrosion resistance and helps keep the threaded ride-height adjustment areas serviceable over the long term when correctly maintained.

KW specifically highlights stainless-steel construction and corrosion-resistant components as core features of the V2 range.

For cars driven throughout the year in UK conditions, this is particularly useful where moisture, dirt and winter road salt can accelerate corrosion on suspension components.

MINI F66 Suspension Upgrade

The F66 MINI responds well to suspension development, particularly where the aim is to improve body control, steering response and overall stance.

The KW V2 can work particularly well alongside upgrades such as:

• Performance tyres
• Lightweight wheels
• Uprated suspension bushes
• Chassis bracing
• Upgraded anti-roll bars
• Performance braking systems
• Fast-road wheel alignment

For higher-performance F66 models, improving suspension control can help make better use of the available tyre grip and chassis capability.

KW V1 vs KW V2

The KW V1 and V2 both provide adjustable ride height and use premium KW construction.

The main difference is damping adjustment.

The V1 uses fixed vehicle-specific damping.

The V2 adds 16-click rebound adjustment, allowing the driver to fine-tune the way the suspension responds.

For owners who want a simple fit-and-set coilover, the V1 is the more straightforward option.

For drivers who want additional control over ride and chassis behaviour, the V2 is the more flexible choice.

KW V2 vs KW V3

The KW V2 provides adjustable rebound damping while compression remains pre-set by KW.

The KW V3 goes a step further by adding independent compression adjustment.

This gives the V3 significantly more tuning potential for drivers who want to make more detailed changes to chassis behaviour.

For predominantly road and fast-road use, the V2 provides an excellent balance between performance and simplicity.

For more demanding driving or greater suspension tuning capability, the V3 is the more advanced option.

KW V2 vs Lowering Springs

Conventional lowering springs reduce ride height while retaining the original dampers.

The KW V2 replaces both the springs and dampers with a complete matched suspension system.

It also adds:

• Adjustable ride height
• Adjustable rebound damping
• Vehicle-specific damper tuning

This gives considerably greater control over both stance and suspension behaviour than lowering springs alone.

Without Electronic Dampers

This KW V2 application is intended for applicable MINI F66 models without factory electronic dampers.

KW part number 152200AG is currently listed for F66 models without EDC/DDC.

Because the vehicle does not use electronically controlled dampers, no electronic damper cancellation kit is required.

If your F66 is equipped with an electronic damping system, the correct compatible KW application should be confirmed before ordering.

Road & Fast-Road Use

The KW V2 is particularly well suited to:

• Daily-driven MINI F66 models
• Fast-road builds
• Cars running performance tyres
• Owners wanting adjustable ride height
• Drivers wanting manually adjustable damping
• Weekend and enthusiast-driven MINIs
• Cars where everyday usability remains important

For regular track use or significantly more advanced chassis tuning, a V3 or Clubsport system may be more appropriate.

Professional Installation & Alignment

Professional installation is recommended for the KW V2.

Once fitted and the desired ride height has been selected, the vehicle should receive a full four-wheel alignment.

Changing ride height alters suspension geometry and can affect toe, camber and tyre wear.

For more performance-focused road builds, a specialist fast-road geometry setup may further improve steering response and overall chassis balance.

Maintenance

Although KW’s stainless-steel construction provides strong corrosion resistance, regular suspension maintenance is still recommended.

The following areas should be periodically cleaned and inspected:

• Threaded height-adjustment sections
• Spring platforms
• Adjustment collars
• Rebound damping adjusters
• Damper bodies

Cars used throughout winter should be cleaned more frequently to prevent road salt and contamination building up around the suspension.

MINI Cooper F66 Compatibility

This KW V2 application is intended for applicable MINI F66 three-door models without electronic dampers.

KW part number:

152200AG

Current application data lists:

• MINI F66 three-door
• Includes applicable JCW models
• Without electronic dampers
• Front lowering: approximately 35–55mm
• Rear lowering: approximately 35–55mm
• 16-click rebound adjustment.

Exact fitment can depend on engine, model variant, axle loads and suspension specification.

Please confirm your exact MINI details before ordering.

If you're unsure whether this KW V2 kit is correct for your F66, contact us and we'll help identify the correct application.

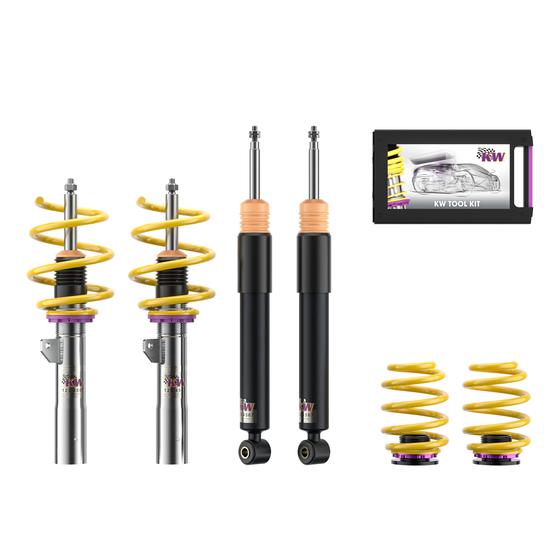

What's Included?

The KW V2 is supplied as a complete vehicle-specific suspension system for the applicable MINI F66, including:

• KW V2 front suspension components
• KW V2 rear dampers
• Vehicle-specific springs
• Height-adjustment components
• 16-click rebound damping adjustment
• Relevant vehicle-specific installation components

Exact kit contents can vary according to the selected vehicle application.
