KW Coilover suspension V3 Clubsport incl. top mounts - BMW 3 Series E92

KW V3 Coilovers with Top Mounts – BMW E92 M3

The KW V3 Coilovers with Top Mounts for the BMW E92 M3 are a premium suspension upgrade for drivers who want adjustable ride height, independent compression and rebound adjustment and additional front-end geometry control.

Combining KW’s INOX-LINE stainless-steel construction with separately adjustable damping and uprated top mounts, the V3 provides significantly more setup flexibility than a fixed-damping or rebound-only coilover system.

For road and fast-road E92 M3 builds that may also see occasional track use, the KW V3 offers an excellent balance between refinement, adjustability and performance.

Why choose KW V3 for your BMW E92 M3?

The E92 M3 already has a capable chassis, but the combination of a high-revving S65 V8, rear-wheel drive and substantial tyre performance means there is plenty to gain from a more advanced suspension setup.

The KW V3 allows compression and rebound damping to be adjusted independently, giving the driver more control over body movement, weight transfer and suspension response.

The addition of uprated top mounts also provides a more performance-focused mounting solution and can increase geometry adjustment depending on the exact kit specification.

This makes the V3 particularly well suited to owners who want a more developed road setup without moving into the significantly more track-focused Clubsport range.

Key Features

• KW V3 coilover suspension
• BMW E92 M3 application
• Top mounts included
• Adjustable ride height
• Independent compression and rebound adjustment
• Vehicle-specific spring and damper tuning
• KW INOX-LINE stainless-steel construction
• Improved body control
• Increased chassis adjustment
• Suitable for road and fast-road use
• Suitable for occasional track use
• Premium KW suspension system

Independent Compression & Rebound Adjustment

The defining feature of the KW V3 is its independent compression and rebound damping control.

Rebound damping controls how quickly the suspension extends after being compressed.

Increasing rebound can provide stronger body control and a more settled response during cornering, braking and directional changes.

Reducing rebound can allow the suspension to react more freely over rougher road surfaces.

Compression damping controls how the damper reacts as the suspension is compressed during braking, acceleration, cornering and surface changes.

Being able to adjust the two separately allows the overall behaviour of the E92 M3 to be tailored much more precisely than with a conventional fixed-damping coilover.

Top Mounts Included

This version of the KW V3 is supplied with upgraded top mounts.

Top mounts form the connection between the suspension strut and the vehicle body and can have a noticeable influence on steering precision and suspension response.

Depending on the exact top-mount specification supplied with the kit, additional camber adjustment may also be available.

This can be particularly beneficial for fast-road and occasional track setups where greater front-end grip and tyre utilisation are priorities.

A full geometry setup is strongly recommended after installation.

Adjustable Ride Height

The KW V3 allows the ride height of the BMW E92 M3 to be adjusted within the approved application-specific range.

This allows owners to:

• Reduce arch gap
• Lower the centre of gravity
• Fine-tune front-to-rear stance
• Adjust the setup around wheel and tyre fitment
• Balance appearance with suspension travel

For performance-focused cars, ride height should be chosen around available suspension travel, tyre clearance and geometry rather than appearance alone.

Lowering the car excessively can reduce usable damper travel and negatively affect chassis behaviour.

KW INOX-LINE Stainless-Steel Construction

The KW V3 uses KW’s INOX-LINE stainless-steel construction.

This provides strong resistance to corrosion and helps keep the threaded ride-height adjustment areas serviceable over the long term.

For cars that continue to see regular road use in UK conditions, this is a valuable advantage.

Regular cleaning is still recommended, particularly during winter when road salt and contamination can accumulate around the suspension.

BMW E92 M3 Suspension Upgrade

The E92 M3 responds well to a complete chassis approach rather than isolated modifications.

The KW V3 can work particularly well alongside upgrades such as:

• Performance or semi-slick tyres
• Uprated suspension bushes
• Adjustable suspension arms
• Chassis bracing
• Upgraded anti-roll bars
• Lightweight wheels
• Performance braking systems
• Performance alignment settings

As tyre grip increases, the extra damping adjustment offered by the V3 becomes increasingly useful.

KW V2 vs KW V3

The KW V2 and V3 both provide adjustable ride height and use KW’s stainless-steel INOX-LINE construction.

The main difference is damping adjustment.

The V2 provides adjustable rebound damping with compression pre-set by KW.

The V3 adds independent compression adjustment, giving the driver significantly greater control over how the car reacts during braking, acceleration and cornering.

For mainly road use where simplicity is important, the V2 remains an excellent option.

For owners who want a more advanced suspension setup with greater tuning potential, the V3 is the more suitable choice.

KW V3 vs KW V3 Clubsport

The standard KW V3 is primarily designed for premium road and fast-road use with enough adjustment to support occasional track driving.

The V3 Clubsport is considerably more track focused.

It uses a more aggressive spring and damper setup and typically includes motorsport-style adjustable top mounts designed around more demanding circuit use.

For a predominantly road-driven E92 M3, the standard V3 will generally provide a better balance between comfort, usability and performance.

For regular track days, high-grip tyres and more aggressive geometry, the V3 Clubsport is the more specialised choice.

Road, Fast-Road & Occasional Track Use

The KW V3 is particularly well suited to:

• Daily-driven E92 M3 models
• Fast-road builds
• Weekend performance cars
• Cars running upgraded tyres
• Owners wanting independent damping adjustment
• Cars seeing occasional track-day use

For more serious circuit use, a Clubsport system may be more appropriate.

EDC Compatibility

Some BMW E92 M3 models are equipped with factory Electronic Damper Control.

Where conventional KW V3 coilovers replace the original electronically controlled dampers, the factory EDC system will no longer control suspension stiffness.

Depending on the exact kit and vehicle specification, an EDC cancellation solution may therefore be required.

Please confirm the exact application before ordering if your E92 M3 is equipped with factory EDC.

Professional Installation & Alignment

Professional installation is strongly recommended for the KW V3.

Once fitted, the vehicle should receive a full four-wheel alignment so that toe, camber and other geometry settings can be checked following the change in ride height.

Where the supplied top mounts provide additional geometry adjustment, this should be configured by a competent alignment specialist.

For more performance-focused E92 M3 builds, corner weighting may also be worthwhile.

Maintenance

Although KW’s INOX-LINE construction offers excellent corrosion resistance, regular maintenance is still important.

The following areas should be kept clean and periodically inspected:

• Threaded ride-height adjustment sections
• Spring platforms
• Compression adjusters
• Rebound adjusters
• Top mounts

Regular cleaning helps keep the suspension adjustable and performing consistently over time.

BMW E92 M3 Compatibility

This KW V3 coilover kit is intended for applicable BMW E92 M3 models.

Exact fitment can vary depending on:

• Vehicle year
• Factory EDC specification
• Axle loads
• Top-mount configuration

Please confirm your exact vehicle details before ordering.

If you're unsure whether this KW V3 kit is correct for your E92 M3, contact us and we'll help confirm the correct application.

What's Included?

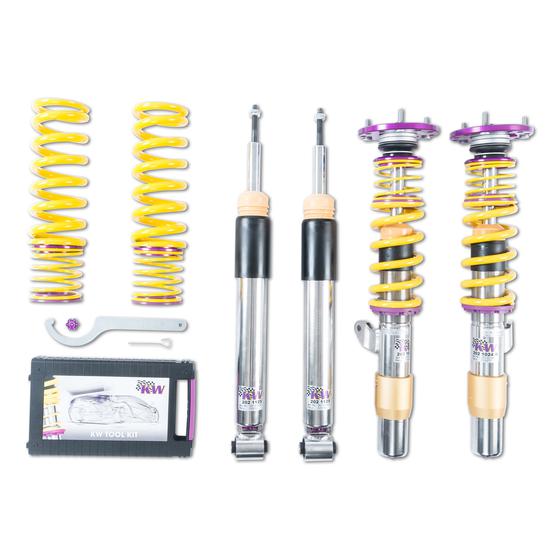

The KW V3 is supplied as a complete vehicle-specific suspension system for the applicable BMW E92 M3, including:

• KW V3 front dampers
• KW V3 rear dampers
• Vehicle-specific springs
• Height-adjustment components
• Compression damping adjustment
• Rebound damping adjustment
• Uprated top mounts
• Relevant installation components

Exact contents can vary depending on the selected application.
