KW V3 Clubsport Coilovers with Top Mounts – MINI Cooper F66
The KW V3 Clubsport Coilovers for the MINI Cooper F66 are a track-focused suspension upgrade designed for drivers who want greater damping control, increased front-end geometry adjustment and a more performance-oriented chassis setup.
Featuring independently adjustable compression and rebound damping, adjustable ride height and adjustable top mounts, the V3 Clubsport brings motorsport-derived suspension technology to the latest-generation MINI platform.
For F66 owners running high-grip tyres, more aggressive alignment settings or regular track days, the KW V3 Clubsport offers a substantial step beyond conventional road-focused coilovers.
Why choose KW V3 Clubsport for your MINI F66?
The MINI F66 retains the compact dimensions and agile character that make the platform well suited to chassis development.
The V3 Clubsport is designed around more demanding use than the standard V3, combining detailed damping adjustment with a more performance-focused spring and damper setup.
Independent compression and rebound adjustment allows the suspension to be tailored around tyre choice, road or circuit conditions, vehicle setup and driver preference.
The included adjustable top mounts also provide additional geometry flexibility, making the kit especially useful for drivers wanting more front-end grip and a more focused alignment setup.
Key Features
- KW V3 Clubsport coilover suspension
- MINI Cooper F66 application
- Adjustable top mounts included
- Adjustable ride height
- Independent compression and rebound adjustment
- Track-focused spring and damper tuning
- Increased geometry adjustment
- KW premium construction
- Improved body and chassis control
- Designed for high-grip tyre setups
- Suitable for serious fast-road and track use
- Motorsport-derived suspension technology
Independent Compression & Rebound Adjustment
The KW V3 Clubsport uses a 2-way adjustable damper system.
Compression and rebound damping can be adjusted independently, allowing different areas of chassis behaviour to be fine-tuned without relying on one combined adjustment.
Rebound controls how quickly the suspension extends after being compressed.
Increasing rebound can provide stronger body control and a more settled response during braking, cornering and changes of direction.
Reducing rebound can allow the suspension to extend more freely and provide greater compliance over uneven surfaces.
Compression damping influences how the suspension reacts as load is applied under braking, acceleration, cornering and changes in road or circuit surface.
Together, these adjustments provide substantially greater tuning potential than a fixed-damping or rebound-only suspension system.
Adjustable Top Mounts
One of the main advantages of the KW V3 Clubsport is the inclusion of adjustable top mounts.
These provide additional front suspension geometry adjustment compared with the standard factory top mounts.
On applicable F66 installations, this allows increased negative camber to be introduced.
Additional negative camber can help maintain a more favourable tyre contact patch during hard cornering and can contribute to:
- Improved front-end grip
- Sharper turn-in
- Better tyre utilisation
- Increased geometry adjustment
- Greater flexibility for track-focused setups
A professional alignment is strongly recommended after installation.
Adjustable Ride Height
The KW V3 Clubsport allows the ride height of the MINI F66 to be adjusted within the approved application-specific range.
This gives owners the ability to:
- Reduce arch gap
- Lower the centre of gravity
- Fine-tune front-to-rear stance
- Adjust ride height around wheel and tyre fitment
- Balance stance with suspension travel
- Set the car up around performance geometry
For track-focused builds, ride height should be selected around usable suspension travel, geometry and tyre clearance rather than appearance alone.
MINI F66 Track Suspension
The F66 platform can benefit significantly from a more focused suspension setup when tyre grip and driving demands increase.
The V3 Clubsport can work particularly well alongside upgrades such as:
- Performance or semi-slick tyres
- Lightweight wheels
- Uprated suspension bushes
- Adjustable suspension arms
- Upgraded anti-roll bars
- Chassis bracing
- Performance braking systems
- Track-focused wheel alignment
For cars seeing frequent track use, suspension, tyres and alignment should ideally be developed together rather than treated as isolated upgrades.
KW V3 vs KW V3 Clubsport
The standard KW V3 and V3 Clubsport both provide independently adjustable compression and rebound damping.
The main difference is their intended use and overall setup.
The standard V3 is primarily designed for road and fast-road use, with enough adjustment for occasional circuit driving.
The V3 Clubsport is more track focused, with a more performance-oriented spring and damper setup and adjustable top mounts for increased geometry control.
For a predominantly road-driven F66, the standard V3 may be the better balance.
For regular track use, high-grip tyres and more aggressive alignment, the V3 Clubsport is the more specialised option.
KW V3 Clubsport vs ST XTA
The ST XTA provides adjustable ride height, rebound damping and adjustable top mounts.
The KW V3 Clubsport takes things significantly further by adding independent compression adjustment and a more track-focused spring and damper setup.
For fast-road and occasional track use, the ST XTA offers strong value.
For more serious circuit driving and greater damping control, the V3 Clubsport is the more advanced suspension system.
Road, Fast-Road & Track Use
The KW V3 Clubsport is particularly well suited to:
- Performance-focused MINI F66 builds
- Fast-road cars
- Cars running high-grip tyres
- Semi-slick tyre setups
- Owners wanting adjustable camber
- Drivers wanting independent damping adjustment
- Weekend and enthusiast-driven MINIs
- Regular track-day use
For mainly daily road use, the standard V2 or V3 may be more appropriate.
Professional Installation, Alignment & Corner Weighting
Professional installation is strongly recommended for the KW V3 Clubsport.
Once fitted, the vehicle should receive a full four-wheel alignment.
The adjustable top mounts allow the front geometry to be configured around the intended use of the car.
For track-focused builds, corner weighting may also be worthwhile.
Changes to damping should ideally be made methodically and recorded so that the effect on vehicle behaviour can be properly evaluated.
Maintenance
Regular maintenance is important on any performance-focused coilover system.
The following areas should be periodically cleaned and inspected:
- Threaded height-adjustment sections
- Spring platforms
- Compression adjusters
- Rebound adjusters
- Adjustable top mounts
- Damper bodies
Cars used on track or throughout winter should be inspected more frequently.
MINI Cooper F66 Compatibility
This KW V3 Clubsport application is intended for applicable MINI F66 models.
Exact fitment can depend on:
- Engine and model variant
- Vehicle year
- Axle loads
- Factory suspension specification
- Electronic damper specification where applicable
Please confirm your exact MINI model and suspension configuration before ordering.
If your F66 uses electronically controlled dampers, the correct compatible application and any required electronic damper solution should be confirmed before purchase.
If you're unsure which KW V3 Clubsport kit your MINI needs, contact us and we'll help identify the correct application.

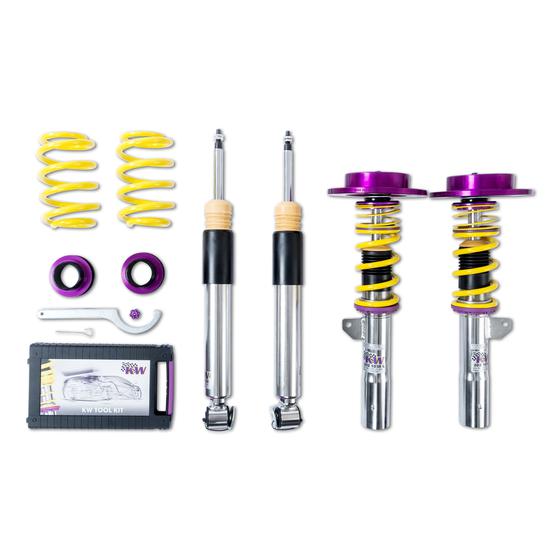

What's Included?
The KW V3 Clubsport is supplied as a complete vehicle-specific suspension system for the applicable MINI F66, including:
- KW V3 Clubsport front suspension components
- KW V3 Clubsport rear dampers
- Vehicle-specific performance springs
- Height-adjustment components
- Adjustable compression damping
- Adjustable rebound damping
- Adjustable top mounts
- Relevant vehicle-specific installation components
Exact kit contents can vary according to the selected vehicle application.
