KW Coilover suspension V3 inox - BMW F87 M2 Incl Competition

KW V3 Coilovers – BMW F87 M2 & M2 Competition

The KW V3 Coilovers for the BMW F87 M2 and M2 Competition are a premium height and damping-adjustable suspension upgrade designed for drivers looking to unlock more from the M2 chassis on the road and during occasional track use.

Featuring independently adjustable compression and rebound damping, adjustable ride height and KW’s corrosion-resistant INOX-LINE stainless-steel construction, the V3 provides significantly greater setup control than a conventional fixed-damping coilover.

Compatible with both the original N55-powered F87 M2 and later S55-powered M2 Competition, the KW V3 is an excellent choice for owners looking for a high-quality fast-road suspension setup without moving to the more track-focused KW Clubsport range.

Why choose KW V3 for your BMW F87 M2?

The F87 M2 already provides an excellent foundation for a performance-focused chassis, but upgrading the suspension allows the car to be tailored more closely around the driver, tyres and intended use.

The KW V3 provides independent control over compression and rebound damping, allowing considerably more detailed suspension tuning than fixed-damping or rebound-only adjustable systems.

This makes it particularly well suited to modified M2 and M2 Competition builds running performance tyres, increased power, upgraded chassis components or more aggressive alignment settings.

For a car that still sees regular road mileage but is expected to perform when driven hard, the V3 offers a strong balance between road refinement and increased chassis control.

Key Features

• KW V3 coilover suspension
• Fits BMW F87 M2
• Fits BMW F87 M2 Competition
• Adjustable ride height
• 15–40mm front lowering range
• 20–45mm rear lowering range
• 16-click rebound damping adjustment
• 12-click compression damping adjustment
• Independent compression and rebound adjustment
• KW INOX-LINE stainless-steel construction
• Vehicle-specific spring and damper setup
• Improved chassis and body control
• Suitable for road, fast-road and occasional track use
• Premium KW suspension system

The 352200BH application is listed with front and rear height adjustment, independently adjustable damping and stainless-steel construction.

Independent Compression & Rebound Adjustment

One of the biggest advantages of the KW V3 is the ability to adjust compression and rebound damping independently.

Rebound damping can be adjusted through 16 clicks and influences how quickly the suspension extends after being compressed.

Increasing rebound can provide greater body control and a more settled response during cornering and changes of direction, while reducing rebound can allow the suspension to react more freely and provide greater compliance.

Compression damping can be adjusted through 12 clicks and influences how the suspension reacts as load is applied during braking, acceleration, cornering and changes in road surface.

Being able to adjust these characteristics separately gives the driver significantly more control over the behaviour of the M2 than a conventional fixed-damping suspension system.

Adjustable Ride Height

The KW V3 provides continuous ride-height adjustment within the approved range for the F87 M2 application.

For this kit, the stated lowering ranges are:

• Front: 15–40mm
• Rear: 20–45mm

The front axle uses threaded strut housings, while the rear retains a separate adjustable spring and damper arrangement.

This allows the stance of the M2 to be tailored around wheel and tyre fitment while also lowering the vehicle's centre of gravity.

For performance-focused cars, ride height should be chosen around suspension travel, geometry and tyre clearance rather than simply setting the car as low as possible.

KW INOX-LINE Stainless-Steel Construction

The KW V3 uses KW’s INOX-LINE stainless-steel construction.

The corrosion-resistant stainless-steel strut housings are particularly beneficial for cars driven throughout the year in UK conditions, helping protect the suspension against moisture, road contamination and corrosion.

Combined with KW's threaded height-adjustment system, the construction is designed to provide long-term durability while allowing the ride height to remain adjustable when correctly maintained.

BMW F87 M2 & M2 Competition Suspension Upgrade

The F87 M2 platform responds particularly well to suspension development, especially as tyre grip and engine performance increase.

The KW V3 can form the foundation of a more complete M2 chassis setup alongside upgrades such as:

• Performance or semi-slick tyres
• Uprated suspension bushes
• Adjustable suspension arms
• Rear subframe upgrades
• Chassis bracing
• Upgraded anti-roll bars
• Performance braking systems
• Performance wheel alignment

Rather than treating individual chassis components separately, suspension, tyres and geometry should ideally be developed together to achieve a balanced setup.

Original M2 & M2 Competition Compatibility

A major advantage of this KW V3 application is compatibility across both versions of the F87 M2.

The kit is suitable for:

• BMW F87 M2 with N55 engine
• BMW F87 M2 LCI
• BMW F87 M2 Competition with S55 engine

Current fitment listings identify KW part number 352200BH for both the original M2 and M2 Competition.

This makes the product particularly useful for customers searching for suspension upgrades across the wider F87 M2 platform rather than a single model variant.

KW V2 vs KW V3

The KW V2 and V3 both provide adjustable ride height and use KW’s premium INOX-LINE stainless-steel construction.

The main difference is damping adjustment.

The V2 provides adjustable rebound damping while compression remains pre-set.

The V3 adds independently adjustable compression damping, giving the driver greater control over how the chassis reacts under braking, acceleration and cornering load.

For predominantly road use where simplicity is important, the V2 is an excellent option.

For drivers who want greater setup flexibility and more control over chassis behaviour, the V3 is the more advanced choice.

KW V3 vs KW V3 Clubsport

The standard KW V3 is primarily designed as a premium road and fast-road suspension system, with enough adjustability to make it suitable for occasional track-day use.

The V3 Clubsport takes a more circuit-focused approach, combining adjustable damping with a more track-orientated suspension setup and adjustable top mounts where specified.

For an F87 M2 or M2 Competition that remains predominantly road driven, the standard V3 offers an excellent balance between performance, adjustability and everyday usability.

For regular track use, high-grip tyres and more aggressive suspension geometry, the V3 Clubsport may be the more appropriate choice.

Road, Fast-Road & Occasional Track Use

The KW V3 is particularly well suited to:

• Daily-driven F87 M2 models
• BMW M2 Competition fast-road builds
• Higher-powered M2 and M2 Competition models
• Cars running performance tyres
• Owners wanting adjustable damping
• Weekend and enthusiast-driven cars
• Occasional track-day use

Its combination of ride-height adjustment and independent damping control allows the suspension to be configured around a much wider range of uses than a fixed-damping coilover.

Professional Installation & Alignment

Professional installation is recommended for the KW V3.

Once fitted, the vehicle should receive a full four-wheel alignment so that toe, camber and other geometry settings can be checked and configured around the new ride height.

For more performance-focused F87 builds, a specialist fast-road or track geometry setup can further improve steering response, tyre utilisation and overall chassis balance.

Corner weighting may also be worthwhile for cars that see regular circuit use.

Maintenance

Although KW’s INOX-LINE stainless-steel construction provides excellent corrosion resistance, regular suspension maintenance is still recommended.

Threaded adjustment areas, spring platforms and damping adjusters should be kept clean, particularly on cars exposed to winter road salt, water and track debris.

Regular inspection helps ensure the ride-height and damping adjusters remain serviceable and the suspension continues to perform consistently.

BMW F87 M2 & M2 Competition Compatibility

This KW V3 coilover kit is intended for applicable BMW F87 M2 and M2 Competition models.

KW part number: 352200BH

Current application data lists:

• BMW F87 M2
• BMW F87 M2 LCI
• BMW F87 M2 Competition
• Front axle load up to 970kg
• Rear axle load up to 1080kg
• Front lowering: 15–40mm
• Rear lowering: 20–45mm

Please confirm your exact vehicle specification before ordering.

If you're unsure whether this KW V3 kit is correct for your M2, contact us and we'll help confirm the correct application.

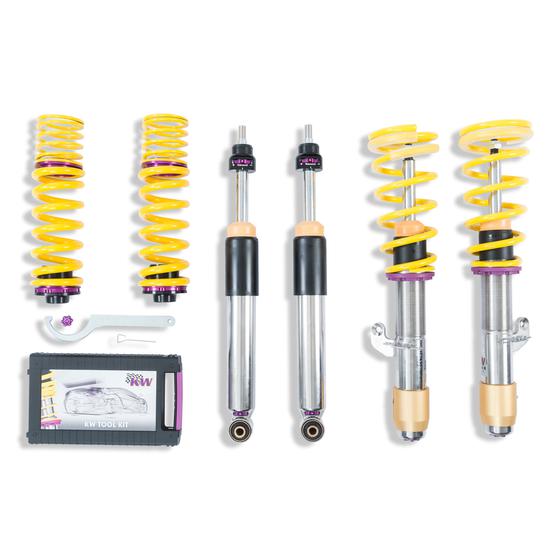

What's Included?

The KW V3 is supplied as a complete vehicle-specific coilover suspension system for the applicable BMW F87 M2 and M2 Competition, including:

• KW V3 dampers
• Vehicle-specific springs
• Height-adjustment components
• Compression damping adjustment
• Rebound damping adjustment
• Relevant installation components

The standard V3 application retains the original top-mount arrangement rather than including Clubsport adjustable top mounts.
