KW V3 Clubsport Coilovers incl. Top Mounts - Toyota GR Supra A90 - 352208CG

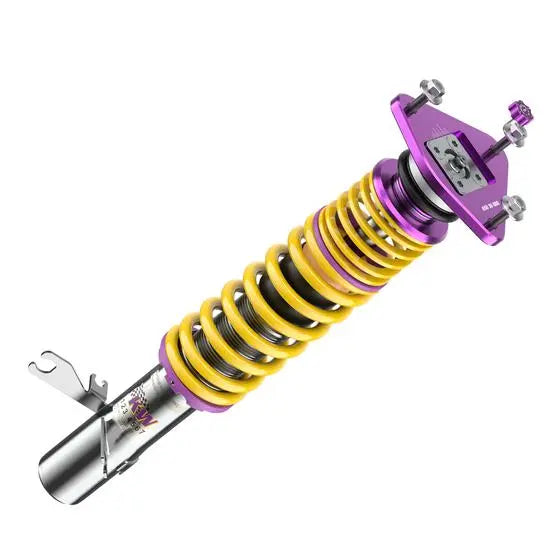

KW V3 Clubsport Coilover Suspension incl. Top Mounts – Toyota GR Supra A90

Take the Toyota GR Supra A90 chassis to a more track-focused level with the KW V3 Clubsport Coilover Suspension Kit.

Designed for drivers who want significantly more control than a conventional road coilover setup, the V3 Clubsport combines independently adjustable rebound and compression damping, linear race springs, stainless steel construction and adjustable front Clubsport top mounts.

Part number: 352208CG

Independent Rebound & Compression Adjustment

The KW V3 Clubsport uses a 2-way adjustable damper system, allowing rebound and compression damping to be adjusted independently.

Adjustment includes:

• 16-click rebound adjustment

• 12-click compression adjustment

• Independent tuning of both damping circuits

This allows the suspension to be fine-tuned around tyre choice, circuit conditions, vehicle setup and driver preference.

Adjustable Ride Height

For the Toyota GR Supra A90 application, the commonly listed lowering range is approximately:

• Front: 20–35mm

• Rear: 20–40mm

Ride height is adjustable at both axles, with threaded front strut housings and separate height-adjustable springs and dampers at the rear.

Adjustable Clubsport Top Mounts

Part number 352208CG includes adjustable KW Clubsport front top mounts.

These allow additional geometry adjustment, including camber adjustment, giving greater control over tyre contact and front-end behaviour during hard cornering.

The top mounts are particularly useful for track-focused setups where additional negative camber may be required to improve tyre utilisation and cornering grip.

Rear Clubsport top mounts are not included with this application.

inox-line Stainless Steel Construction

The V3 Clubsport uses KW’s inox-line stainless steel construction, providing excellent corrosion resistance and long-term durability.

This makes the kit suitable for cars that continue to see regular road use while still offering the adjustability and performance required for demanding circuit use.

Key Features

• KW V3 Clubsport / Clubsport 2-Way coilover suspension

• 16-click rebound adjustment

• 12-click compression adjustment

• Independent rebound and compression control

• Adjustable front Clubsport top mounts included

• Linear race springs

• Height adjustable front and rear

• Approx. 20–35mm front lowering

• Approx. 20–40mm rear lowering

• inox-line stainless steel construction

• Developed for track and fast-road use

• Vehicle-specific spring and damper setup

• Part number: 352208CG

Developed for Track & Fast-Road Use

The Clubsport range is designed to transfer KW’s motorsport technology into a road-legal suspension package suitable for serious track-day use.

Compared with the standard KW V3, the Clubsport version uses a more performance-focused spring and damper setup and adds adjustable front top mounts, giving considerably more scope for chassis and geometry tuning.

This makes it particularly suitable for Supra builds running performance tyres, more aggressive geometry or regular circuit use.

Vehicle Fitment

Suitable for:

• Toyota GR Supra A90 / A91

• Rear-wheel drive

• From 2019 onwards

• Selected 2.0 and 3.0 models

Commonly listed maximum axle loads are approximately:

• Front: 865kg

• Rear: 995kg

Exact vehicle specification and axle weights should always be checked before ordering.

Electronic Damper Note

For vehicles equipped with factory electronic dampers, the original electronic damper system must be deactivated when fitting this kit.

A vehicle-specific KW electronic damper cancellation solution is available separately and is not included with part number 352208CG.

Product Image & Specification Note

Product images are for illustration purposes only and may not show the exact specification supplied.

KW Clubsport kits can vary depending on vehicle specification and application. If you are unsure whether this kit is suitable for your GR Supra, please contact us before ordering so we can confirm compatibility.

Professional Installation Recommended

Professional installation is strongly recommended.

A full four-wheel geometry setup should be carried out after installation and once the final ride height has been selected.

Because this kit includes adjustable front top mounts and independently adjustable damping, a performance-focused alignment and damper setup is particularly worthwhile to get the best from the suspension.
