KW V3 Coilovers - Toyota GR Yaris GXPA16 - 35256023

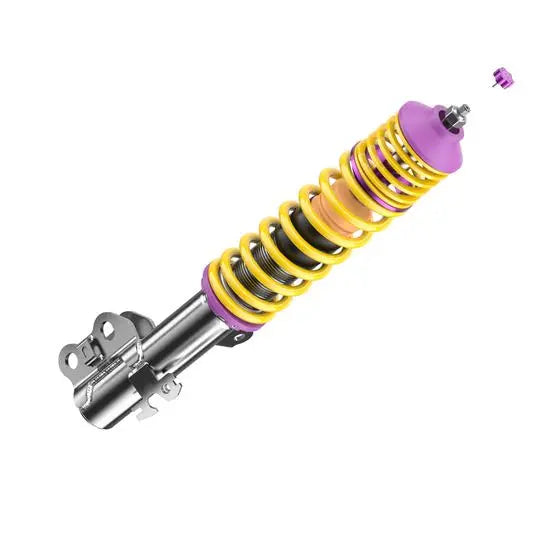

KW V3 Coilover Suspension inox – Toyota GR Yaris – 35256023

Upgrade the Toyota GR Yaris with the KW V3 Coilover Suspension Kit, developed for drivers who want a substantial improvement in chassis control while retaining the adjustability needed to tailor the car for road, fast-road and occasional track use.

The KW V3 combines height-adjustable suspension with independently adjustable rebound and compression damping, allowing the behaviour of the car to be fine-tuned far beyond a conventional fixed-damping coilover setup.

Part number: 35256023

Independent Rebound & Compression Adjustment

The defining feature of the KW V3 is its independently adjustable damping.

Rebound damping can be used to influence body movement, steering response and the way the vehicle settles after weight transfer, while compression adjustment allows further control over how the suspension reacts under braking, acceleration and cornering loads.

The V3 platform typically provides:

• 16-click rebound adjustment

• 12-click compression adjustment

• Independent tuning of both damping circuits

This gives the GR Yaris significantly more setup flexibility than a conventional road coilover kit.

Adjustable Ride Height

For the Toyota GR Yaris application, KW lists an adjustment range of approximately:

• Front: 25–45mm lowering

• Rear: 25–45mm lowering

The front axle uses threaded strut housings, while the rear uses separate height-adjustable springs and dampers.

This allows the ride height to be tailored while remaining within KW’s tested adjustment range.

inox-line Stainless Steel Construction

KW V3 coilovers use KW’s inox-line stainless steel construction, designed to provide excellent corrosion resistance and long-term durability.

This is particularly beneficial for road cars exposed to wet weather and winter road salt, while the threaded adjustment system is designed to remain serviceable with appropriate maintenance.

Key Features

• KW V3 Street Performance coilover system

• Independent rebound and compression adjustment

• 16-click rebound adjustment

• 12-click compression adjustment

• Height-adjustable front and rear suspension

• inox-line stainless steel construction

• Vehicle-specific spring and damper tuning

• Improved body control and steering response

• Suitable for road, fast-road and occasional track use

• Front and rear lowering adjustment

• TÜV-tested adjustment range

• Part number: 35256023

Developed for the GR Yaris

The GR Yaris already has a highly capable chassis, so the V3 is aimed at drivers wanting greater control over how the car behaves rather than simply lowering the ride height.

The additional damping adjustment allows the setup to be tailored towards improved body control, sharper response or a more compliant road setup depending on the driver’s requirements.

This makes the V3 particularly well suited to modified GR Yaris builds used across fast-road driving, track days and performance road use.

Vehicle Fitment

Part number 35256023 is suitable for:

• Toyota GR Yaris GXPA16 / XPA1G

• 1.6 Turbo

• 4WD

• From 2020 onwards

• 192kW / 261PS applications and corresponding GR Yaris variants

KW lists maximum axle loads of approximately:

• Front: 970kg

• Rear: 900kg

Vehicle axle weights should always be checked before ordering.

Product Image & Specification Note

Product images are for illustration purposes only and may not show the exact specification supplied.

KW suspension kits can vary depending on vehicle specification and model year. If you are unsure whether this kit is suitable for your GR Yaris, please contact us before ordering so we can confirm compatibility.

Professional Installation Recommended

Professional installation is recommended.

A full four-wheel alignment should also be carried out after installation and once the final ride height has been set.

For performance-focused setups, a more detailed geometry setup can further improve turn-in, tyre utilisation and overall chassis balance.
