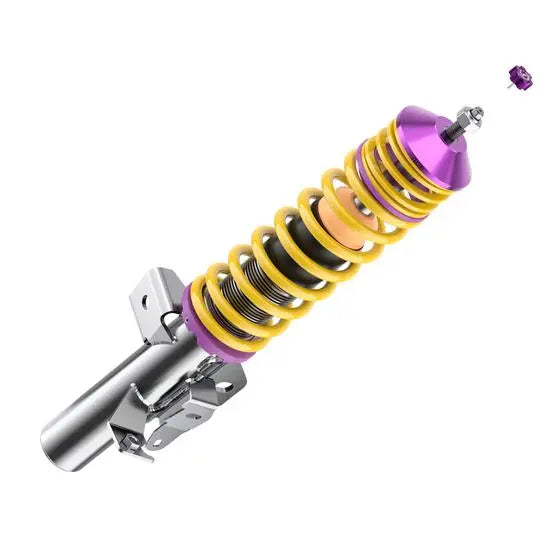

KW V3 Coilovers - Toyota GT86 / Subaru BRZ - 35258004

KW V3 Coilover Suspension inox – Toyota GT86 / Subaru BRZ – 35258004

Upgrade the Toyota GT86 or Subaru BRZ with the KW V3 Coilover Suspension Kit, designed for drivers who want greater control over both ride height and damping characteristics.

The KW V3 combines adjustable lowering with independently adjustable rebound and compression damping, allowing the suspension to be fine-tuned around road use, fast-road driving and occasional track work.

Part number: 35258004

Independent Rebound & Compression Adjustment

The KW V3 allows rebound and compression damping to be adjusted independently, giving much greater control over how the chassis responds to steering inputs, braking, acceleration and changes in road surface.

Adjustment includes:

• 16-click rebound adjustment

• 12-click compression adjustment

• Independent control of both damping circuits

Rebound adjustment can be used to influence body movement, steering response and chassis stability, while compression adjustment provides further control over how the suspension reacts under load.

Adjustable Ride Height

For the GT86 and BRZ application, KW lists an adjustment range of approximately:

• Front: 20–50mm lowering

• Rear: 25–55mm lowering

Ride height is adjustable at both axles using threaded coilover struts, allowing the stance and chassis setup to be tailored within KW’s tested adjustment range.

inox-line Stainless Steel Construction

The KW V3 uses inox-line stainless steel construction, providing excellent corrosion resistance and helping maintain long-term adjustment.

Combined with KW’s corrosion-resistant spring platforms and adjustment hardware, the system is designed to provide reliable performance through year-round road use.

Key Features

• KW V3 coilover suspension

• Independent rebound and compression adjustment

• 16-click rebound adjustment

• 12-click compression adjustment

• Height adjustable front and rear

• 20–50mm front lowering

• 25–55mm rear lowering

• inox-line stainless steel construction

• Vehicle-specific spring and damper setup

• Improved body control and steering response

• Adjustable balance between comfort and performance

• Suitable for road, fast-road and occasional track use

• Part number: 35258004

Greater Setup Control

Where the KW V1 uses factory pre-set damping, the V3 gives the driver significantly more control over the way the car behaves.

The independent rebound and compression adjustment allows the suspension to be tailored around tyre choice, road conditions, driving style and other chassis modifications.

This makes the V3 particularly well suited to GT86 and BRZ builds that need to remain usable on the road while offering greater chassis control for more demanding driving.

Vehicle Fitment

Part number 35258004 is suitable for selected first-generation applications including:

• Toyota GT86 ZN6 – from 2012

• Subaru BRZ ZC6 – from 2012

• Scion FR-S – selected markets

Maximum axle loads are approximately:

• Front: 876kg

• Rear: 943kg

Exact vehicle specification and axle weights should always be checked before ordering.

Product Image & Specification Note

Product images are for illustration purposes only and may not show the exact specification supplied.

KW suspension kits can vary depending on vehicle specification and application. If you are unsure whether this kit is suitable for your GT86 or BRZ, please contact us before ordering so we can confirm compatibility.

Professional Installation Recommended

Professional installation is recommended.

A full four-wheel alignment should also be carried out after installation and once the final ride height has been selected.

For performance-focused setups, further geometry and damping adjustment can help optimise tyre utilisation, steering response and overall chassis balance.
