KW V4 Clubsport Coilovers incl. Top Mounts - Toyota GR Yaris - 39756223

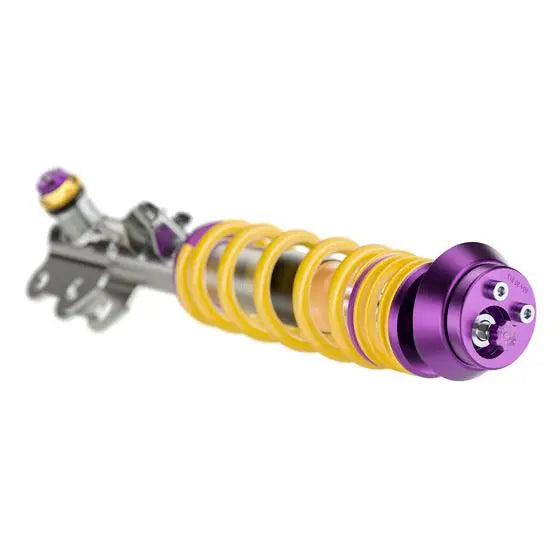

KW V4 Clubsport Coilover Suspension incl. Top Mounts – Toyota GR Yaris – 39756223

Take the Toyota GR Yaris chassis to a much more serious level with the KW V4 Clubsport Coilover Suspension Kit.

Developed for drivers who regularly use their car on circuit while still requiring a road-legal suspension setup, the V4 Clubsport combines 3-way adjustable damping, stainless steel construction, external reservoirs and adjustable front top mounts in one complete package.

Part number: 39756223

3-Way Adjustable Damping

The KW V4 Clubsport allows independent adjustment of:

• Rebound damping

• Low-speed compression damping

• High-speed compression damping

This gives significantly more control over the behaviour of the chassis than a conventional single- or two-way adjustable coilover.

Low-speed compression can be used to influence chassis movements such as body roll, pitch and weight transfer, while high-speed compression allows further control over how the suspension reacts to sharper inputs such as bumps, kerbs and surface changes.

KW uses external reservoirs on the V4 Clubsport to support this additional compression adjustment and improve damper performance under sustained high-load use.

Adjustable Ride Height

For the Toyota GR Yaris application, KW lists an adjustment range of approximately:

• Front: 25–45mm lowering

• Rear: 25–45mm lowering

The front axle uses threaded coilover struts, while the rear uses separate height-adjustable springs and dampers.

Adjustable Clubsport Top Mounts

Part number 39756223 includes KW Clubsport top mounts on the front axle.

These allow additional geometry adjustment, including camber and caster adjustment, giving greater control over front-end setup for fast-road and circuit use.

Being able to increase negative camber can help improve tyre contact during hard cornering, while caster adjustment allows further optimisation of steering feel, front-end response and chassis balance.

Rear top mounts are not included with this application.

inox-line Stainless Steel Construction

The V4 Clubsport uses KW's stainless steel damper construction, providing excellent corrosion resistance and long-term durability.

This makes the system suitable for cars that continue to see regular road use while still offering the performance required for demanding track environments.

Key Features

• KW V4 Clubsport coilover suspension

• 3-way independently adjustable damping

• Separate rebound adjustment

• Separate low-speed compression adjustment

• Separate high-speed compression adjustment

• External reservoir damper design

• Adjustable front Clubsport top mounts included

• Camber and caster adjustment

• Height adjustable front and rear

• 25–45mm lowering front and rear

• Stainless steel construction

• Vehicle-specific Clubsport spring and damper setup

• Developed for intensive fast-road and track use

• Road legal with appropriate approval where applicable

• Part number: 39756223

Developed for Road & Track Performance

The V4 Clubsport is designed for drivers who want substantially more setup capability than a conventional road coilover system.

The combination of adjustable geometry and 3-way damping allows the suspension to be tailored around tyre choice, alignment settings, circuit characteristics and driving style.

For a GR Yaris used regularly on track, this gives much greater control over front-end response, body movement, braking stability and overall chassis balance while still retaining the ability to drive the car on the road.

Vehicle Fitment

Part number 39756223 is suitable for:

• Toyota GR Yaris GXPA16

• 1.6 Turbo

• 4WD

• From 2020

• Gen 1 GR Yaris applications

KW lists maximum axle loads of approximately:

• Front: 970kg

• Rear: 900kg

Exact vehicle specification and axle weights should be checked before ordering.

Product Image & Specification Note

Product images are for illustration purposes only and may not show the exact specification supplied.

KW Clubsport kits can vary depending on vehicle specification, model year and application. If you have any specific requirements or are unsure whether this kit is correct for your GR Yaris, please contact us before ordering so we can confirm compatibility.

Professional Installation Recommended

Professional installation is strongly recommended.

A full four-wheel geometry setup should be carried out after installation and once the final ride height has been selected.

Due to the adjustable front Clubsport top mounts and 3-way damping system, a performance-focused alignment and damper setup is particularly worthwhile to get the best from this kit.
