MMX wheel spacers | BMW G-Series | F5X F60 Mini

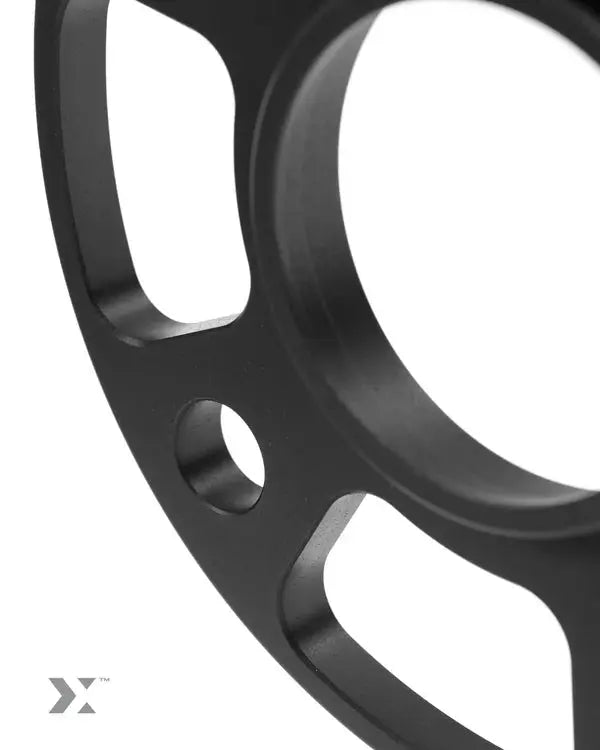

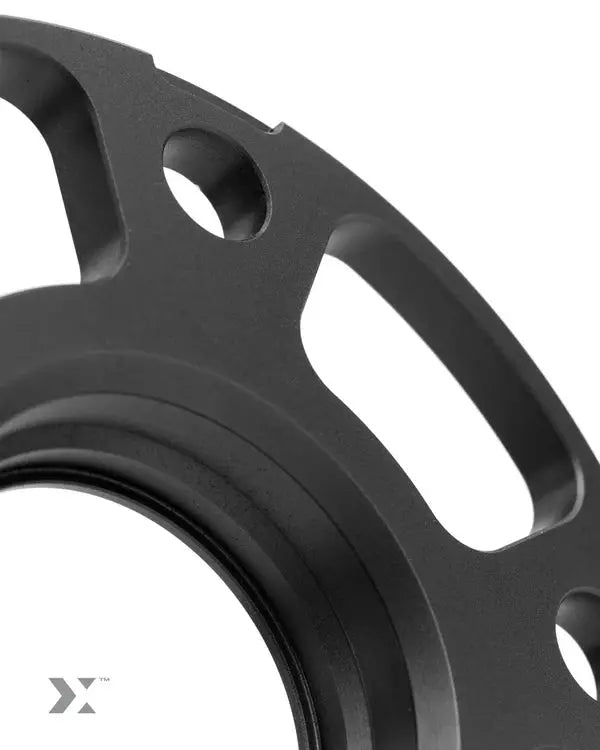

MMX 12mm Hubcentric Wheel Spacers – BMW G-Series & MINI F-Series

Improve the stance, wheel fitment and handling of your BMW G-Series or MINI F-Series with the MMX 12mm Hubcentric Wheel Spacer and Bolt Kit.

Precision-machined from lightweight 7075-T6 aluminium, the MMX spacers move each wheel 12mm further outward from the hub, creating a wider track and helping the wheels sit more flush with the bodywork.

The hubcentric design incorporates a precision-machined locating lip that maintains the correct 66.5mm centre bore, helping the wheel remain accurately centred on the hub and reducing the risk of vibration caused by poor alignment.

Suitable for BMW G-Series models and MINI F54, F55, F56, F57 and F60 applications using the 5x112 bolt pattern, each pair is supplied with ten extended Grade 10.9 black wheel bolts for correct installation.

Why Fit 12mm Wheel Spacers?

Wheel spacers are one of the simplest ways to improve the stance of a vehicle without replacing the wheels.

By positioning the wheels further outward, the MMX 12mm spacers can help:

• Reduce the recessed factory wheel appearance
• Create a wider and more purposeful stance
• Position the wheel more flush with the arch
• Increase track width
• Improve clearance around suspension or brake components
• Complement lowered suspension
• Improve overall wheel fitment

For many BMW and MINI applications, 12mm provides a noticeable improvement without creating an excessively aggressive stance.

Key Features

• MMX 12mm hubcentric wheel spacers
• Suitable for BMW G-Series
• Suitable for MINI F-Series
• 12mm spacer thickness
• 5x112 PCD
• 66.5mm centre bore
• Precision hubcentric locating lip
• CNC-machined construction
• Aerospace-grade 7075-T6 aluminium
• Lightweight and highly durable
• Wider vehicle stance
• Improved wheel-to-arch fitment
• Can provide additional brake or suspension clearance
• Compatible with suitable factory and aftermarket wheels
• Supplied as a pair
• 10 extended black wheel bolts included
• Grade 10.9 carbon-steel wheel bolts
• Can be mixed with other MMX spacer widths front-to-rear

12mm Wider Per Wheel

Each spacer moves the corresponding wheel 12mm outward from the hub.

When fitted to both wheels on one axle, this increases the overall track width by approximately 24mm.

This creates a noticeably broader stance while retaining a relatively subtle OEM-plus appearance.

Improved Wheel Fitment

Factory wheel fitment often positions the wheels further inside the arches than some owners prefer.

The MMX spacers effectively alter the wheel offset by moving the wheel outward.

For example, fitting a 12mm spacer has the same positional effect as reducing the wheel offset by 12mm.

This can help create a more flush wheel-to-arch relationship without requiring replacement wheels.

Wider, More Purposeful Stance

One of the primary reasons to fit spacers is appearance.

Moving the wheels outward can substantially change the way the car sits visually.

The MMX 12mm spacers are particularly well suited to:

• Standard-height cars
• Lowered vehicles
• Cars with factory wheels
• Aftermarket wheel setups
• Performance-focused builds

They can help remove the visually narrow appearance created when the factory wheels sit deep within the arches.

Hubcentric Design

Correct wheel location is extremely important when fitting spacers.

MMX uses a hubcentric design with a precision-machined alloy spigot.

Rather than relying solely on the wheel bolts to centre the wheel, the spacer maintains the correct hub-centred location.

This helps provide:

• Accurate wheel alignment
• Correct centring on the hub
• Reduced risk of vibration
• Easier wheel installation
• More consistent fitment

MMX maintains the OE 66.5mm centre bore for compatible BMW G-Series and MINI F-Series applications.

5x112 Bolt Pattern

These spacers use the 5x112 PCD found across compatible modern BMW G-Series and F-Series MINI applications.

This means the spacer has:

• 5 wheel bolt positions
• 112mm pitch circle diameter

The spacer must always match the vehicle's original hub specification.

7075-T6 Aluminium Construction

MMX manufactures the spacers from aerospace-grade 7075-T6 aluminium.

This high-strength aluminium alloy provides an excellent combination of:

• Low weight
• High strength
• Dimensional stability
• Durability

The lightweight construction minimises additional unsprung and rotational mass while providing the strength required for a wheel-mounting component.

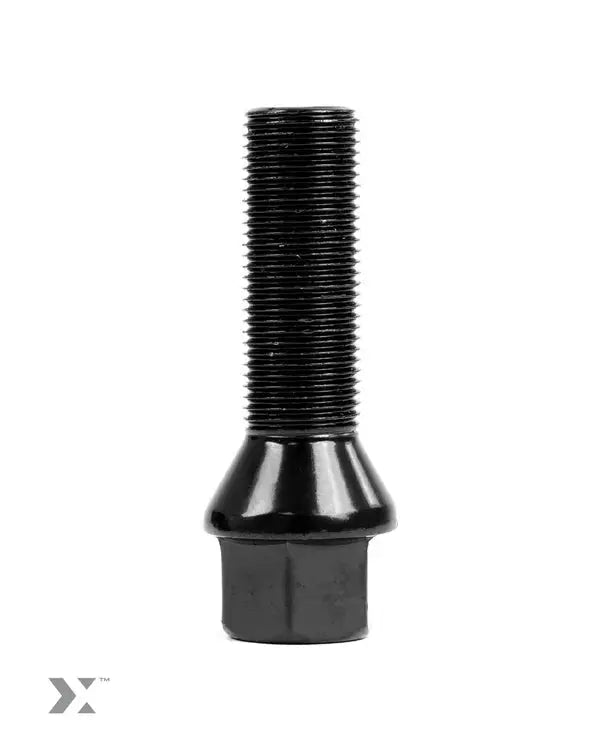

Extended Wheel Bolts Included

A spacer increases the distance between the wheel and hub, meaning the original wheel bolts are no longer long enough to provide the required thread engagement.

MMX therefore supplies ten extended black wheel bolts with each pair of spacers.

The bolts use Grade 10.9 carbon-steel construction for high strength.

Using the correctly sized extended hardware is essential when installing wheel spacers.

Sold as a Pair

The MMX 12mm spacer kit is supplied as a pair for one axle.

Each kit therefore includes:

• 2x 12mm wheel spacers
• 10x extended wheel bolts

To space both the front and rear axles, two pairs are required.

Mix Spacer Widths Front & Rear

MMX also offers its hubcentric spacers in multiple widths.

This means different spacer thicknesses can be used on the front and rear axles to achieve the desired stance.

For example, depending on wheel fitment and available clearance, an owner may choose:

• 12mm front / 12mm rear
• 12mm front / 15mm rear
• 15mm front / 18mm rear

The correct combination depends on the vehicle, wheels, tyres, suspension and desired appearance.

Additional Brake Clearance

Moving the wheel outward can also provide additional inner clearance.

This may be useful when fitting:

• Larger brake calipers
• Big brake kits
• Different wheel designs
• Performance brake upgrades

However, spacer fitment does not guarantee clearance with every brake and wheel combination.

The setup should always be checked before use.

Additional Coilover Clearance

Aftermarket coilovers and wider wheels can sometimes reduce clearance between the inner wheel barrel or tyre and suspension components.

A wheel spacer moves the complete wheel assembly outward and can therefore provide additional clearance from:

• Coilover spring platforms
• Dampers
• Suspension arms
• Other inner-wheel components

Clearance should always be checked throughout the full steering and suspension range.

Ideal with Lowering Springs

Wheel spacers are especially popular on lowered vehicles.

Lowering springs reduce the wheel arch gap vertically, while spacers improve the lateral wheel position.

Combining the two can create a much more complete stance improvement.

They work particularly well alongside upgrades such as:

• MMX Lowering Springs
• Height-adjustable spring kits
• Sport dampers
• Coilovers

Handling Benefits

Moving the wheels outward increases the vehicle's track width.

A wider track can influence the way the chassis responds during cornering and may provide a broader, more planted feel.

However, spacer selection should primarily be based around correct wheel fitment, tyre clearance and suspension geometry rather than treating the spacer as a major standalone handling modification.

BMW G-Series Compatibility

The 12mm MMX spacers are suitable for compatible BMW G-Series models using the 5x112 PCD and 66.5mm centre bore.

This can include models across ranges such as:

• BMW G20 / G21 3 Series
• BMW G22 / G23 / G26 4 Series
• BMW G42 2 Series
• BMW G87 M2
• BMW G80 / G81 M3
• BMW G82 / G83 M4
• Other compatible BMW G-Series applications

Always confirm your specific hub, wheel and bolt arrangement before ordering.

MINI F54 Clubman

The MMX 12mm spacers are compatible with MINI F54 Clubman applications.

The hubcentric construction maintains the correct wheel location while allowing the wheels to sit 12mm further outward.

MINI F55 5-Door Hatch

MINI F55 models are also supported.

The spacers can provide a useful stance improvement whether the car retains factory suspension or has been lowered.

MINI F56 Hatch

The MMX spacers are suitable for MINI F56 models, including compatible Cooper S and John Cooper Works applications.

The 12mm width is particularly useful for owners looking for an OEM-plus stance with factory or suitable aftermarket wheels.

MINI F57 Convertible

MINI F57 Convertible applications are also compatible.

The same 5x112 hubcentric design provides precise location onto the factory wheel hub.

MINI F60 Countryman

The kit is also suitable for compatible MINI F60 Countryman applications.

MINI F-Series Compatibility

MMX officially lists fitment for:

• MINI F54 Clubman
• MINI F55 Hatch
• MINI F56 Hatch
• MINI F57 Convertible
• MINI F60 Countryman

Model year:

• 2014+

Model variants:

• All applicable F-Series MINIs

MMX confirms a 5x112 PCD and 66.5mm OE centre bore for these MINI applications.

Important Fitment Checks

Before installation, ensure that:

• The spacer sits completely flat against the hub
• The wheel sits completely flat against the spacer
• The hubcentric lip correctly locates the wheel
• The correct extended bolts are used
• The wheel clears the arch
• The tyre clears suspension components
• Full steering lock remains unobstructed
• Adequate clearance remains through suspension travel

MMX specifically recommends checking arch clearance at full left and right steering lock after installation.

Wheel Bolt Torque

Wheel bolts should always be tightened to the vehicle manufacturer's specified torque using a calibrated torque wrench.

Wheel bolt torque should also be rechecked after the wheels have been removed or spacers installed.

Spacer Care

MMX advises against using aggressive acidic or alkaline wheel cleaners on the anodised spacer finish.

For cleaning, use:

• Water
• Mild soap
• pH-neutral products

Avoid aggressive wheel cleaners, solvents, abrasive compounds and strong traffic-film removers, as these can damage the spacer finish.

What's Included?

Each MMX 12mm Wheel Spacer Kit includes:

• 2x MMX 12mm hubcentric wheel spacers
• 10x extended black wheel bolts
• Grade 10.9 carbon-steel bolt construction

One kit is suitable for one axle.

Two kits are required to fit 12mm spacers to all four wheels.
