MMX 335mm Front 2-Piece Rotor | MINI F56

MMX 335mm Front 2-Piece Brake Rotors – MINI F56 JCW

Upgrade the braking performance, thermal capacity and durability of your MINI F56 John Cooper Works with the MMX 335mm Front 2-Piece Brake Rotor Kit.

Designed as a direct replacement for the factory 335mm front discs, the MMX rotors retain compatibility with the original JCW 4-pot front calipers while introducing a much more advanced two-piece floating construction.

The result is improved heat management, reduced risk of warping and cracking, more consistent braking during repeated hard use and greater durability on fast-road and track-focused builds.

For MINI F56 JCW owners who are happy with the capable factory calipers but want a more serious disc solution, the MMX 335mm front rotor upgrade is an ideal next step.

Why Upgrade the Factory JCW Front Discs?

The F-Series MINI JCW is equipped with a substantial factory 4-pot front caliper, but the original one-piece brake discs can become the limiting factor during repeated high-temperature use.

Under fast-road or track conditions, heat builds rapidly within the disc.

This can contribute to:

• Brake fade
• Reduced consistency
• Disc distortion
• Surface cracking
• Accelerated wear
• Reduced confidence during repeated braking

MMX developed the two-piece rotor system to improve thermal management while retaining the original caliper arrangement.

Key Features

• MMX 335mm front two-piece brake rotor kit
• Designed for MINI F-Series JCW applications
• 335mm diameter
• 30mm thickness
• Direct replacement for OE front brake discs
• Compatible with factory JCW 4-pot calipers
• Compatible with OEM-shape brake pads
• Compatible with aftermarket performance pads
• Fully floating two-piece design
• Separate left- and right-hand rotors
• Aerospace-grade aluminium centre hats
• 48 directional curved cooling vanes
• Floating bobbin mounting system
• Up to 30% cooler running than OE
• Up to 30% improved cooling efficiency
• Improved heat management
• Reduced risk of warping
• Reduced risk of cracking
• Improved durability
• Suitable for fast-road and track use
• Matching MMX rear rotor conversion available
• Complete installation kit
• MMX SKU MMR31-1410F

335mm x 30mm Dimensions

The MMX front rotors retain the factory 335mm diameter and 30mm thickness used by the JCW front braking system.

This allows the upgrade to work with the original brake caliper while improving the design and construction of the disc itself.

The result is a performance upgrade without requiring a complete front big brake kit.

Two-Piece Floating Construction

The MMX rotor separates the braking ring from the centre hat.

This two-piece design allows the iron friction ring and aluminium bell to react to temperature independently.

During hard braking, the disc can expand both radially and axially without placing the same level of stress into the assembly as a conventional one-piece disc.

This helps reduce the likelihood of:

• Disc distortion
• Cracking
• Thermal stress
• Uneven pad contact

Improved Heat Management

MMX states that the 335mm rotors can run up to 30% cooler than the original discs and improve cooling efficiency by up to 30%.

Lower disc temperatures can provide:

• More consistent braking
• Reduced brake fade
• Improved pad life
• Reduced thermal stress
• Better performance during repeated stops

This is particularly valuable on track or during demanding fast-road use.

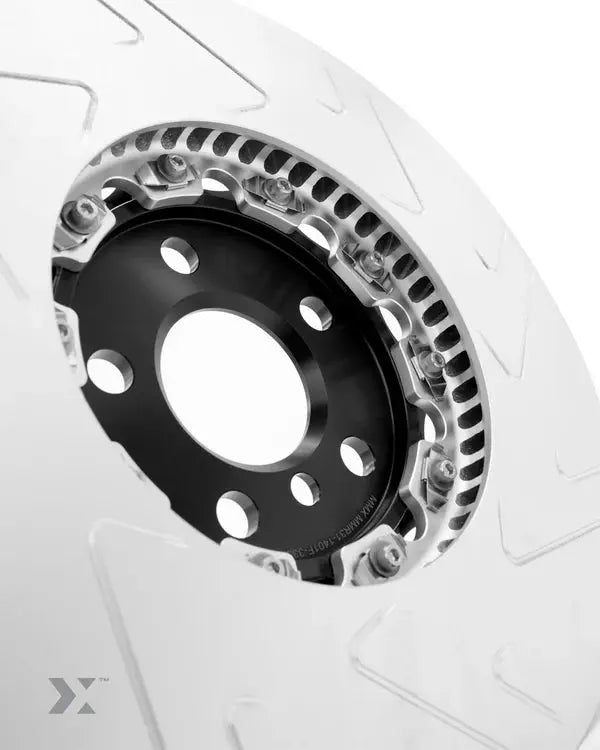

48 Directional Cooling Vanes

Each rotor uses 48 correctly oriented curved internal cooling vanes.

The left and right discs are direction-specific so that the vanes operate in the intended direction on each side of the car.

As the disc rotates, the curved vane structure helps draw air through the rotor and move heat away from the friction surfaces.

This helps improve cooling efficiency during sustained use.

Separate Left & Right Rotors

Unlike non-directional brake discs, the MMX rotors are supplied as dedicated left- and right-hand units.

This ensures the internal vanes are correctly oriented on both sides of the car.

Correct rotor orientation is important for maximising airflow through the internal cooling channels.

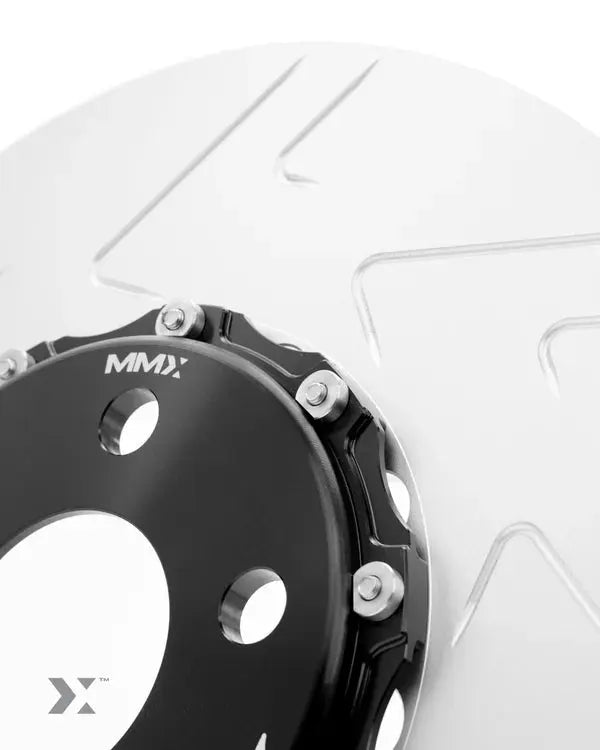

Floating Bobbin Mounting System

The friction ring is connected to the aluminium centre hat using a floating bobbin system.

This allows controlled movement between the two components as temperatures change.

The floating arrangement helps reduce the mechanical stress created by thermal expansion.

Potential benefits include:

• Improved durability
• Better resistance to distortion
• More consistent pad contact
• Improved high-temperature performance

Aerospace-Grade Aluminium Hats

The centre hats are manufactured from aerospace-grade aluminium.

Using aluminium rather than a conventional full-steel one-piece disc design helps reduce unnecessary mass at the wheel.

Reducing brake rotor mass can also reduce unsprung and rotational weight.

This can contribute to a more responsive overall chassis and suspension system.

Improved Brake Consistency

For road use, the factory braking system may perform well during an individual stop.

The real advantage of an uprated rotor becomes apparent when the brakes are used repeatedly.

The MMX rotors are designed to manage temperature more effectively, helping maintain consistent braking response throughout:

• Repeated fast-road braking
• Mountain-road driving
• Track sessions
• High-speed braking
• Performance driving

Reduced Risk of Warping

One-piece discs are more constrained as they heat and cool.

Repeated thermal cycling can cause stress to build within the rotor.

The MMX floating design allows the friction ring to expand more naturally, reducing the thermal stress that can contribute to disc distortion.

This can help maintain a smoother braking surface over the life of the rotor.

Reduced Risk of Cracking

Extreme heat cycles can also contribute to cracking in conventional brake discs.

By managing temperature more effectively and allowing controlled thermal expansion, the MMX two-piece design helps reduce the stress responsible for this type of damage.

This is particularly useful on vehicles regularly driven on track.

Compatible with Factory JCW Calipers

One of the major benefits of the MMX rotor upgrade is that the factory front JCW calipers are retained.

The MINI JCW already comes with a capable 4-pot front brake caliper.

Rather than replacing the complete brake system, the MMX kit improves one of the main limitations within the original setup: the discs.

Compatible with OEM Brake Pads

The MMX 335mm rotors can be used with factory-shape MINI brake pads.

This makes them suitable for owners who want to improve disc performance while maintaining an OEM-style pad compound.

Compatible with Performance Brake Pads

The rotors are also compatible with suitable aftermarket performance pads.

This allows the braking system to be tailored around vehicle use.

For example:

Road Use

A fast-road pad can provide:

• Good cold response
• Low noise
• Lower dust
• Increased temperature capability

Track Use

A more aggressive pad can provide:

• Higher temperature resistance
• Greater repeated-stop capability
• More consistent friction at extreme temperatures

Ideal for Fast-Road Builds

For a fast-road MINI JCW, the MMX rotors provide a strong balance between road usability and increased braking capability.

They are particularly well suited to cars fitted with:

• Performance tyres
• Uprated brake pads
• Braided brake lines
• High-temperature brake fluid
• Lowering springs
• Coilovers
• Increased engine output

Ideal for Track Use

Track driving places significantly greater thermal demand on the braking system.

Repeated heavy braking can rapidly raise disc temperatures and expose the limitations of the factory one-piece rotor.

The MMX two-piece system is designed to provide:

• Greater thermal consistency
• Improved cooling
• Longer rotor life
• Reduced likelihood of distortion
• Better repeated-stop performance

2-Piece Rotors vs OE Discs

Factory JCW Front Discs

Prioritise:

• Production cost
• Road refinement
• Standard operating conditions

MMX 2-Piece Rotors

Prioritise:

• Cooling efficiency
• Thermal management
• Reduced distortion
• Track durability
• Performance consistency

For enthusiast-driven and track-used cars, the MMX design provides a more performance-focused solution.

Complete Braking Upgrade

For a more comprehensive front braking setup, the MMX rotors can be combined with:

• Performance front brake pads
• Braided brake lines
• High-temperature brake fluid
• Brake cooling upgrades

This creates a significantly more capable package while retaining the original JCW calipers.

Matching Rear Rotors Available

MMX also offers a matching 325mm rear two-piece rotor conversion for the MINI F56.

Pairing the front and rear systems provides:

• Matching two-piece construction
• Improved thermal performance at both axles
• Consistent appearance
• More complete brake-system upgrade

MINI F56 John Cooper Works

The MMX 335mm front rotors are specifically designed around the factory MINI F56 JCW 4-pot front caliper and 335mm brake arrangement.

They are therefore particularly suitable for:

• Standard JCW models
• Tuned JCW models
• Fast-road builds
• Track-focused F56 JCWs

Wider F-Series JCW Fitment

MMX also lists the 335mm rotor across compatible F-Series MINI applications including F54, F55, F56, F57 and F60, with the product itself specifically designed around the JCW front brake setup.

Exact brake specification should always be confirmed before ordering.

Compatibility

Primary application:

• MINI F56 John Cooper Works

MMX also lists compatible F-Series MINI chassis including:

• MINI F54
• MINI F55
• MINI F56
• MINI F57
• MINI F60

Model year:

• 2014+

Brake requirement:

• Factory JCW 335mm front brake setup
• OEM JCW front calipers

Please confirm the vehicle has the correct 335mm JCW front braking system before ordering.

What's Included?

The MMX 335mm Front 2-Piece Rotor Kit includes:

• 1x left-hand 335mm x 30mm two-piece rotor
• 1x right-hand 335mm x 30mm two-piece rotor
• Aerospace-grade aluminium centre hats
• Floating bobbin assemblies
• Required installation hardware

Supplied as a complete front axle pair.
