MMX Adjustable Front Droplinks | BMW F2x | F3x | Mini F56 |
Tax included. Shipping calculated at checkout

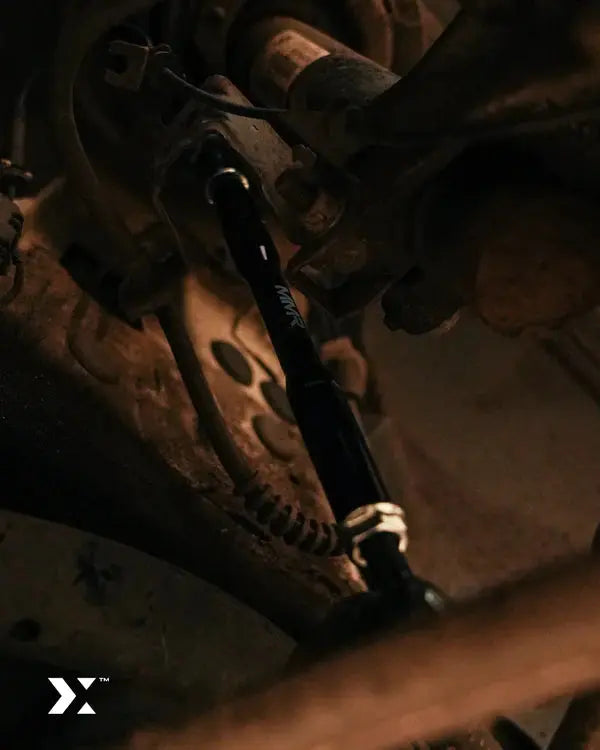

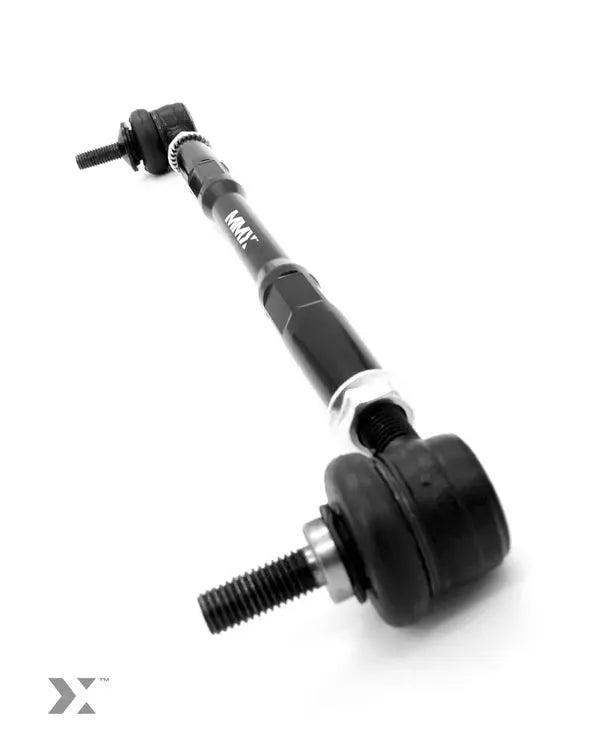

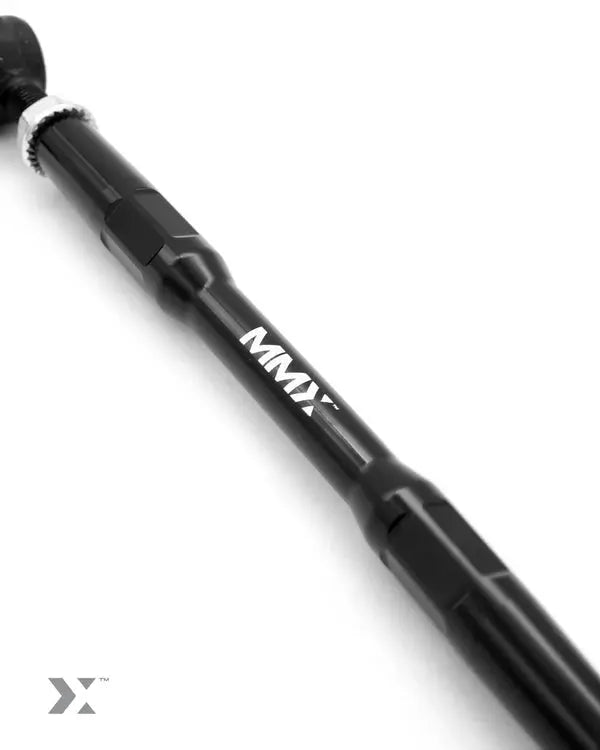

MMX Adjustable Front Droplinks – BMW F2X, F3X & MINI F56
Restore correct front anti-roll bar geometry on your lowered BMW F2X, F3X or MINI F56 with the MMX Adjustable Front Droplinks.
When a vehicle’s ride height is altered, the anti-roll bar can be pulled away from its optimum operating position. This can introduce unwanted preload into the bar and prevent it from working as intended.
The MMX adjustable front droplinks provide around 40mm of length adjustment, allowing the anti-roll bar position to be corrected and preload reduced after fitting lowering springs, height-adjustable springs or coilovers.
With left- and right-hand threaded ends, adjustment can be carried out easily without removing the droplink from the vehicle, making them an ideal supporting upgrade for properly set-up fast-road and track-focused suspension systems.
Why Upgrade to Adjustable Droplinks?
The factory droplink length is designed around the original ride height.
Once the car is lowered, the position of the suspension changes but the fixed-length droplink does not.
This can pull the anti-roll bar away from its intended resting position and create preload before the vehicle has even entered a corner.
The MMX adjustable droplinks allow the effective link length to be corrected so the anti-roll bar can return closer to a neutral position.
Potential benefits include:
- Reduced anti-roll bar preload
- More consistent handling
- Improved suspension balance
- More predictable turn-in
- Better anti-roll bar operation
- Easier chassis setup after lowering
Key Features
- MMX adjustable front droplinks
- Suitable for BMW F2X
- Suitable for BMW F3X
- Suitable for MINI F56
- Approx. 40mm of length adjustment
- Designed to correct anti-roll bar geometry on lowered cars
- Helps return the anti-roll bar to zero preload
- Left- and right-hand threaded ends
- Easy in-situ length adjustment
- Ideal for lowering springs
- Ideal for height-adjustable spring kits
- Ideal for coilovers
- Suitable for standard or aftermarket anti-roll bars
- Helps improve suspension consistency
- Suitable for road, fast-road and track applications
Corrects Anti-Roll Bar Position After Lowering
Lowering the vehicle changes the relationship between the suspension and anti-roll bar.
Because the standard droplink length remains fixed, the ends of the anti-roll bar can be pulled upward or downward away from their ideal position.
The MMX adjustable design allows the link length to be changed to suit the new ride height.
This helps the anti-roll bar operate from a more appropriate neutral position.
Helps Achieve Zero Anti-Roll Bar Preload
One of the main purposes of adjustable droplinks is to reduce unwanted preload.
Preload occurs when the anti-roll bar is already twisted while the vehicle is sitting stationary at normal ride height.
This can lead to:
- Uneven handling
- Different responses between left and right turns
- Reduced suspension consistency
- Compromised anti-roll bar performance
Adjusting the MMX droplinks allows the anti-roll bar to be set closer to zero preload.
Around 40mm of Adjustment
The MMX front droplinks provide approximately 40mm of adjustable length.
This gives enough range to accommodate a wide variety of altered ride heights and suspension setups.
They are well suited to cars fitted with:
- Mild lowering springs
- Aggressive lowering springs
- Height-adjustable springs
- Road coilovers
- Track-focused coilovers

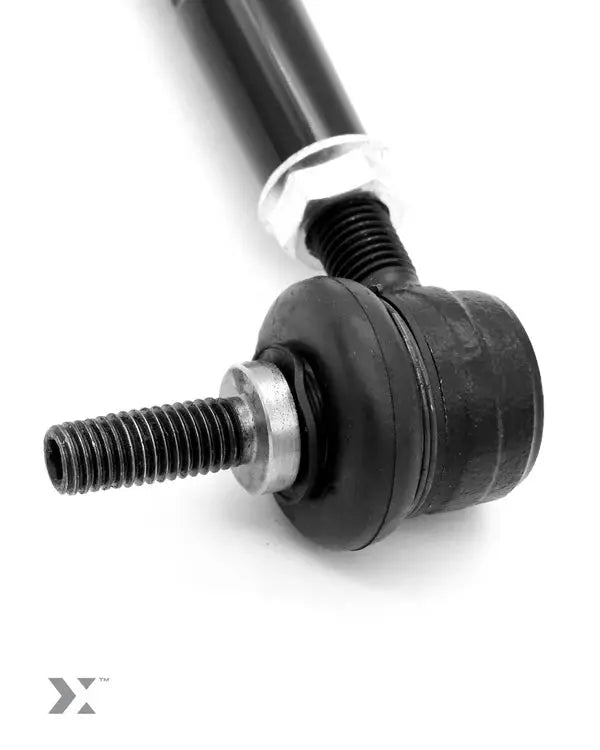

Left- & Right-Hand Threaded Ends
The MMX droplinks use left- and right-hand threaded ends.
This allows the overall link length to be changed simply by rotating the central section.
The droplink does not need to be removed from the car for basic length adjustment.
This makes setup much easier when:
- Correcting preload
- Fine-tuning ride height
- Corner weighting
- Changing suspension settings
- Moving between road and track configurations
More Consistent Handling
A preloaded anti-roll bar can influence the way the chassis behaves before any cornering load is applied.
Correctly setting the link length helps the bar respond more evenly when the suspension begins to move.
This can improve:
- Left-to-right handling consistency
- Steering response
- Mid-corner balance
- Suspension predictability
- Driver confidence
Ideal for Lowering Springs
Lowering springs change the vehicle’s static ride height but normally retain the original fixed droplinks.
This makes adjustable droplinks a useful supporting modification.
They allow the anti-roll bar relationship to be corrected after the springs have been fitted.
Ideal for Coilovers
Coilovers can create a much larger change in ride height than conventional lowering springs.
On aggressively lowered cars, the standard droplink length may move the anti-roll bar significantly away from its ideal position.
MMX adjustable droplinks allow the suspension setup to be corrected around the chosen ride height.
Ideal for Height-Adjustable Spring Kits
Height-adjustable spring systems allow the vehicle height to be changed while retaining the original damper arrangement.
Because ride height is still altered, the anti-roll bar geometry can also change.
Adjustable droplinks allow the front anti-roll bar setup to be matched to the final ride height.
Useful for Corner-Weighted Cars
For more advanced chassis setups, adjustable droplinks are particularly useful during corner weighting.
When the vehicle has been set to its final ride height and corner weights, the droplinks can be adjusted with the suspension loaded.
This allows the anti-roll bar to remain neutral rather than unintentionally influencing the corner weights.
Works with Standard Anti-Roll Bars
The MMX droplinks can be used with the original factory anti-roll bar.
This makes them useful even if the rest of the anti-roll bar system remains standard.
The upgrade is primarily about correcting geometry rather than increasing anti-roll bar stiffness.
Works with Uprated Anti-Roll Bars
They can also be used alongside aftermarket anti-roll bars.
This is especially useful because a stiffer bar can be more sensitive to unwanted preload.
Correct droplink adjustment helps ensure the upgraded bar works as intended.
Adjustable Droplinks vs Standard Droplinks
Factory Droplinks
Designed for:
- Standard ride height
- Fixed suspension geometry
- OEM chassis settings
MMX Adjustable Droplinks
Designed for:
- Lowered ride heights
- Adjustable suspension setups
- Preload correction
- Fast-road and track chassis tuning
For a completely standard-height car, the factory droplinks may remain suitable.
For a lowered or performance-focused build, adjustable links offer much greater flexibility.
BMW F20 / F21 1 Series
The MMX Adjustable Front Droplinks are suitable for applicable BMW F20 and F21 1 Series models.
They are particularly relevant for lowered M135i and M140i builds fitted with performance springs or coilovers.
BMW F22 / F23 2 Series
Applicable BMW F22 and F23 2 Series models are also supported.
For M235i and M240i models, the MMX droplinks provide a useful way to correct anti-roll bar geometry after lowering.
BMW F30 / F31 3 Series
The droplinks are suitable for compatible BMW F30 and F31 3 Series applications.
They complement lowered suspension setups including sport springs, HAS kits and coilovers.
BMW F32 / F33 / F36 4 Series
Compatible BMW 4 Series applications are also supported.
This includes F32, F33 and F36 models where applicable.
MINI F56
The MMX Adjustable Front Droplinks are also suitable for applicable MINI F56 models.
This makes them an ideal supporting upgrade for lowered MINI builds using:
- Lowering springs
- Height-adjustable springs
- Coilovers
- Uprated anti-roll bars
Common applications include Cooper S and John Cooper Works models.
Compatibility
Designed for applicable:
- BMW F20 / F21 1 Series
- BMW F22 / F23 2 Series
- BMW F30 / F31 3 Series
- BMW F32 / F33 / F36 4 Series
- MINI F56
Please confirm exact vehicle and suspension specification before ordering.
Installation & Setup
Professional installation and suspension setup are recommended.
For best results, the droplink length should be set with the vehicle at its final ride height and the suspension properly loaded.
The aim is to adjust the links so that the anti-roll bar sits without unwanted preload at rest.
If the car is also being corner weighted, droplink adjustment should be completed as part of the final chassis setup.
What's Included?
The MMX Adjustable Front Droplink Kit includes:
- 2x adjustable front droplinks
Supplied as a pair for one front axle.
