MMX Billet Rear Subframe Inserts – BMW F2X & F3X
Improve rear-end stability and chassis response on your BMW F2X or F3X with the MMX Billet Rear Subframe Insert Kit.
Designed for BMW F-Series 1 Series, 2 Series, 3 Series and 4 Series models, these precision-machined billet aluminium inserts fit into the voids within the factory rear subframe bushes to reduce unwanted movement under acceleration, cornering and dynamic load.
By limiting subframe movement while retaining the original rubber bushes, the MMX inserts provide a more connected and predictable rear end without the harshness normally associated with replacing the factory mounts with solid or fully rigid alternatives.
For road, fast-road and track-focused builds, they offer a simple and reversible way to improve rear suspension precision.
Why Upgrade the Rear Subframe Bushes?
The BMW F2X and F3X platforms use rubber rear subframe mounts.
These rubber bushes provide excellent refinement, but they can also deflect under load.
As the rear subframe moves relative to the chassis, the suspension geometry can shift away from its intended position.
This can contribute to:
- A vague rear-end feel
- Reduced suspension precision
- Less consistent geometry
- Increased understeer
- Reduced response under acceleration
- Less effective operation of upgraded suspension components
The MMX inserts are designed to reduce this unwanted movement without completely removing the compliance of the original rubber bushes.
Key Features
- MMX billet rear subframe insert kit
- Designed for BMW F2X and F3X
- CNC-machined 6061-T6 billet aluminium
- Fits into the voids in the factory rear subframe bushes
- Reduces rear subframe movement
- Helps maintain suspension geometry under load
- Improves rear-end response
- More connected chassis feel
- Helps reduce vagueness from the rear suspension
- Improves effectiveness of rear anti-roll bar upgrades
- Improves effectiveness of suspension upgrades
- No noticeable additional NVH in normal use
- Retains the original rubber subframe bushes
- Subframe remains in situ during installation
- Installation can typically be completed in under one hour
- Completely reversible
- Suitable for petrol and diesel models
- Suitable for manual and automatic transmissions
- MMX part number MMR12-6002
Reduces Rear Subframe Movement
The main purpose of the MMX inserts is to reduce movement within the factory rear subframe mounting system.
The original rubber bushes include voids that allow the subframe to move under load.
The MMX billet inserts fill these voids and restrict both lateral and vertical movement.
This provides the rear suspension with a much more stable foundation.
Helps Maintain Suspension Geometry
Suspension geometry is designed around precise relationships between the wheels, suspension arms and chassis.
If the complete rear subframe moves under load, those relationships can change.
By limiting subframe movement, the MMX inserts help maintain more consistent geometry during:
- Cornering
- Hard acceleration
- Braking
- Direction changes
- High-load driving
This can make the rear axle feel considerably more predictable.
Improved Rear-End Stability
One of the most noticeable benefits can be a more stable and connected feeling from the rear of the car.
Reducing movement between the subframe and body can improve:
- Rear-end confidence
- Mid-corner stability
- Power delivery
- Direction changes
- Driver feedback
For fast-road use, this can make the car feel more precise without substantially changing ride quality.
Reduces Rear-End Vagueness
Rubber subframe movement can make the rear of the vehicle feel slightly disconnected from the chassis.
This is especially noticeable during quick changes of direction or when applying power during corner exit.
The billet inserts help remove some of this softness, resulting in a more immediate connection between the rear suspension and chassis.
Helps Reduce Understeer
MMX notes that excessive movement within the factory subframe mounts can contribute to less-than-optimal suspension geometry and increased understeer.
By reducing this movement, the inserts help the rear suspension operate more consistently.
This can contribute to a more balanced chassis response during fast cornering.
Ideal for Tuned Cars
Higher engine output places more load through the rear drivetrain and subframe.
Under hard acceleration, the subframe is subjected to significant forces.
The MMX inserts help control this movement, making them particularly useful for:
- Tuned M135i models
- Tuned M140i models
- Tuned M235i models
- Tuned M240i models
- Modified 3 Series and 4 Series
- High-grip tyre setups
- Fast-road builds
Improves Launch Stability
Hard launches and aggressive acceleration place substantial load through the rear axle.
MMX specifically highlights reduced subframe movement during launches and acceleration as a benefit of the insert kit.
Reducing this movement can help the rear axle feel more stable and controlled as power is transferred to the road.

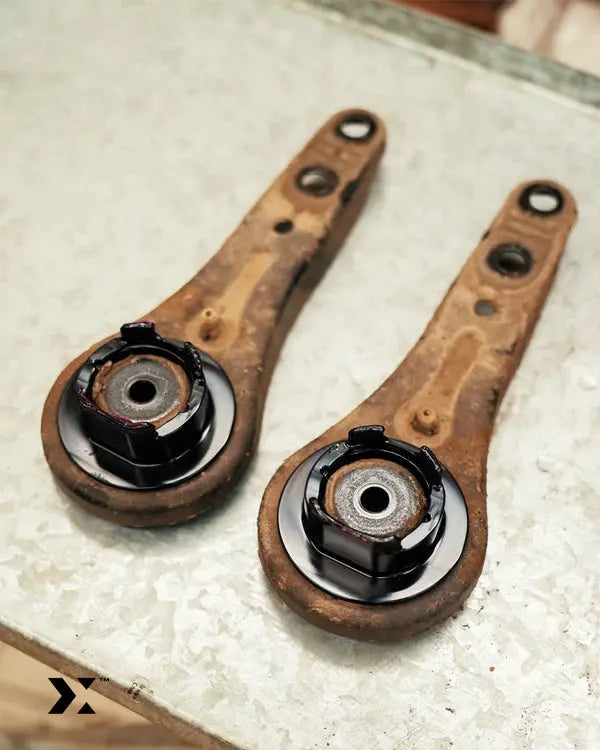

Works with the Factory Rubber Bushes
The MMX inserts do not replace the original rubber subframe mounts.
Instead, they fit into the unused voids within the OEM bushes.
This means the factory rubber material remains in place and continues to provide a degree of isolation between the subframe and chassis.
This is one of the main reasons the kit can improve chassis response without introducing the level of harshness associated with solid mounting.
Minimal Additional NVH
MMX states that the inserts introduce little to no noticeable additional noise, vibration or harshness into the cabin.
This makes them especially suitable for road-driven cars.
They provide a meaningful improvement in chassis rigidity without turning the rear subframe into a completely solid-mounted arrangement.
As with any chassis upgrade, NVH perception is subjective and can vary depending on vehicle condition and installation.

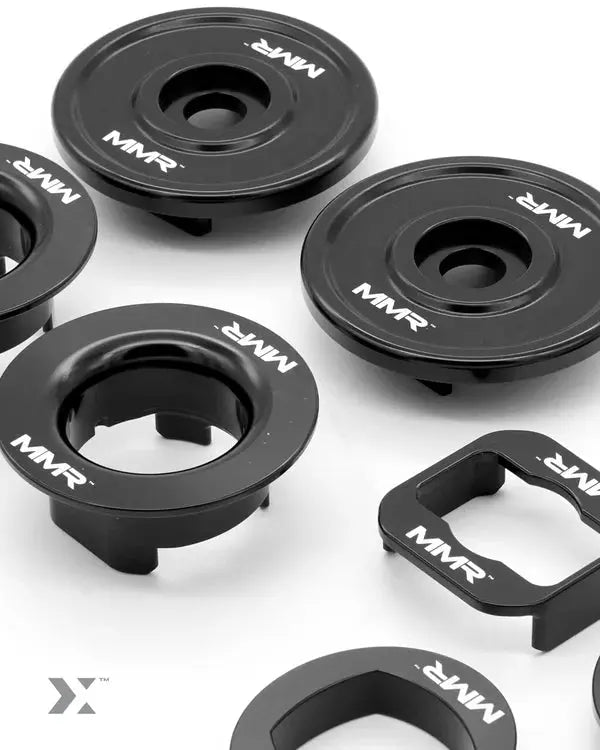

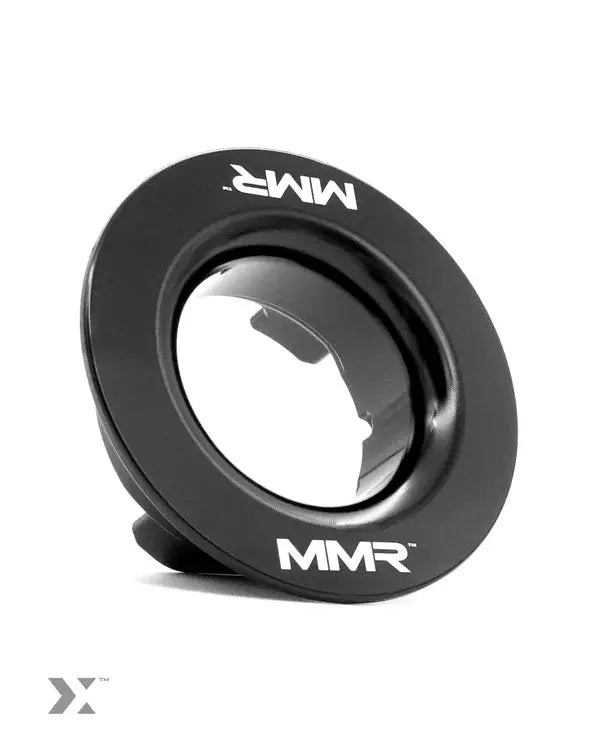

Billet 6061-T6 Aluminium Construction
The inserts are CNC-machined from 6061-T6 billet aluminium.
This provides:
- High strength
- Low weight
- Accurate fitment
- Excellent durability
- Resistance to wear
Unlike softer insert materials, the billet aluminium components are designed to maintain their shape over time.
Long-Term Performance Upgrade
Because the MMX inserts are manufactured from solid aluminium, they are not subject to the same deterioration as rubber or softer elastomer inserts.
Once installed correctly, they provide a long-lasting reduction in subframe movement.
Improves Aftermarket Anti-Roll Bar Performance
The rear anti-roll bar is mounted to the rear subframe.
If the subframe itself is moving relative to the chassis, some of the response from an upgraded anti-roll bar can be lost.
Reducing subframe movement allows the bar to operate from a more stable mounting platform.
This can improve the effectiveness of:
- Uprated rear anti-roll bars
- Adjustable rear anti-roll bars
- Performance droplinks
- More aggressive suspension setups
Ideal with Lowering Springs & Coilovers
The MMX inserts also complement other suspension upgrades.
They work particularly well alongside:
- Lowering springs
- Sport dampers
- Height-adjustable spring kits
- Coilovers
- Adjustable droplinks
- Performance anti-roll bars
- Suspension bushes
- Chassis braces
Once spring and damper control has been improved, reducing subframe movement helps the rest of the suspension work more consistently.
Fast-Road Benefits
For fast-road use, the MMX inserts provide a noticeable improvement in rear chassis response without requiring an extreme suspension setup.
They are especially well suited to drivers who want:
- More direct handling
- Better rear-end stability
- Improved chassis feedback
- Minimal additional NVH
- OEM-style ride quality
Track-Day Benefits
On track, lateral and longitudinal loads are significantly greater than during normal road use.
This increases the amount of movement within compliant rubber mounts.
The MMX inserts help reduce that movement, making them particularly useful for:
- Track-day cars
- Semi-slick tyre setups
- High-grip road tyres
- Corner-weighted suspension
- Upgraded anti-roll bars
- Performance geometry
Simple Installation
MMX states that installation can typically be completed in under one hour.
The rear subframe remains installed in the vehicle.
The inserts are fitted into the factory rubber mounts without requiring complete subframe removal.
This makes the upgrade much simpler than replacing all four subframe bushes.
Fully Reversible
No permanent modification to the chassis or rear subframe is required.
The inserts can be removed later if the vehicle needs to be returned to its original configuration.
This makes them an attractive option for owners who want improved chassis response without committing to permanent solid mounts.
BMW F20 / F21 1 Series
The MMX Billet Rear Subframe Inserts are compatible with BMW F20 and F21 1 Series models.
This includes petrol, diesel, manual and automatic applications.
For performance models such as the M135i and M140i, the inserts are especially useful for reducing movement under acceleration and cornering.
BMW F22 / F23 2 Series
The inserts are suitable for BMW F22 2 Series Coupe and F23 2 Series Convertible models.
They provide the same reduction in rear subframe movement and improved suspension precision.
Performance applications such as the M235i and M240i can particularly benefit from the increased rear-end stability.
BMW F30 / F31 3 Series
The MMX inserts are compatible with BMW F30 3 Series Saloon and F31 3 Series Touring models.
For fast-road and modified 3 Series builds, they help provide a more stable foundation for the rear suspension.
BMW F32 / F34 4 Series
The kit is also listed for compatible BMW F32 and F34 F3X applications.
Please confirm exact chassis specification before ordering, particularly across different 4 Series body styles.
Compatibility
Designed for BMW F2X and F3X models including:
- BMW F20 1 Series
- BMW F21 1 Series
- BMW F22 2 Series
- BMW F23 2 Series Convertible
- BMW F30 3 Series
- BMW F31 3 Series Touring
- BMW F32 4 Series
- BMW F34
Model years:
- 2011–2019
MMX lists compatibility with:
- All model variants
- All engine codes
- Petrol models
- Diesel models
- Manual transmissions
- Automatic transmissions
Please confirm exact vehicle specification before ordering.

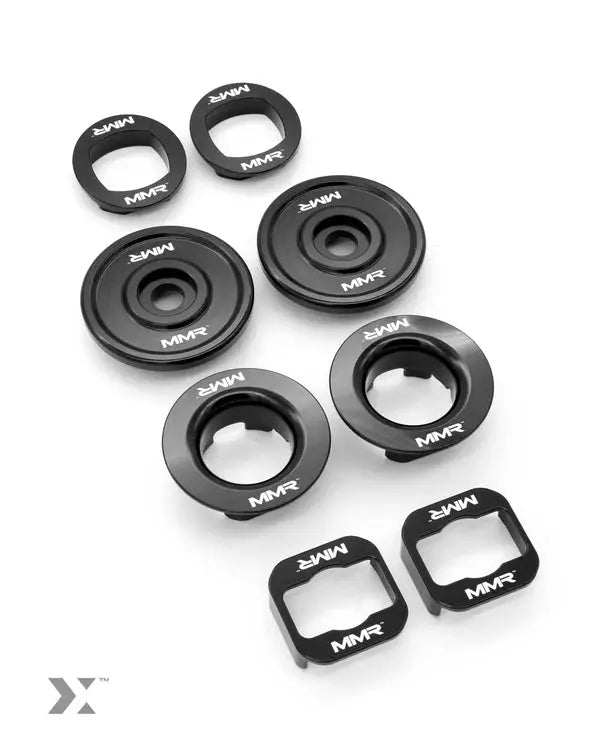

What's Included?
The MMX Billet Rear Subframe Insert Kit includes:
- CNC-machined 6061-T6 billet aluminium rear subframe inserts
- Inserts for the four factory rear subframe mounts
- Required MMX-specific installation components
Supplied as a complete vehicle kit.
