ST XTA plus 3 coilover suspension, galvanised steel (damping adjustable with top mounts) - BMW 1 Series E81 / E82 / E87
Tax included. Shipping calculated at checkout
ST XTA Plus 3 Coilovers – BMW 1 Series E81 / E82 / E87
Upgrade your BMW 1 Series with ST XTA Plus 3 Coilovers, the most advanced suspension system in the ST range, combining adjustable ride height, three-way damping adjustment and aluminium uniball top mounts for a highly tuneable fast-road and track-focused setup.
Developed using KW Automotive engineering, the XTA Plus 3 gives significantly greater control over suspension behaviour than the ST X, XA or conventional XTA, allowing separate adjustment of rebound, low-speed compression and high-speed compression damping.
ST part number:
1820220839
3-Way Adjustable Damping
The defining feature of the ST XTA Plus 3 is its independently tuneable damping system.
Adjustment includes:
- 18 clicks of low-speed rebound damping
- 24 clicks of low-speed compression damping
- 24 clicks of high-speed compression damping
This provides substantially more setup flexibility than a conventional single-adjustable coilover.
Low-Speed Rebound Adjustment
Rebound damping controls how quickly the suspension extends again after being compressed.
Adjusting rebound can help fine-tune:
- Body control
- Steering response
- Weight transfer
- Cornering behaviour
- Ride characteristics
This makes it possible to tailor the car more closely to road conditions, tyre choice and driver preference.
Low-Speed Compression Adjustment
Low-speed compression adjustment primarily affects suspension movement created by chassis inputs rather than sharp bumps.
It can be used to influence:
- Body roll
- Brake dive
- Squat under acceleration
- Weight transfer
- Chassis support during direction changes
This allows the driver to change how supported and responsive the car feels during more deliberate suspension movements.
High-Speed Compression Adjustment
High-speed compression relates to faster damper movements caused by sharper bumps, kerbs and road imperfections.
Being able to adjust this independently provides additional control over how the suspension responds to more sudden impacts without necessarily changing the slower chassis movements controlled by low-speed compression.
This separation is particularly useful for more advanced road and track setups.

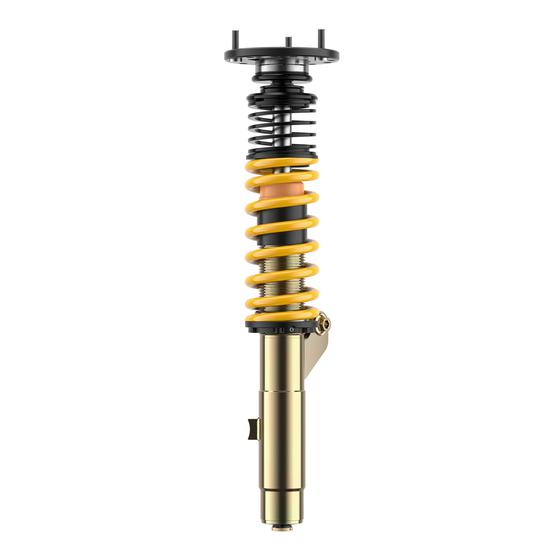

Aluminium Uniball Top Mounts
The ST XTA Plus 3 includes aluminium uniball top mounts where permitted by the vehicle application.
On compatible front axles, these provide adjustable camber and a more direct mounting arrangement.
Potential benefits include:
- Adjustable front camber
- Greater geometry flexibility
- More direct steering response
- Improved tyre contact during cornering
- Greater suitability for track-focused alignment settings
The exact adjustment available depends on the vehicle application.
Adjustable Ride Height
Ride height can be continuously adjusted within the approved range.
For BMW E81 / E87 applications:
- Front lowering: approximately 35–65mm
- Rear lowering: approximately 35–65mm
- Maximum front axle load: 920kg
- Maximum rear axle load: 1060kg
For BMW E82 Coupe applications:
- Front lowering: approximately 30–55mm
- Rear lowering: approximately 25–50mm
- Maximum front axle load: 945kg
- Maximum rear axle load: 1070kg
The vehicle should always be adjusted within the approved range while retaining adequate suspension travel and tyre clearance.

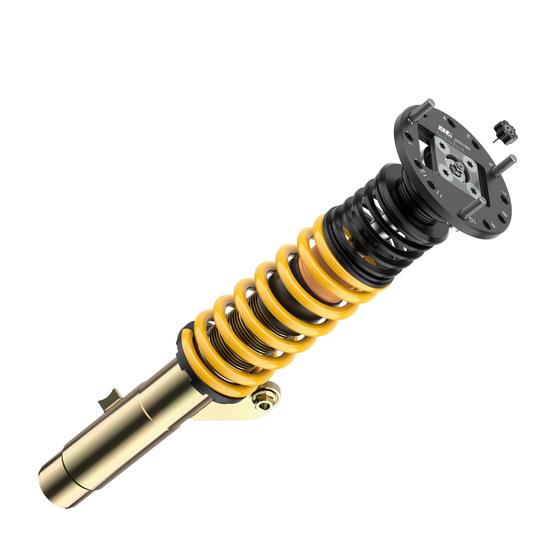

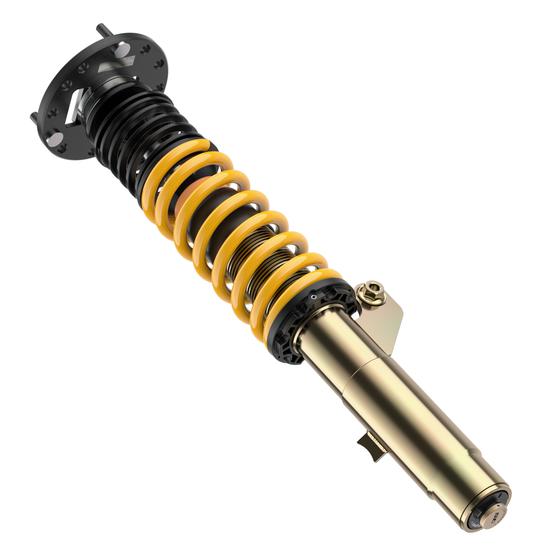

Galvanized Steel Construction
The XTA Plus 3 uses galvanized steel coilover struts with additional corrosion-resistant coating.
Key features include:
- Galvanized steel struts
- Additional corrosion protection
- Threaded ride-height adjustment
- Composite spring platforms
- Race spring system
- Elastomer bump stops
- Dust protection
- Aluminium uniball top mounts where applicable
ST also uses a low-friction twin-tube damper design developed with KW engineering.
Compatibility – Please Check Carefully
ST part number 1820220839 is listed for selected rear-wheel-drive BMW 1 Series E8x applications.
Compatible chassis include:
- BMW 1 Series E81 Hatch

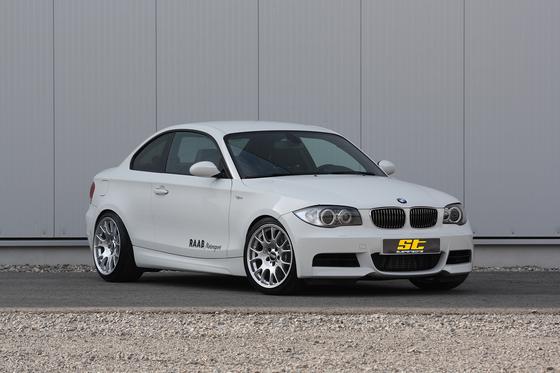

- BMW 1 Series E82 Coupe
- BMW 1 Series E87 Hatch
Published fitment data includes:
BMW E81:
- 116d
- 116i
- 118d
- 118i
- 120d
- 120i
- 123d
- 130i
BMW E87:
- 116d
- 116i
- 118d
- 118i
- 120d
- 120i
- 123d
- 130i
BMW E82:
- 118d
- 120d
- 120i
- 123d
- 125i
- 128i
- 135i
Exact compatibility still depends on engine, production date, drivetrain and axle loads.
Important Fitment Restrictions
This kit is not suitable for:
- Four-wheel-drive / xDrive models
ST also notes that wheel spacers may be required when using certain original wheel and tyre combinations to provide sufficient clearance between the wheel and suspension components.
Before ordering, please confirm:
- Exact chassis
- Engine variant
- Production year
- Front axle load
- Rear axle load
- Rear-wheel-drive configuration
- Wheel and tyre specification
If you're unsure whether ST 1820220839 is correct for your BMW, contact The Rosso Corsa Collective with your registration or vehicle details and we can help confirm fitment.
ST X vs XA vs XTA vs XTA Plus 3
ST X:
- Adjustable ride height
- Fixed damping
ST XA:
- Adjustable ride height
- Adjustable rebound damping
ST XTA:
- Adjustable ride height
- Adjustable rebound damping
- Aluminium uniball top mounts with camber adjustment where applicable
ST XTA Plus 3:
- Adjustable ride height
- 18-click low-speed rebound adjustment
- 24-click low-speed compression adjustment
- 24-click high-speed compression adjustment
- Aluminium uniball top mounts with camber adjustment where applicable
The XTA Plus 3 therefore provides substantially greater suspension tuning capability than the other ST ranges.
Designed for Fast Road, Track & Clubsport Use
The ST XTA Plus 3 is particularly well suited to:
- Fast-road builds
- Track days
- Clubsport cars
- Performance-focused road cars
- Higher-grip tyre setups
- Modified suspension geometry
- Drivers wanting detailed damping control
Its independent compression and rebound adjustment makes it particularly useful where the car needs to be tuned around different circuits, road conditions or tyre configurations.

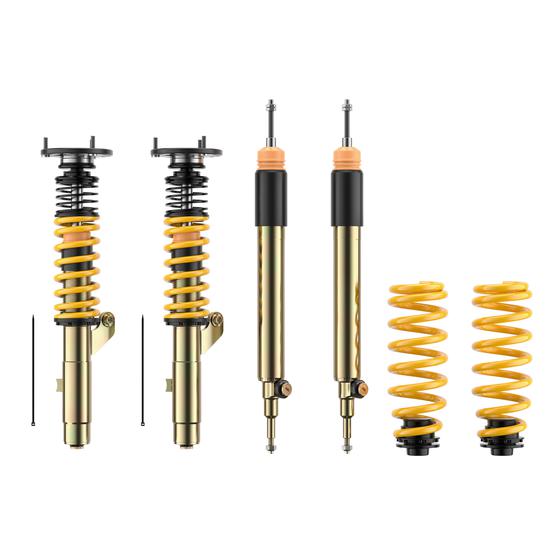

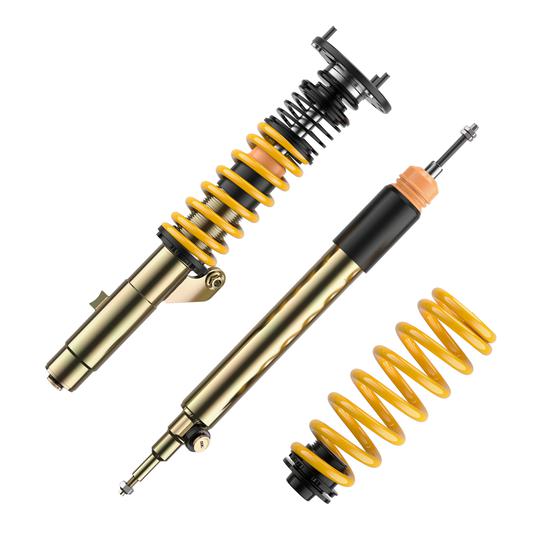

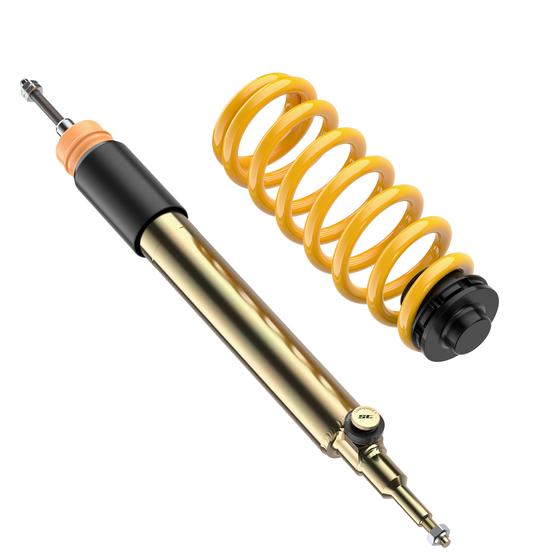

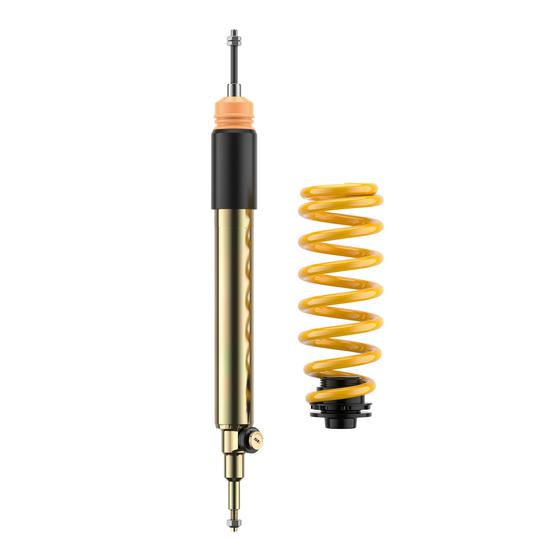

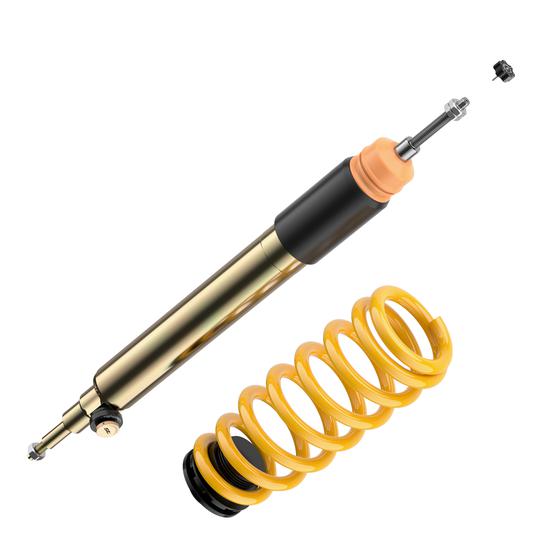

Product Image & Configuration Note
Product images are generic and are intended for illustration purposes only.
The exact components supplied can vary depending on vehicle application, including:
- Top mount design
- Camber adjustment
- Spring configuration
- Damper layout
- Rear height adjustment
- Mounting hardware
If you have specific requirements such as top mounts, geometry adjustment or exact kit configuration, please contact The Rosso Corsa Collective before ordering so the specification can be confirmed.
Professional Installation Recommended
Professional installation is recommended.
Following installation, the vehicle should receive a full wheel alignment and geometry setup to ensure correct handling, tyre wear and suspension performance.
Because the XTA Plus 3 provides extensive damping and geometry adjustment, changes should ideally be made systematically from a known baseline.
