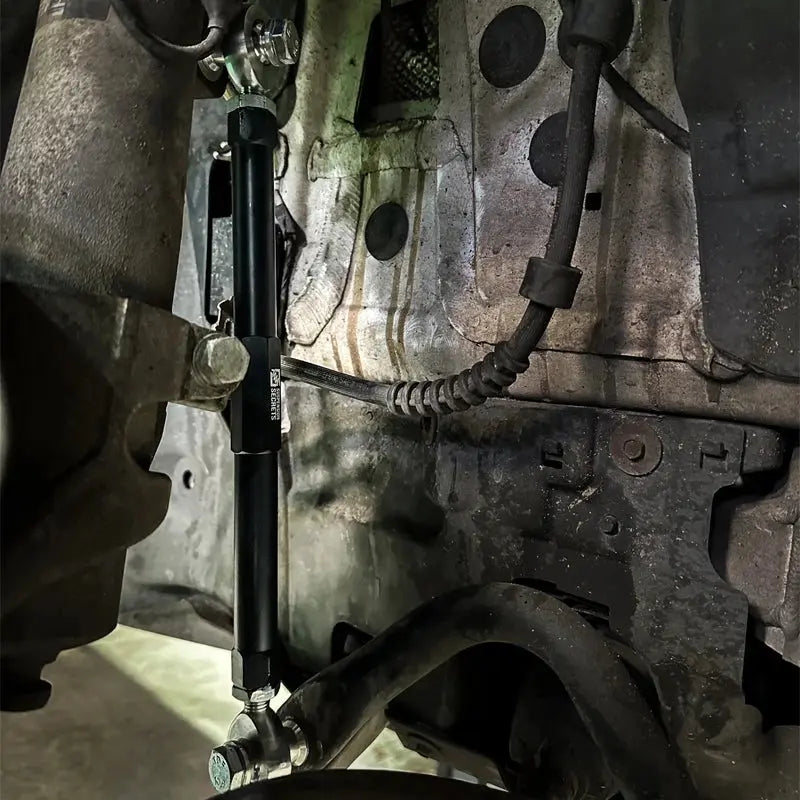

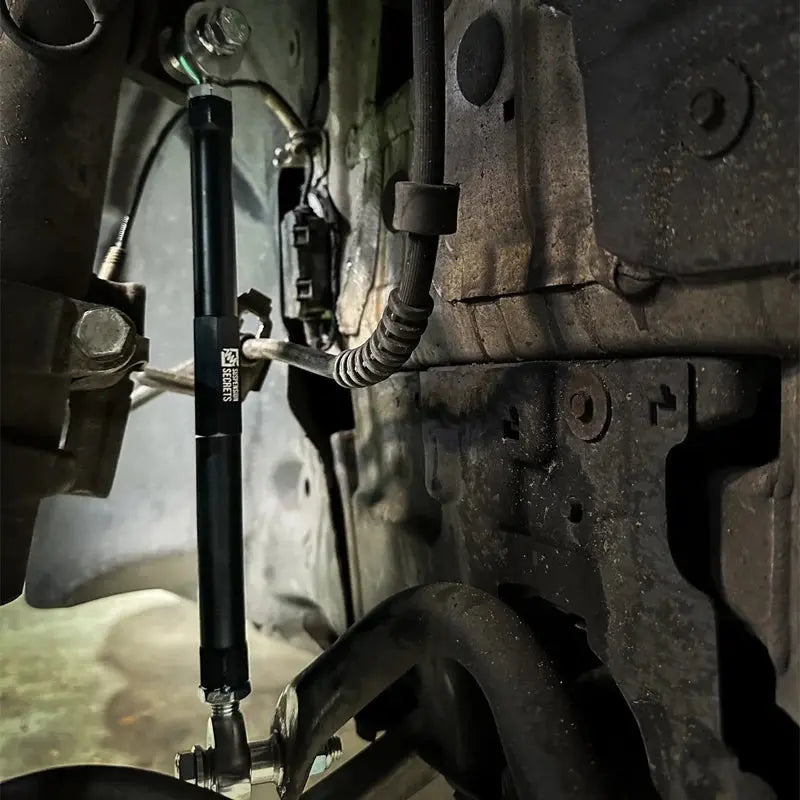

Suspension Secrets Adjustable Front Drop Links / End Links - BMW E90/E92 M3

Suspension Secrets Adjustable Front Drop Links / End Links – BMW E90 / E92 M3

Correct anti-roll bar positioning and improve suspension consistency with Suspension Secrets Adjustable Front Drop Links for the BMW E90 and E92 M3.

Lowering the E9x M3 with springs or coilovers can significantly improve handling, but changing the ride height also changes the operating position of the anti-roll bar. In some cases, this can bring the anti-roll bar into contact with nearby suspension or chassis components.

Suspension Secrets Adjustable Front Drop Links allow the anti-roll bar position to be corrected after lowering, helping maintain proper clearance and more consistent suspension behaviour.

They are also especially useful on corner-weighted cars, where small differences in ride height can introduce unwanted tension into the anti-roll bar.

Why Upgrade the Front Drop Links?

Adjustable front drop links give you much greater control over how the anti-roll bar is positioned and loaded.

Potential benefits include:

• Corrected anti-roll bar position after lowering
• Reduced risk of anti-roll bar contact
• Removal of unwanted anti-roll bar preload
• Improved left-to-right handling consistency
• Better compatibility with corner weighting
• Greater suspension setup flexibility
• More predictable chassis behaviour

Key Features

• Designed for BMW E90 / E92 M3
• Fully adjustable design
• Helps prevent suspension and chassis component contact
• Allows precise anti-roll bar positioning
• Useful for lowered cars
• Ideal for corner-weighted setups
• Helps remove unwanted anti-roll bar tension
• Easy to install and adjust
• Billet aircraft-grade 6082 T6 aluminium construction
• Corrosion-resistant 316 stainless steel components
• Motorsport-spec bearings
• Designed and manufactured in the UK

Why Lowering Changes Anti-Roll Bar Position

When ride height is reduced, the suspension no longer sits in exactly the same position relative to the anti-roll bar.

This can alter:

• Drop link angle
• Anti-roll bar resting position
• Clearance around suspension components
• Anti-roll bar preload

On more heavily lowered cars, this can become a genuine fitment and handling issue.

Helps Prevent Component Contact

One of the main reasons for fitting adjustable drop links is to restore proper clearance.

When the anti-roll bar sits in the wrong position, it can come into contact with:

• Suspension components
• Chassis sections
• Nearby hardware

Adjustable drop links allow the bar to be repositioned to reduce the risk of unwanted contact.

Complete Control Over Anti-Roll Bar Positioning

Because the links are adjustable, the anti-roll bar can be set more accurately for the finished ride height of the car.

This is especially useful on:

• Lowering spring setups
• Coilover-equipped cars
• Track-focused ride heights
• Cars with altered suspension geometry

Useful After Corner Weighting

Corner weighting is used to improve chassis balance by fine-tuning ride height at each corner.

The result can be very small ride-height differences from side to side.

These differences can create tension in the anti-roll bar if fixed-length drop links are still being used.

Suspension Secrets Adjustable Front Drop Links allow this tension to be removed.

Reduces Anti-Roll Bar Preload

Unwanted anti-roll bar preload can make the car behave differently when turning left compared with turning right.

By adjusting the drop link lengths correctly, the anti-roll bar can sit in a neutral position at static ride height.

This can contribute to:

• More even handling
• Better chassis balance
• More predictable suspension response
• Improved corner-weighting accuracy

More Consistent Handling

With the anti-roll bar correctly positioned and free from unwanted preload, the front suspension can behave more consistently from side to side.

This is particularly valuable for:

• Fast-road driving
• Track use
• Corner-weighted setups
• Lowered performance cars

Ideal for Lowered E9x M3s

These drop links are especially relevant for cars fitted with:

• Lowering springs
• Height-adjustable spring kits
• Coilovers
• Track-oriented suspension setups

The lower or more heavily modified the car becomes, the more useful adjustable drop links can be.

Works Well With Uprated Anti-Roll Bars

Adjustable drop links are also useful alongside uprated anti-roll bars.

Correct positioning helps ensure the anti-roll bar is operating as intended rather than being preloaded or forced into an unsuitable angle.

They can therefore complement:

• OEM anti-roll bars
• H&R anti-roll bars
• Other compatible uprated anti-roll bars

Easy Adjustment

Suspension Secrets has designed the links to be straightforward to install and adjust.

This makes them practical for:

• Initial suspension setup
• Ride-height changes
• Corner-weighting adjustments
• Trackside geometry refinement

6082 T6 Aluminium Construction

The links are manufactured using billet aircraft-grade 6082 T6 aluminium.

This provides a strong and lightweight construction suited to demanding suspension applications.

316 Stainless Steel Components

Corrosion-resistant 316 stainless steel is used throughout the relevant hardware and adjustment components.

This helps provide durability in an exposed suspension environment.

Motorsport-Spec Bearings

Suspension Secrets uses motorsport-spec bearings to provide precise articulation and reliable operation under suspension load.

Designed & Manufactured in the UK

Suspension Secrets designs and manufactures its suspension components in the UK.

The drop links are developed specifically around the geometry and packaging requirements of the E9x M3 front suspension.

Road & Track Applications

These adjustable front drop links are suitable for:

• Daily-driven lowered cars
• Fast-road builds
• Clubsport setups
• Trackday cars
• Corner-weighted suspension setups

Professional Installation Recommended

Professional installation is recommended.

The drop links should be adjusted with the car at its finished ride height and ideally with the vehicle settled in its normal static condition.

Setup After Installation

For best results, the front anti-roll bar should be checked for:

• Correct resting position
• Adequate component clearance
• Equal loading
• Unwanted preload

On a corner-weighted car, final adjustment should be carried out as part of the complete suspension setup.

Vehicle Fitment

BMW M3 E90 / E92

Compatible models:

• BMW E90 M3 Saloon
• BMW E92 M3 Coupe

What's Included?

Each kit includes:

• 1 pair Suspension Secrets Adjustable Front Drop Links / End Links
