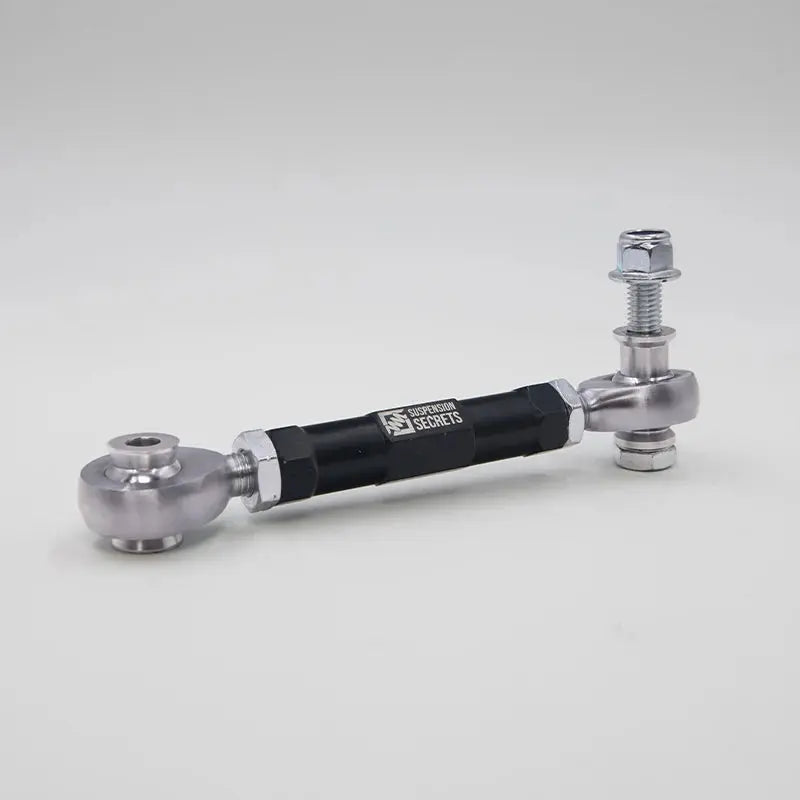

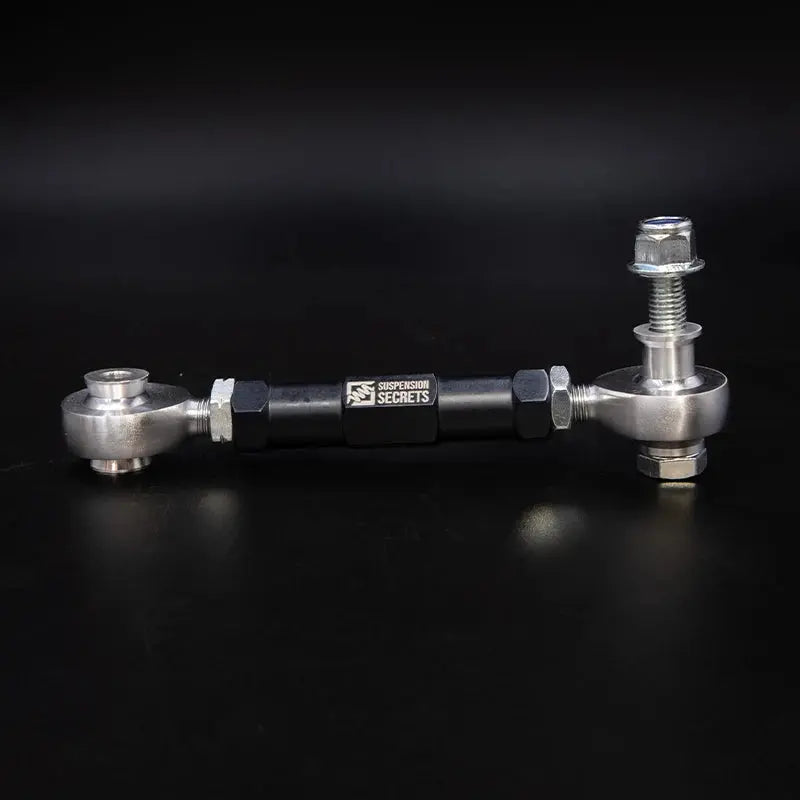

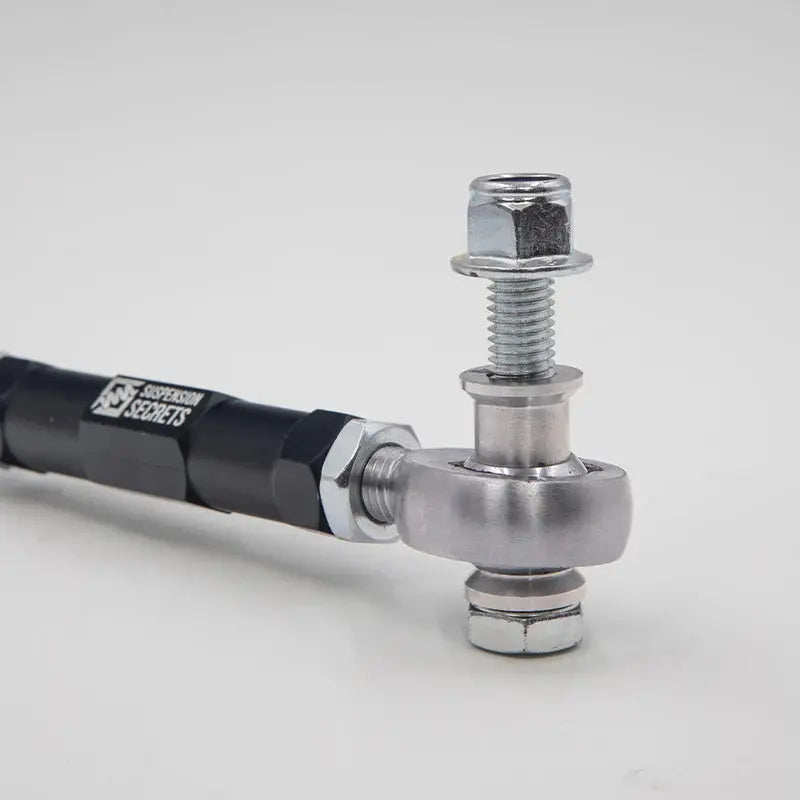

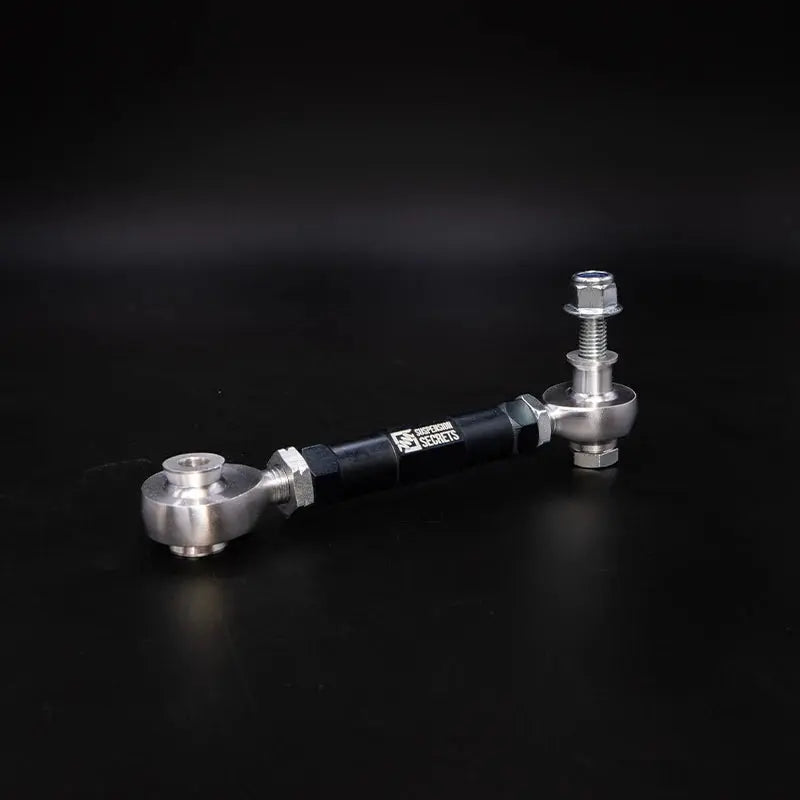

Suspension Secrets Adjustable Rear Drop Links / End Links – BMW E90 / E92 M3

Correct rear anti-roll bar positioning and improve chassis consistency with Suspension Secrets Adjustable Rear Drop Links for the BMW E90 and E92 M3.

Lowering the ride height with springs or coilovers can improve handling, but it also changes the resting position of the rear anti-roll bar. If the bar is pulled out of its intended position, it can place additional tension through the suspension and, in some cases, come into contact with surrounding chassis or suspension components.

Suspension Secrets Adjustable Rear Drop Links allow the rear anti-roll bar to be repositioned correctly after lowering, helping restore proper clearance and more consistent handling behaviour.

They are also particularly useful on corner-weighted cars, where small ride-height differences from side to side can introduce unwanted anti-roll bar preload.

Why Upgrade the Rear Drop Links?

Adjustable rear drop links give you much greater control over the position and loading of the rear anti-roll bar.

Potential benefits include:

• Corrected rear anti-roll bar position after lowering
• Reduced risk of anti-roll bar contact
• Removal of unwanted anti-roll bar preload
• Improved left-to-right handling consistency
• Better compatibility with corner weighting
• Improved rear axle stability
• Greater suspension setup flexibility

Key Features

• Designed for BMW E90 / E92 M3
• Fully adjustable design
• Allows precise rear anti-roll bar positioning
• Helps restore correct anti-roll bar geometry after lowering
• Reduces unwanted anti-roll bar tension
• Helps improve cornering stability
• Useful for corner-weighted setups
• Easy to install and adjust
• Billet aircraft-grade 6082 T6 aluminium construction
• Corrosion-resistant 316 stainless steel components
• Motorsport-spec bearings
• Designed and manufactured in the UK

Why Lowering Changes Rear Anti-Roll Bar Position

Reducing ride height changes the relationship between the suspension arms, drop links and anti-roll bar.

This can alter:

• Drop link angle
• Rear anti-roll bar position
• Clearance around suspension components
• Anti-roll bar preload

The more the car is lowered, the more important it becomes to ensure the rear anti-roll bar is still sitting correctly.

Helps Prevent Component Contact

If the rear anti-roll bar is pulled too far from its intended position, it can come into contact with surrounding suspension or chassis components.

Adjustable drop links allow the position of the bar to be corrected to suit the car's finished ride height.

This helps maintain suitable clearance throughout suspension movement.

Restores Rear Anti-Roll Bar Position

The Suspension Secrets links are fully adjustable, allowing the rear anti-roll bar to be reset closer to its intended operating position after the car has been lowered.

This helps the bar operate more consistently and reduces the chance of unwanted tension being introduced into the rear suspension.

Improved Cornering Stability

A correctly positioned anti-roll bar can contribute to more consistent rear axle behaviour.

If the bar is preloaded or sitting at an incorrect angle, handling can feel less predictable.

Correcting the setup can help provide:

• More stable cornering
• Better rear axle consistency
• More predictable chassis balance
• Improved confidence during faster driving

Useful for Corner Weighting

Corner weighting fine-tunes ride height at each corner of the vehicle to improve chassis balance.

This can introduce very small differences in static ride height from left to right.

With fixed-length drop links, these differences can create tension in the anti-roll bar even when the car is stationary.

Adjustable drop links allow this tension to be removed.

Reduces Anti-Roll Bar Preload

Unwanted preload can cause the car to behave differently when cornering left compared with right.

By adjusting the drop link lengths correctly, the rear anti-roll bar can sit in a more neutral position at static ride height.

This can improve:

• Left-to-right handling consistency
• Cornering balance
• Suspension predictability
• Accuracy of the corner-weighted setup

More Consistent Rear Axle Behaviour

With the rear anti-roll bar correctly positioned and free from unnecessary preload, the suspension can respond more consistently from side to side.

This is particularly useful on:

• Fast-road cars
• Clubsport builds
• Trackday cars
• Corner-weighted suspension setups

Ideal for Lowered E9x M3s

These drop links are particularly useful on cars fitted with:

• Lowering springs
• Height-adjustable spring kits
• Coilovers
• Track-focused suspension setups

They become increasingly useful as ride height and suspension geometry move further away from factory specification.

Works Well With Uprated Anti-Roll Bars

Adjustable rear drop links can also be useful when fitting aftermarket anti-roll bars.

Correct positioning helps the bar operate as intended rather than being loaded or held at an unsuitable angle.

They can complement:

• OEM anti-roll bars
• H&R anti-roll bars
• Other compatible uprated anti-roll bars

Easy Adjustment

Suspension Secrets has designed the links to be straightforward to install and adjust.

This makes them practical for:

• Initial suspension setup
• Ride-height changes
• Corner-weighting adjustments
• Track setup refinement

6082 T6 Aluminium Construction

The links are manufactured from billet aircraft-grade 6082 T6 aluminium.

This provides a strong and lightweight construction suitable for demanding suspension applications.

316 Stainless Steel Components

Corrosion-resistant 316 stainless steel is used throughout the relevant hardware and adjustment components.

This helps improve durability in an exposed rear suspension environment.

Motorsport-Spec Bearings

Suspension Secrets uses motorsport-spec bearings to provide precise articulation and reliable operation under load.

Designed & Manufactured in the UK

Suspension Secrets designs and manufactures its suspension components in the UK.

The rear drop links are developed around the geometry and packaging requirements of the E9x M3 rear suspension.

Road & Track Applications

These adjustable rear drop links are suitable for:

• Daily-driven lowered cars
• Fast-road builds
• Clubsport setups
• Trackday cars
• Corner-weighted E9x M3s

Professional Installation Recommended

Professional installation is recommended.

The drop links should be adjusted with the car at its finished ride height and with the suspension settled in its normal static position.

Setup After Installation

For best results, the rear anti-roll bar should be checked for:

• Correct resting position
• Adequate clearance
• Equal loading
• Unwanted preload

On corner-weighted cars, the final adjustment should be incorporated into the complete chassis setup.

Vehicle Fitment

BMW M3 E90 / E92

Compatible models:

• BMW E90 M3 Saloon
• BMW E92 M3 Coupe

What's Included?

Each kit includes:

• 1 pair Suspension Secrets Adjustable Rear Drop Links / End Links
