Suspension Secrets Adjustable Rear Toe Arms / Links - BMW E90/E92 M3

Suspension Secrets Adjustable Rear Toe Arms / Links – BMW E90 / E92 M3

Increase rear axle traction, stability and geometry control with Suspension Secrets Adjustable Rear Toe Arms / Links for the BMW E90 and E92 M3.

As rear camber is increased on the E9x M3, the available factory toe adjustment can become increasingly limited. This can make it difficult to achieve the desired combination of rear camber and toe, particularly on cars running more aggressive fast-road or track-focused geometry.

Suspension Secrets Adjustable Rear Toe Arms provide a much wider adjustment range than the standard BMW eccentric bolts, allowing increased rear camber to be used while still retaining the correct rear toe settings.

The arms are also solidly mounted, reducing unwanted flex under load and helping the rear axle remain more stable and responsive during hard driving.

Why Upgrade the Rear Toe Arms?

Rear toe has a major influence on how stable, predictable and responsive the rear axle feels.

The additional adjustment provided by these arms allows the rear geometry to be set more accurately around changes in:

• Rear camber
• Ride height
• Tyre choice
• Suspension setup
• Road or track use

Potential benefits include:

• Increased cornering stability
• Improved corner-exit traction
• Greater rear grip
• Wider toe adjustment range
• Better compatibility with increased rear camber
• More direct throttle response
• Reduced unwanted suspension flex
• More precise rear axle behaviour

Key Features

• Designed for BMW E90 / E92 M3
• Wider adjustment range than standard eccentric bolts
• Allows increased rear camber while maintaining suitable toe
• Solid-mounted construction
• Improved rear axle stability
• Increased traction
• Improved corner-exit response
• Easy adjustment when installed
• Requires only a 17mm spanner for adjustment
• Billet aircraft-grade 6082 T6 aluminium construction
• Corrosion-resistant 316 stainless steel components
• Motorsport-spec Fluro bearings
• Designed and manufactured in the UK

The Limitation of the Factory Rear Toe Adjustment

The standard E9x M3 rear suspension uses eccentric bolts to provide toe adjustment.

While this provides some flexibility in standard form, the available range can become restrictive once the rear camber is increased.

As more negative camber is applied, it can become difficult to achieve the desired rear toe setting using the factory adjustment alone.

This can prevent the chassis from being aligned correctly for more aggressive driving.

Wider Rear Toe Adjustment Range

Suspension Secrets Adjustable Rear Toe Arms provide a much wider adjustment range than the factory eccentric bolts.

This gives a geometry specialist far greater control over the final rear alignment.

The additional adjustment is particularly useful for:

• Lowered cars
• Fast-road setups
• Clubsport builds
• Trackday cars
• Semi-slick tyre setups
• Cars running increased rear camber

Increased Camber Without Compromising Toe

One of the biggest advantages of these arms is the ability to increase rear camber without losing control over rear toe.

This is important because camber and toe need to work together.

An aggressive camber setting with incorrect toe can negatively affect:

• Stability
• Traction
• Tyre wear
• Cornering confidence

The wider adjustment range allows both settings to be configured more effectively.

Increased Cornering Grip

More accurate rear geometry allows the tyres to work more effectively through loaded corners.

By retaining the correct toe while increasing camber, the rear tyres can maintain a more useful contact patch.

This can help provide:

• Greater mid-corner grip
• Better rear axle confidence
• More consistent cornering behaviour
• Improved chassis balance

Improved Cornering Stability

Rear toe has a significant effect on how settled the car feels when cornering at speed.

More precise toe control can help the rear axle feel:

• More stable
• More predictable
• Better connected
• More consistent under load

This becomes increasingly important on cars running high-grip tyres or more aggressive suspension setups.

Improved Corner-Exit Traction

Correct rear toe can also improve how effectively the M3 puts power down when exiting a corner.

The solid-mounted design helps reduce unwanted movement in the suspension arms under acceleration.

Potential benefits include:

• Improved traction
• Better throttle response
• Increased rear stability under power
• More predictable corner exits

Solid-Mounted Design

The arms are solidly mounted rather than relying on soft rubber bushes.

This helps reduce unwanted movement as the suspension is loaded.

Less flex means the rear geometry remains closer to the settings chosen during alignment.

Improved Throttle Response Through the Chassis

Because the rear suspension moves less under load, the car can feel more directly connected to throttle inputs.

This can make the rear axle feel more responsive when power is applied.

Potential benefits include:

• Sharper rear-end response
• Better feedback
• Improved traction control
• More predictable power delivery

Easy Adjustment

The Suspension Secrets Rear Toe Arms are designed to be easy to adjust while installed.

Adjustment requires only a 17mm spanner, making geometry changes quicker and more straightforward.

This is especially useful for:

• Trackside setup changes
• Geometry refinement
• Ride height changes
• Tyre changes

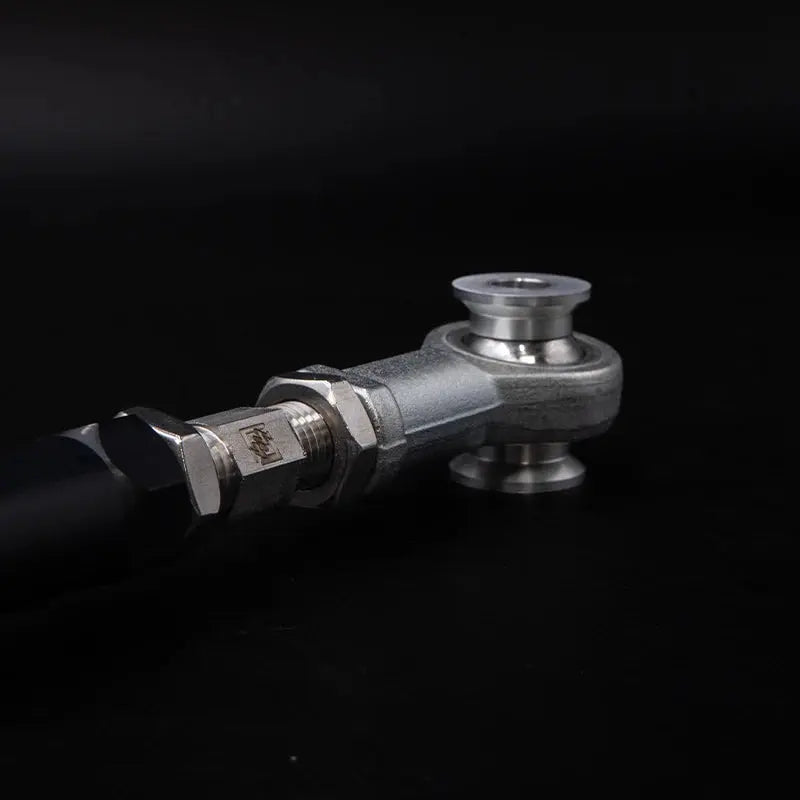

Motorsport-Spec Fluro Bearings

Suspension Secrets uses motorsport-spec Fluro bearings to provide precise articulation and reduced unwanted compliance.

This helps maintain more consistent suspension geometry during hard driving.

6082 T6 Aluminium Construction

The arms are manufactured from billet aircraft-grade 6082 T6 aluminium.

This provides a strong and lightweight structure suitable for performance suspension applications.

316 Stainless Steel Components

Corrosion-resistant 316 stainless steel is used throughout the relevant hardware and adjustment components.

This helps provide long-term durability in an exposed suspension environment.

Designed & Manufactured in the UK

Suspension Secrets designs and manufactures its suspension products in the UK.

The components are developed around the specific geometry and handling characteristics of the vehicle platform.

NVH Considerations

Suspension Secrets states that these solid-mounted rear toe arms do not increase noise, vibration or harshness.

For RCC, we would describe them as being designed to retain good road refinement despite their more direct, solid-mounted construction.

This makes them suitable for both road and track-focused builds.

Works Well With Rear Camber Arms

These toe arms are especially useful when paired with adjustable rear camber arms.

Together, they allow greater control over:

• Rear camber
• Rear toe
• Tyre contact
• Rear axle balance
• Track geometry

This combination is particularly useful on cars running more aggressive alignment settings.

Works Well With Other Suspension Upgrades

The arms also work well alongside:

• Adjustable rear camber arms
• Adjustable rear traction arms
• Adjustable rear upper third links
• Solid rear control arm bushes
• Solid rear subframe bushes
• Coilovers
• Performance geometry setups

Road & Track Applications

These arms are suitable for:

• Daily-driven performance cars
• Fast-road E9x M3s
• Clubsport builds
• Trackday cars
• Semi-slick tyre setups
• Dedicated performance builds

Professional Installation Recommended

Professional installation is strongly recommended.

After fitting, the car should receive a full rear geometry setup.

Geometry Setup Essential

Rear toe should be set as part of a complete four-wheel alignment.

The final settings should consider:

• Rear camber
• Ride height
• Suspension setup
• Tyre specification
• Road versus track use
• Desired chassis balance

Vehicle Fitment

BMW M3 E90 / E92

Compatible models:

• BMW E90 M3 Saloon
• BMW E92 M3 Coupe

What's Included?

Each kit includes:

• 1 pair Suspension Secrets Adjustable Rear Toe Arms / Links
