Suspension Secrets CS+ Handling Pack 1 (Fast Road) - BMW F80 M3 / F82 M4

Suspension Secrets CS+ Handling Pack 1 (Fast Road) – BMW F80 M3 / F82 M4

Take the first step towards a sharper, more capable fast-road setup with the Suspension Secrets CS+ Handling Pack 1 for the BMW F80 M3 and F82 M4.

From the factory, both the front and rear axles are limited in key areas. The front axle offers no meaningful camber adjustment and does not provide enough negative camber for harder road driving, while the rear toe arms use compliant rubber bushes and offer a restricted adjustment range.

These limitations can contribute to understeer, reduced steering feel, inconsistent rear geometry and premature outer-edge tyre wear.

The CS+ Handling Pack addresses both ends of the car with Suspension Secrets Camber Plates and Adjustable Rear Toe Arms, creating a more responsive, stable and adjustable chassis while retaining strong road usability.

Why Choose the CS+ Handling Pack?

This package is designed for drivers who want to improve the road performance of their F80 M3 or F82 M4 without moving immediately into a full track-focused suspension setup.

Potential benefits include:

• Increased mid-corner grip
• Reduced understeer
• Improved steering feel
• Greater steering response
• Increased front camber
• Increased positive caster
• Full rear toe adjustment
• Improved corner-exit traction
• Better straight-line stability
• Improved high-speed confidence
• Reduced rear suspension arm flex
• More consistent tyre wear
• Greater geometry control

What's Included?

The Suspension Secrets CS+ Handling Pack includes:

• Suspension Secrets Adjustable Camber Plates
• Suspension Secrets Adjustable Rear Toe Arms

Together, these upgrades address two of the main geometry limitations of the standard F80/F82 chassis.

The Front Axle Limitation

The factory front suspension provides very limited camber adjustment.

For spirited driving, the standard camber setting can leave the outside front tyre overloaded through corners.

This can contribute to:

• Understeer
• Reduced front-end grip
• Vague steering feedback
• Premature outer-edge tyre wear

Increasing negative front camber helps the tyre maintain a more effective contact patch under cornering load.

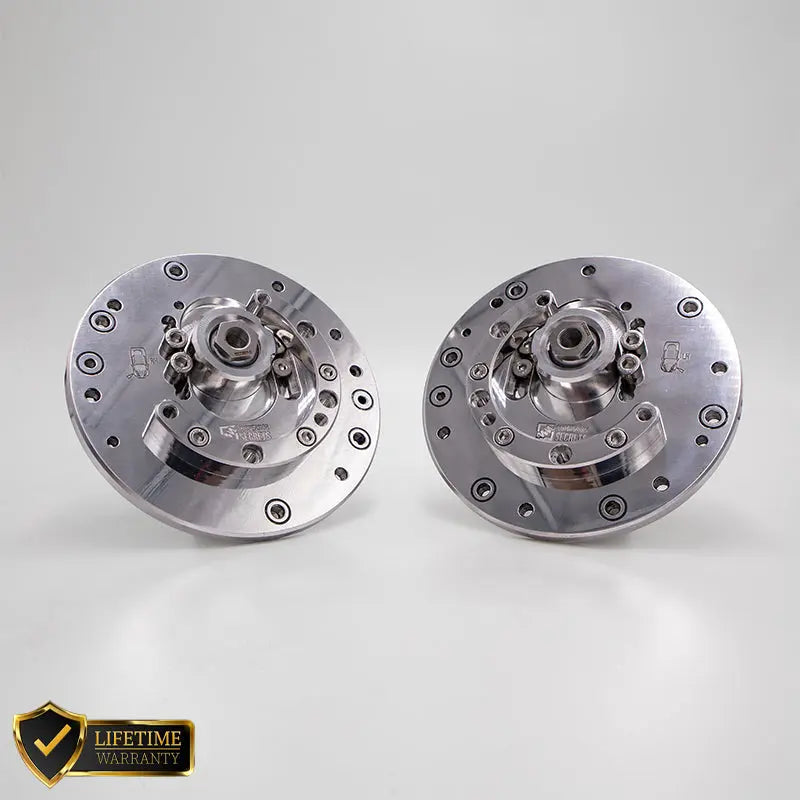

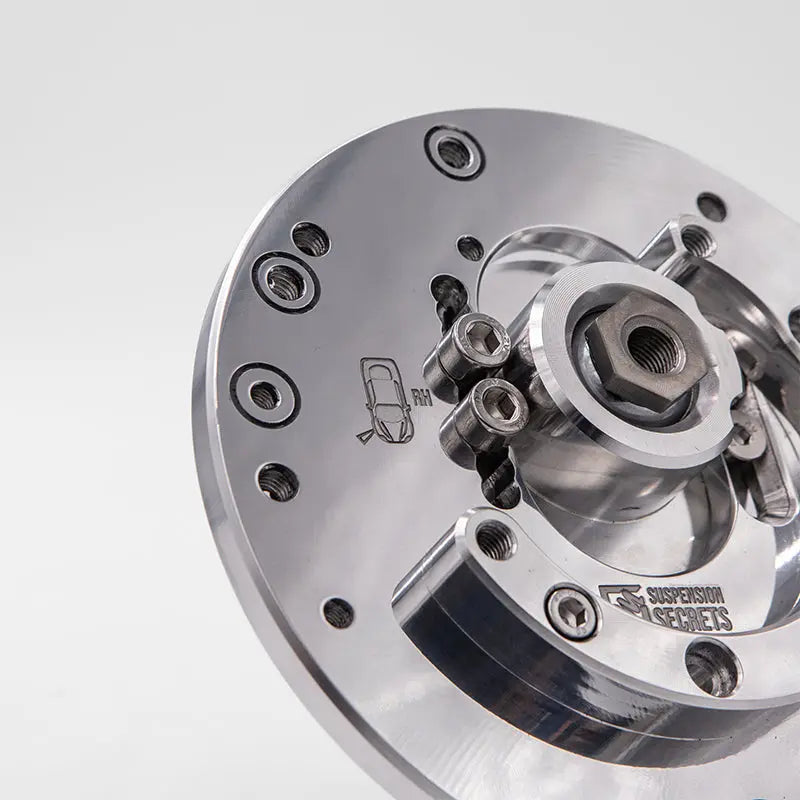

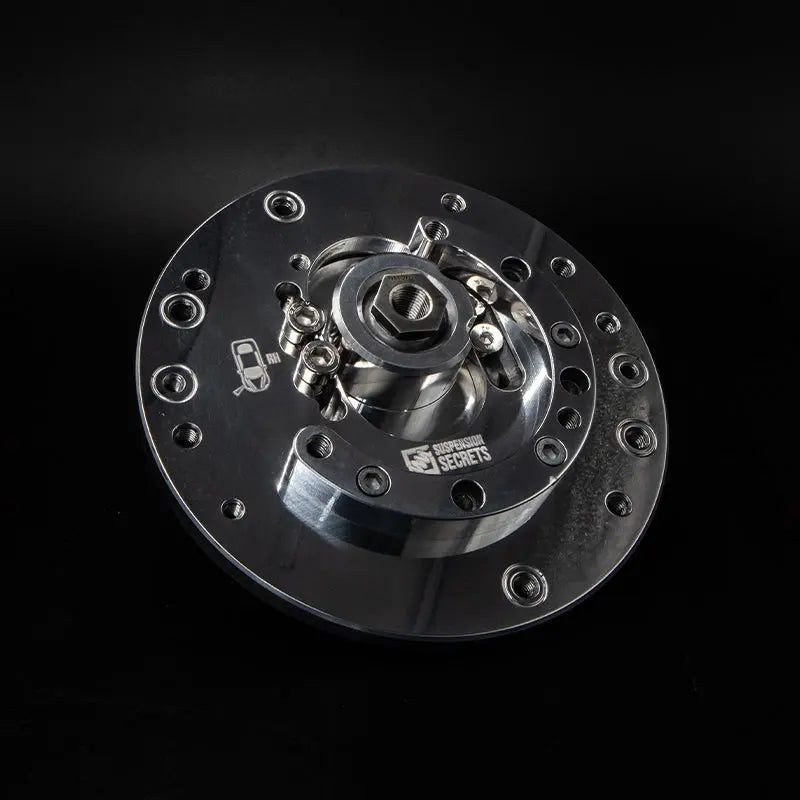

Suspension Secrets Camber Plates

The included camber plates provide a much wider range of front camber adjustment.

This allows the geometry to be tailored around:

• Fast-road driving
• Lowered suspension
• Performance tyres
• Occasional track use
• Future chassis upgrades

The adjustment range can provide camber levels similar to or beyond those found on more focused BMW M models such as the CS and CSL.

Beyond the CS / CSL Approach

BMW uses revised front geometry on more focused CS and CSL variants to increase front-end grip and reduce understeer.

The Suspension Secrets approach provides greater flexibility by allowing front camber to be adjusted rather than relying on a fixed geometry change.

This means the setup can be tailored around the individual car and how it is used.

Additional Positive Caster

The camber plates also incorporate additional positive caster.

Caster can improve:

• Steering self-centring
• Steering feel
• Front axle feedback
• High-speed confidence
• Dynamic camber gain

This gives the front end a more communicative and engaging feel than standard.

Dynamic Camber Gain

Positive caster creates additional useful negative camber as steering angle increases.

This helps the outside front tyre maintain better contact with the road during cornering.

Potential benefits include:

• Increased mid-corner grip
• Reduced understeer
• Better front tyre utilisation
• Improved steering response

Improved Front Tyre Wear

Insufficient front camber can result in the outside edges of the tyres carrying excessive load during hard cornering.

With the geometry correctly configured, the tyre can work more evenly across its tread.

This can help reduce excessive front outer-edge wear during spirited driving.

Compatible With Standard Suspension

The Suspension Secrets camber plates are fully compatible with:

• Standard springs
• Standard dampers
• Lowering springs
• Compatible coilovers using OEM-style top mounts

This allows the CS+ package to be fitted to cars at a wide range of stages of modification.

The Rear Toe Arm Limitation

At the rear, the factory toe arms use compliant rubber bushes and offer limited adjustment.

Under acceleration and cornering loads, bush flex can allow the rear toe angle to change dynamically.

This can reduce:

• Traction
• Rear axle stability
• Geometry consistency
• Driver confidence

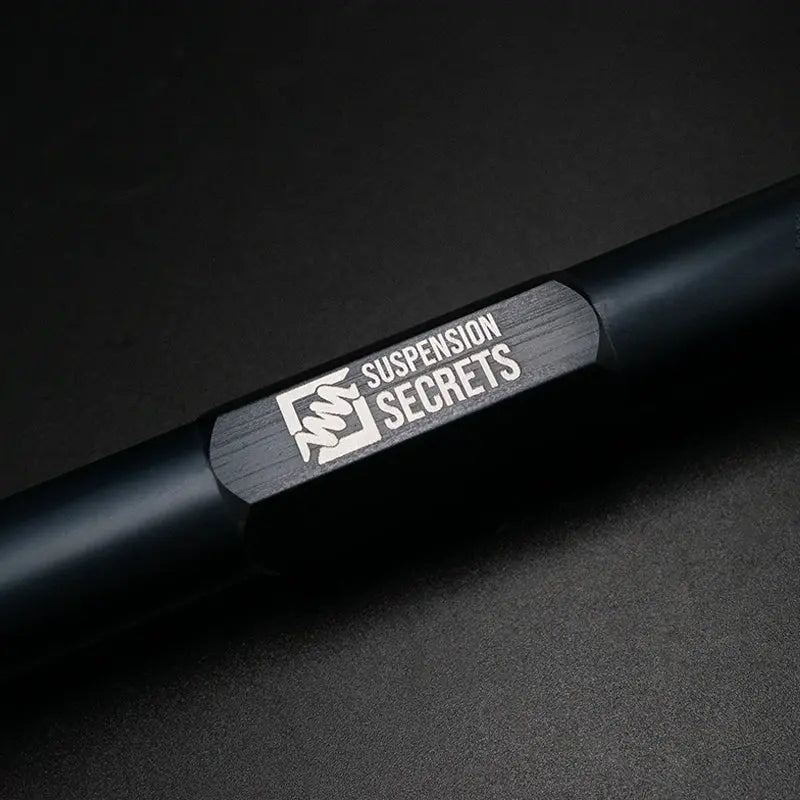

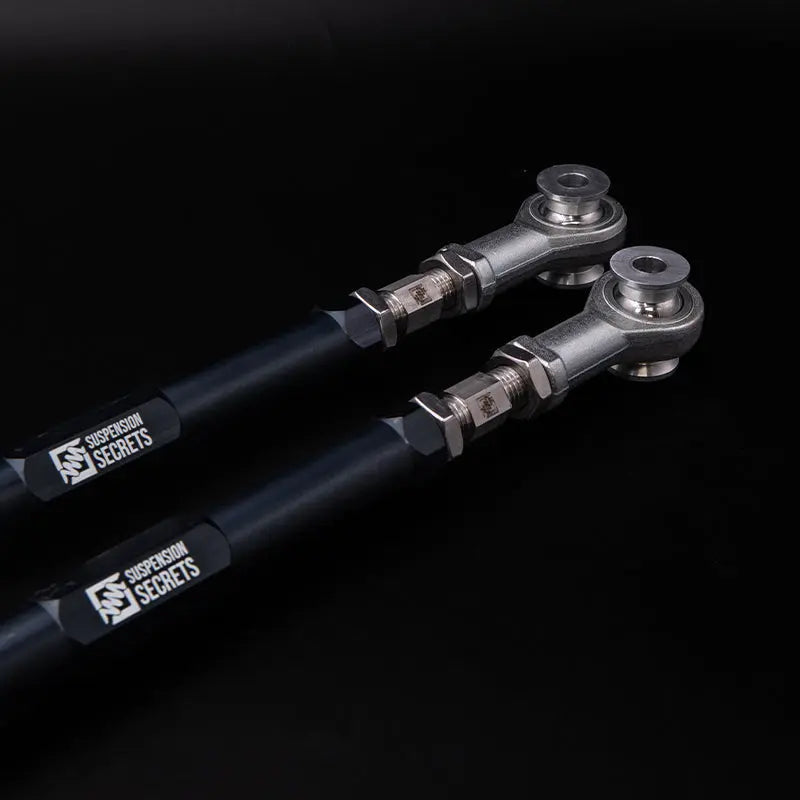

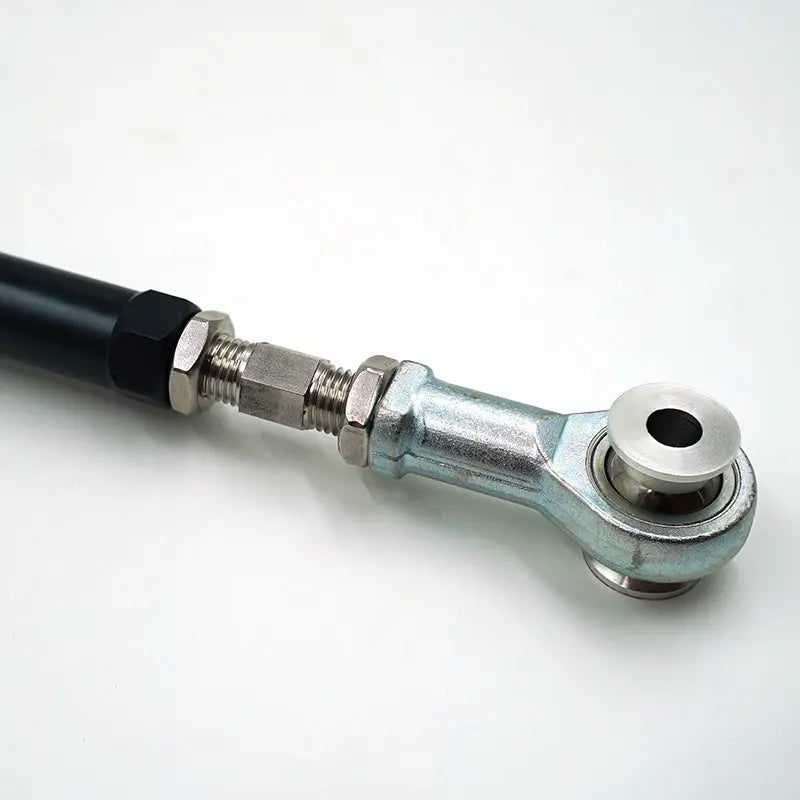

Adjustable Rear Toe Arms

Suspension Secrets Adjustable Rear Toe Arms replace the compliant factory arrangement with solid-mounted arms using rose joints.

This reduces unwanted flex and allows rear toe to remain more consistent under load.

Potential benefits include:

• Improved rear axle stability
• Increased traction
• Better throttle response
• More predictable corner exits
• Improved high-speed confidence

Increased Rear Toe Adjustment

The adjustable rear toe arms also provide a wider range of adjustment than the standard components.

This means the rear geometry can be configured more accurately without compromising between camber and toe.

The rear axle can therefore be set up around the exact requirements of the car.

Improved Corner-Exit Traction

More consistent rear toe and reduced arm flex can help the rear tyres maintain traction as power is applied.

This can provide:

• Better acceleration
• More stable corner exits
• Greater confidence under throttle
• More predictable rear-end response

Improved Straight-Line Stability

Correct rear toe also plays an important role in high-speed and straight-line stability.

The additional adjustment allows the rear geometry to be tailored for greater confidence at speed.

Solid-Mounted Rear Arms

The solid-mounted design helps eliminate much of the compliance present in the factory rear toe arms.

This can make the rear axle feel:

• More precise
• More connected
• More responsive
• More predictable

Increased High-Speed Stability

The combination of improved front geometry and more consistent rear toe provides a more stable and confidence-inspiring chassis at speed.

This is particularly beneficial during:

• Fast road driving
• High-speed cornering
• Direction changes
• Hard acceleration

Road-Focused Performance

The CS+ Handling Pack is aimed primarily at fast-road use.

It is ideal for:

• Daily-driven M3 and M4 builds
• Fast-road cars
• Weekend performance cars
• Occasional trackday use
• Owners wanting improved geometry without a full track setup

Range of Adjustment for Road & Track

Although road-focused, the package offers enough adjustment to support future track use.

This means the setup can evolve as the car develops.

The camber and toe can be tailored around:

• Tyre choice
• Ride height
• Suspension setup
• Driving style
• Road or track use

Toothed Camber Adjustment Slots

The camber plates use toothed adjustment slots.

This helps prevent the selected camber setting from moving under heavy cornering and braking loads.

This is especially useful during:

• Aggressive road driving
• Track use
• High-grip tyre setups

Fixed Caster Offset

The caster offset is machined into a fixed position.

This provides the benefit of increased caster without requiring additional adjustment.

It also helps make the setup straightforward and repeatable.

High-Performance Bearings

The package uses high-performance Rodoball and Fluro bearings where applicable.

These are selected to provide precise suspension movement and reduce unwanted compliance.

6082 T6 Aluminium Construction

Suspension Secrets manufactures its components using billet aircraft-grade 6082 T6 aluminium.

This provides a strong and lightweight structure suitable for demanding chassis applications.

Corrosion-Resistant Stainless Steel

Corrosion-resistant stainless steel is used throughout the relevant hardware and adjustment components for improved durability.

Designed & Manufactured in the UK

Suspension Secrets designs and manufactures its suspension components in the UK.

The CS+ Handling Pack has been developed around the specific geometry limitations of the F80 M3 and F82 M4.

Motorsport Geometry for the Road

The package applies motorsport-inspired geometry principles to a road-focused setup.

Rather than simply stiffening the suspension, it focuses on improving how the tyres and suspension work together.

NVH Considerations

The rear toe arms use solid rose-jointed mounting rather than compliant factory rubber, so some increase in noise, vibration and harshness may be possible.

The overall package remains aimed at road use, but it prioritises greater precision and geometry control over factory levels of isolation.

Professional Installation Recommended

Professional installation is strongly recommended.

The car should receive a full geometry setup once the components are fitted.

Geometry Setup Essential

The final alignment should be tailored around:

• Front camber
• Rear toe
• Ride height
• Tyre specification
• Suspension setup
• Road versus track use
• Driver preference

Vehicle Fitment

BMW F80 M3 / F82 M4

Compatible models:

• BMW F80 M3
• BMW F82 M4

What's Included?

• Suspension Secrets Adjustable Camber Plates
• Suspension Secrets Adjustable Rear Toe Arms
