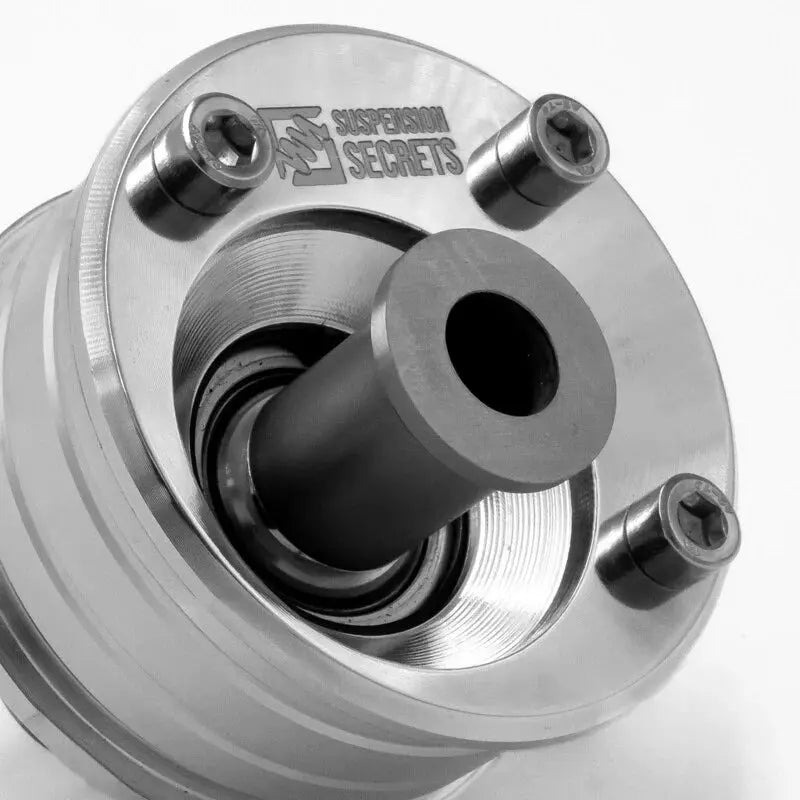

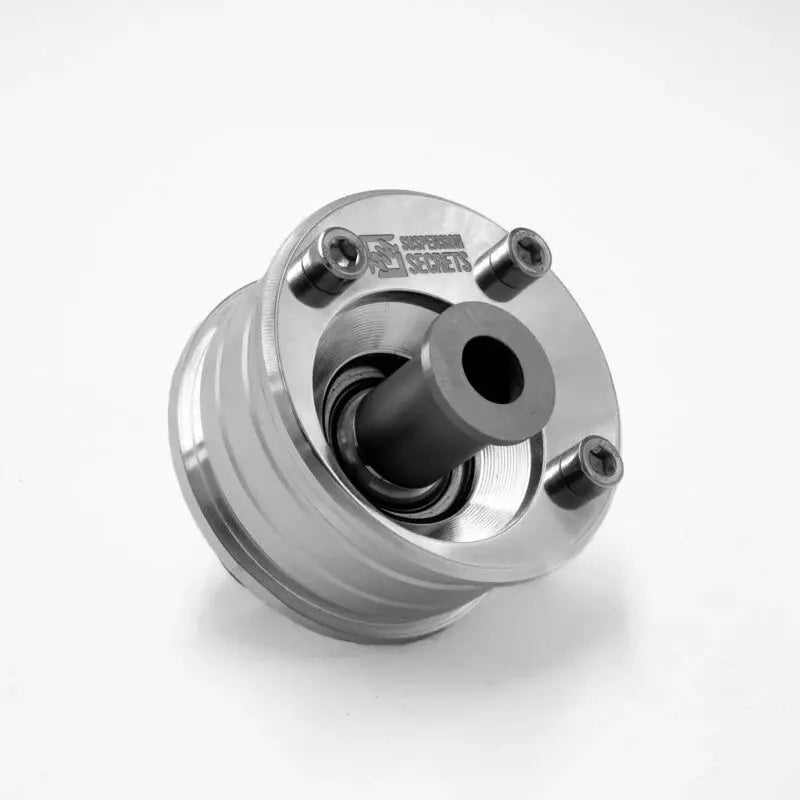

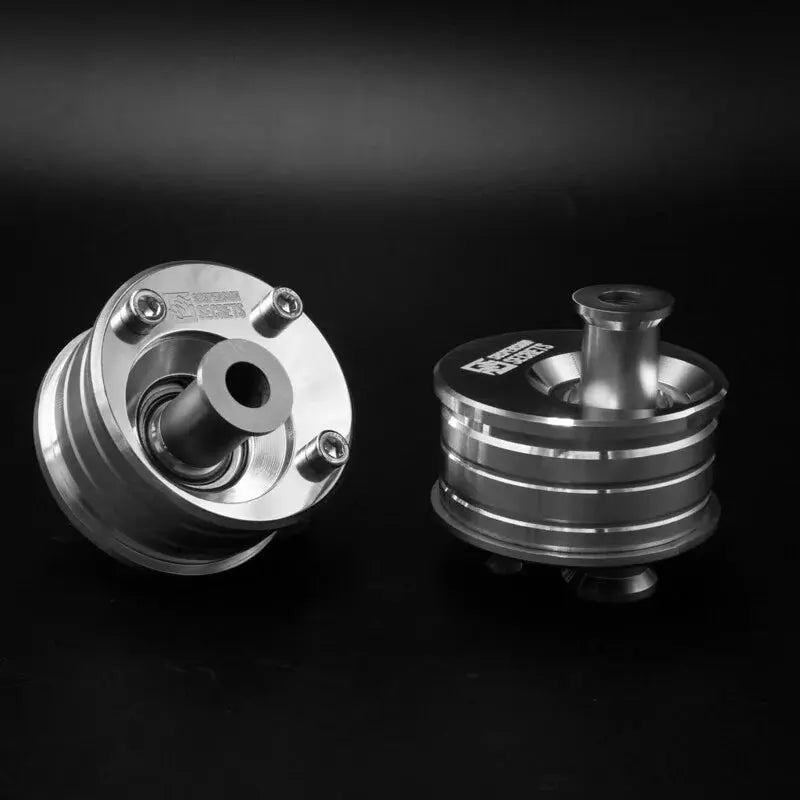

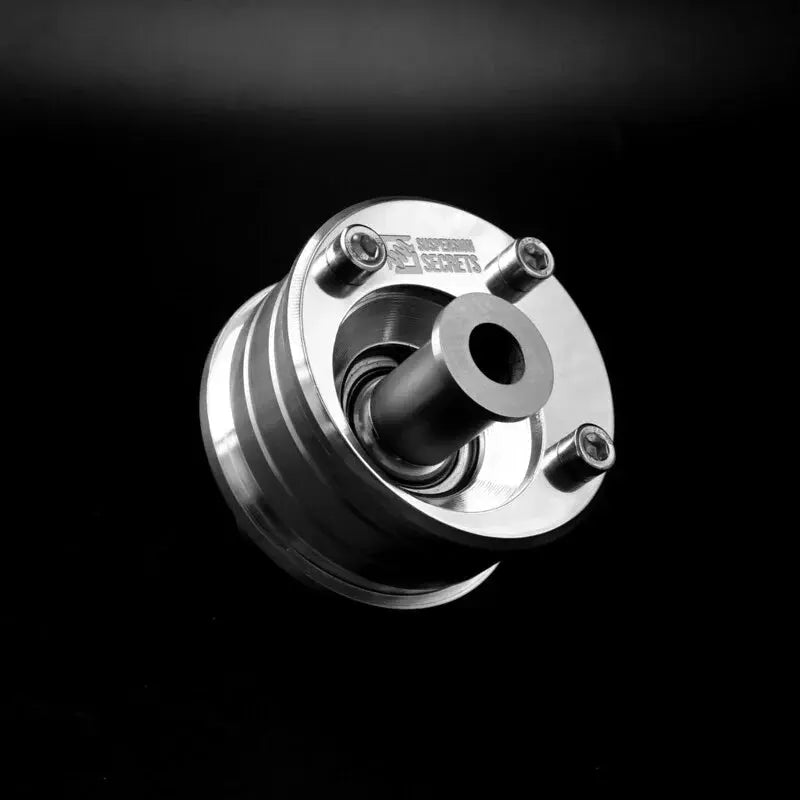

Suspension Secrets Front Offset Caster Bushes - BMW E92 M3

Suspension Secrets Front Offset Caster Bushes – BMW E92 M3

Transform the front axle behaviour of your BMW E92 M3 with Suspension Secrets Front Offset Caster Bushes.

The factory front lower control arm bushes use soft rubber, which can flex significantly under hard cornering and braking loads. This compliance can contribute to vague steering, understeer and reduced braking stability.

Suspension Secrets Front Offset Caster Bushes replace the compliant factory arrangement with a solid, rose-jointed solution that reduces unwanted movement while also increasing positive caster.

The result is a more precise and communicative front end with improved steering response, stronger braking stability and greater cornering grip.

Why Upgrade to Front Offset Caster Bushes?

These bushes address both suspension compliance and front axle geometry.

Potential benefits include:

• Increased positive caster
• Improved steering feel
• Greater front-end grip
• Reduced understeer
• Improved braking stability
• More accurate steering
• Reduced unwanted suspension deflection
• Greater control over caster setup
• Improved wheel positioning with adjustable top mounts

Key Features

• Designed for BMW E92 M3
• Solid front control arm bush design
• Offset rose-joint construction
• Increases positive caster
• Improves steering feedback
• Improves braking stability
• Helps increase cornering grip
• Reduces unwanted bush flex
• Useful with caster-adjustable top mounts
• Helps reposition the wheel within the arch
• Suitable for fast-road and track-focused setups

The Problem With the Factory Bushes

The factory front lower control arm bushes are made from soft rubber.

This helps provide refinement, but under higher loads the bush can flex significantly.

That movement can affect:

• Steering accuracy
• Front toe behaviour
• Braking stability
• Front axle response
• Cornering grip

The result can be a front end that feels less precise when the car is driven hard.

Solid Bush Design

Suspension Secrets replaces the compliant rubber arrangement with a solid bush solution.

Because the bush does not flex in the same way as the factory component, the control arm position remains more consistent under load.

This can help provide:

• Sharper steering response
• More consistent front geometry
• Better braking confidence
• Improved chassis precision

Increased Positive Caster

The offset rose-joint design increases positive caster.

Increasing caster can significantly improve how the front axle behaves during cornering.

Potential benefits include:

• Better steering self-centring
• Improved steering feedback
• Increased high-speed stability
• Greater dynamic camber gain
• Stronger front-end grip

Dynamic Camber Gain

Positive caster causes the wheel camber angle to change as steering lock is applied.

As the outside front wheel turns into a corner, increased caster can generate additional useful negative camber.

This helps the tyre maintain a more effective contact patch under load.

Potential benefits include:

• Increased cornering grip
• Reduced understeer
• Better turn-in response
• Improved mid-corner confidence

Improved Steering Feel

The combination of reduced bush compliance and increased caster can make the steering feel significantly more communicative.

Potential improvements include:

• More direct steering response
• Better front tyre feedback
• Greater confidence at speed
• Sharper turn-in

Improved Braking Stability

The factory rubber bushes can deform under heavy braking.

This can allow the front suspension geometry to shift and make the car feel nervous or vague.

Reducing this deflection helps keep the front axle more stable under braking.

Greater Caster Control

These bushes are especially useful on cars already fitted with caster-adjustable top mounts.

Using both adjustments together gives much greater control over the final caster setup.

This allows the geometry to be tailored around:

• Road use
• Track use
• Ride height
• Tyre specification
• Driver preference

Helps Re-Centre the Front Wheel

Increasing caster through adjustable top mounts can move the front wheel away from the centre of the wheel arch.

At more aggressive settings, this can cause the tyre to rub against the inner arch liner when steering.

The Suspension Secrets offset caster bushes can be used to help move the wheel back towards the centre of the arch.

Helps Prevent Inner Arch Liner Contact

The offset design is particularly useful for cars running aggressive front geometry.

It can help reduce the chance of:

• Tyre-to-liner contact
• Inner arch rubbing
• Clearance issues at steering lock

This allows the car to retain more aggressive caster settings without necessarily reducing adjustment at the top mount.

Works Well With Adjustable Camber/Caster Plates

These bushes work particularly well alongside adjustable camber/caster top mounts.

Together, they provide much greater control over:

• Front camber
• Front caster
• Wheel position
• Tyre clearance
• Steering response

This makes them especially useful for more developed E92 M3 suspension setups.

Fast-Road & Track Applications

The Suspension Secrets Front Offset Caster Bushes are particularly suited to:

• Fast-road E92 M3 builds
• Clubsport cars
• Trackday cars
• Cars running adjustable top mounts
• Semi-slick tyre setups
• Aggressive front geometry configurations

NVH Considerations

Because these bushes use a solid, rose-jointed design rather than the compliant factory rubber arrangement, some increase in noise, vibration and harshness may be expected.

This is a performance-focused upgrade intended for drivers who prioritise geometry control, steering precision and front axle response.

Works Well With Other Suspension Upgrades

These bushes can complement:

• Adjustable camber/caster plates
• Adjustable front drop links
• Coilovers
• Lowering springs
• Uprated anti-roll bars
• Performance geometry setups

Professional Installation Recommended

Professional installation is strongly recommended.

The bushes should be fitted correctly and checked alongside the rest of the front suspension.

Geometry Setup Essential

A full geometry setup is strongly recommended after installation.

The final setup should include:

• Caster adjustment
• Camber adjustment
• Toe adjustment
• Steering clearance checks
• Wheel position checks

Vehicle Fitment

BMW M3 E92

Compatible model:

• BMW E92 M3 Coupe

What's Included?

Each kit includes:

• 1 pair Suspension Secrets Front Offset Caster Bushes
