Suspension Secrets Handling Pack 2 (Clubsport) - BMW F22 M235i/M240i

Suspension Secrets Handling Pack 2 (Clubsport) – BMW F22 M235i / M240i

Transform your BMW F22 M235i or M240i into a far more capable road and track car with Suspension Secrets Handling Pack 2.

Designed for clubsport-style builds, this package is aimed at drivers who want significantly improved track performance while still keeping the car usable on the road for weekend driving and trips to and from the circuit.

The standard F22 chassis offers relatively limited geometry adjustment and uses a number of compliant rubber bushes throughout the suspension. Under harder cornering and braking loads, this can allow unwanted movement and geometry change.

Handling Pack 2 addresses these limitations with adjustable geometry components and selected solid bushes to create a more precise, stable and confidence-inspiring chassis.

Why Choose Handling Pack 2?

Handling Pack 2 sits between a fast-road setup and a fully dedicated track package.

It is designed to provide significantly greater suspension control without making the car completely unsuitable for road use.

Potential benefits include:

• Increased geometry adjustment
• Improved mid-corner grip
• Greater braking stability
• Sharper turn-in
• Reduced suspension deflection
• Improved rear axle control
• More precise chassis behaviour
• Better road and track balance
• Ideal for clubsport-style builds

What's Included?

Handling Pack 2 includes:

• Suspension Secrets Camber Plates
• Suspension Secrets Adjustable Front Drop Links
• Suspension Secrets Adjustable Rear Drop Links
• Suspension Secrets Adjustable Rear Toe Arms
• Suspension Secrets Solid Front Control Arm Bushes
• Suspension Secrets Adjustable Rear Upper Camber Arms
• Suspension Secrets Adjustable Rear Upper Third Link Arms
• Suspension Secrets Solid Rear Control Arm Bushes

These components work together to improve geometry adjustment, reduce unwanted bush movement and create a more consistent chassis under high loads.

Suspension Secrets Camber Plates

The standard F22 offers very limited front camber adjustment.

The Suspension Secrets camber plates provide the additional range required for a more track-focused front alignment.

Potential benefits include:

• Increased front-end grip
• Reduced understeer
• Sharper turn-in
• More effective tyre use
• Greater alignment flexibility

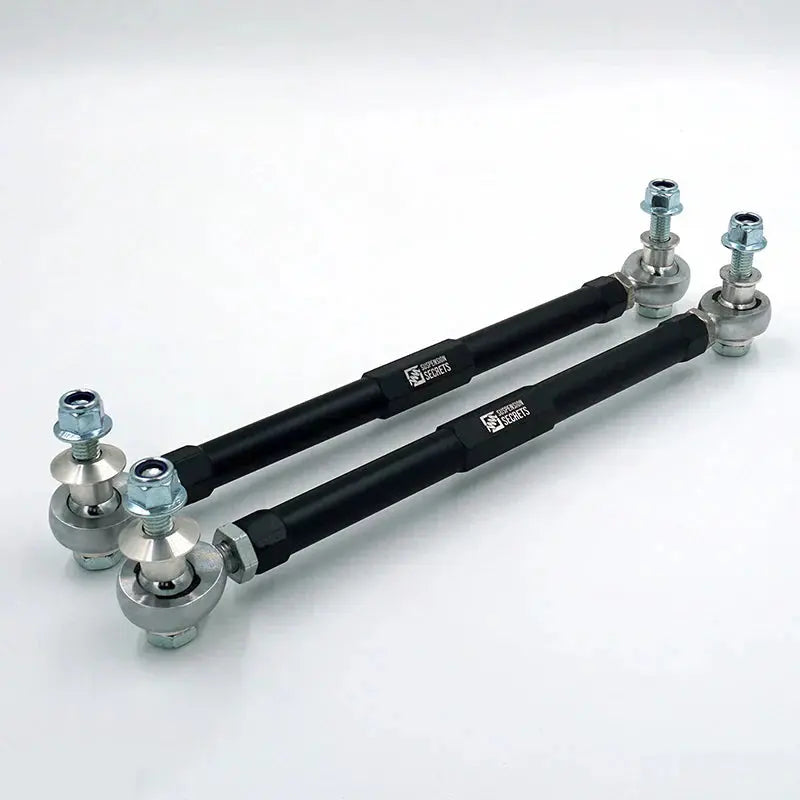

Adjustable Front & Rear Drop Links

Lowered cars can place the anti-roll bars into an unfavourable resting position.

Adjustable drop links allow the front and rear anti-roll bars to be correctly positioned around the vehicle's ride height and suspension setup.

This can help provide:

• Reduced unwanted anti-roll bar preload
• More consistent suspension behaviour
• Improved left-to-right balance
• Better anti-roll bar operation

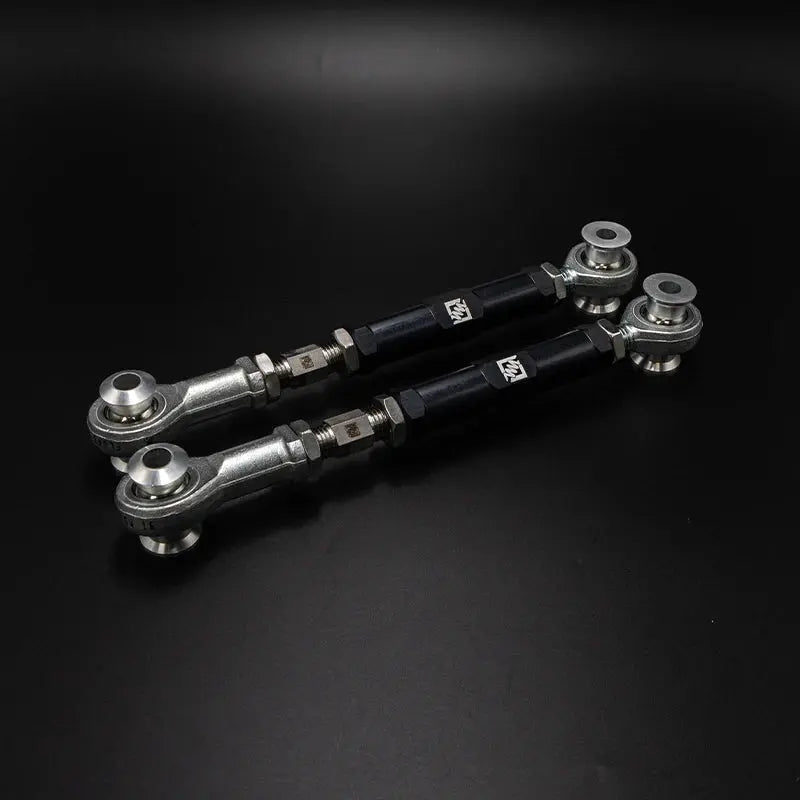

Adjustable Rear Toe Arms

Rear toe has a significant influence on stability, traction and cornering behaviour.

The adjustable rear toe arms provide greater setup range than the standard components while reducing the deflection associated with factory rubber bushes.

Potential benefits include:

• Improved rear stability
• Better traction
• Greater geometry consistency
• More accurate rear alignment

Solid Front Control Arm Bushes

The factory front control arm bushes can flex under heavy braking and cornering loads.

Replacing them with the Suspension Secrets solid bush arrangement reduces this movement and helps maintain more consistent front suspension geometry.

Potential improvements include:

• Better braking stability
• More accurate steering
• Reduced toe deflection
• Sharper front-end response
• Greater driver confidence

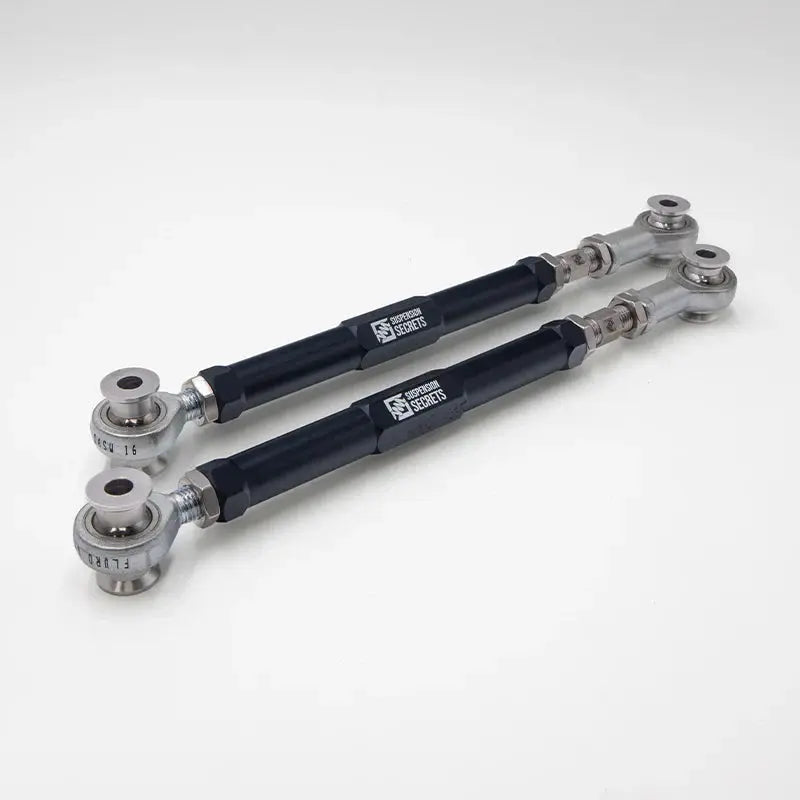

Adjustable Rear Upper Camber Arms

The adjustable rear camber arms allow the rear wheel camber to be tailored much more accurately.

This becomes increasingly important on track, where additional negative camber can help maintain tyre contact during loaded cornering.

Potential benefits include:

• Increased rear cornering grip
• Greater geometry adjustment
• More consistent tyre behaviour
• Better rear chassis balance

Adjustable Rear Upper Third Links

The standard rear upper third links are fixed-length components.

When more aggressive rear camber is introduced, they can become loaded or operate at less favourable angles.

The adjustable third link arms allow the rear suspension to accommodate more aggressive geometry settings with reduced binding.

This provides:

• Greater rear camber range
• Reduced bearing and joint binding
• Improved rear axle consistency
• Better compatibility with track-focused geometry

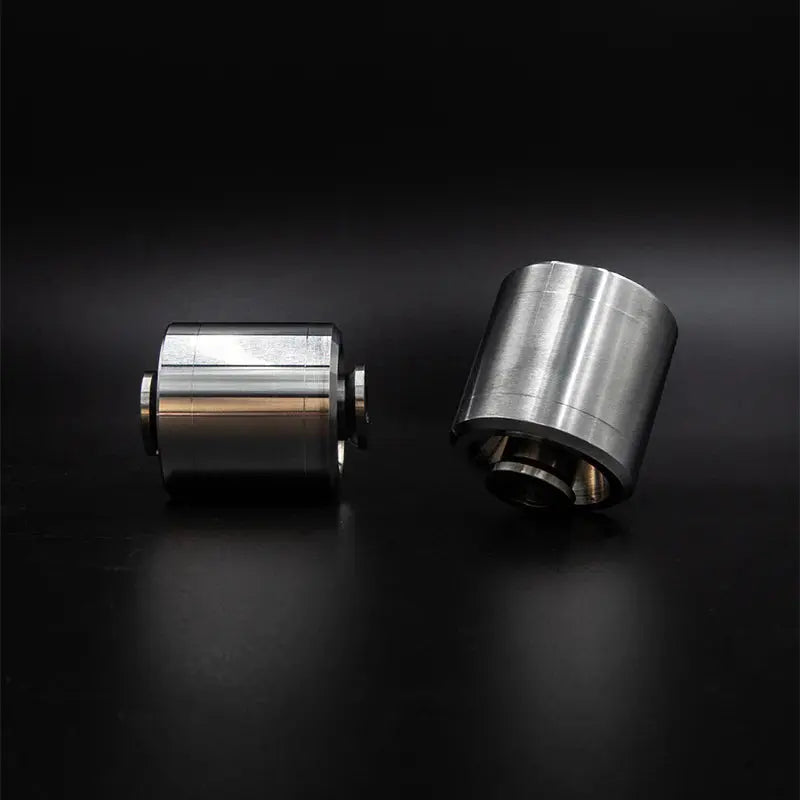

Solid Rear Control Arm Bushes

The factory rear suspension uses compliant rubber bushes which can deflect under high cornering loads.

This movement can cause rear camber and toe to change dynamically.

The solid rear control arm bushes reduce this unwanted movement and help the rear suspension maintain more consistent geometry.

Potential benefits include:

• Improved mid-corner stability
• More predictable rear grip
• Increased rear axle precision
• Better feedback
• Improved braking stability

Improved Mid-Corner Grip

One of the biggest benefits of Handling Pack 2 is improved geometry consistency through loaded corners.

Reducing bush deflection and adding greater alignment control helps keep the tyres working closer to their intended position.

This can provide:

• Greater cornering grip
• More predictable balance
• Better tyre contact
• Increased confidence at the limit

Improved Braking Stability

The standard F22 chassis can feel unsettled under heavy braking as compliant suspension components move under load.

Handling Pack 2 reduces this unwanted movement, helping create a more stable braking platform.

Increased Geometry Adjustment

The factory F22 offers relatively limited suspension alignment range.

Handling Pack 2 substantially increases the available adjustment through:

• Front camber
• Rear camber
• Rear toe
• Rear upper link adjustment
• Correct anti-roll bar positioning

This allows a much more track-friendly alignment to be achieved.

Clubsport Road & Track Balance

Handling Pack 2 is specifically aimed at dual-purpose cars.

It is ideal for:

• Weekend road cars
• Regular trackday cars
• Nürburgring-style builds
• Clubsport setups
• Performance road and track cars

Works Well With Coilovers

Although coilovers are not included within the RCC Handling Pack, the package is intended to work particularly well alongside a suitable performance coilover setup.

A quality coilover system can add further control over:

• Ride height
• Damping
• Body control
• Chassis response

Together with the Handling Pack components, this creates a strong foundation for a capable road and track setup.

NVH Considerations

Unlike the more road-focused Handling Pack 1, this package includes solid suspension bushes.

As a result, some increase in noise, vibration and harshness may be expected compared with the standard suspension.

The package is still intended to remain road usable, but chassis precision and track performance are given greater priority than factory refinement.

Works Well With Supporting Upgrades

Handling Pack 2 can be combined with:

• Performance coilovers
• Performance tyres
• Uprated brakes
• Limited slip differential
• Uprated anti-roll bars
• Additional chassis bracing

These supporting upgrades can help create a balanced clubsport-style build.

Professional Installation Required

Due to the number of adjustable suspension components included, professional installation is strongly recommended.

The vehicle should receive:

• Suspension inspection
• Anti-roll bar setup
• Camber adjustment
• Rear toe setup
• Full performance alignment
• Fastener checks

Performance Geometry Setup Essential

A full geometry setup is essential after installation.

The final alignment should be configured around:

• Road versus track use
• Tyre choice
• Ride height
• Suspension setup
• Driver preference
• Desired chassis balance

Vehicle Fitment

BMW 2 Series F22

Compatible models:

• BMW M235i F22
• BMW M240i F22

What's Included?

• Suspension Secrets Camber Plates
• Adjustable Front Drop Links
• Adjustable Rear Drop Links
• Adjustable Rear Toe Arms
• Solid Front Control Arm Bushes
• Adjustable Rear Upper Camber Arms
• Adjustable Rear Upper Third Link Arms
• Solid Rear Control Arm Bushes
