Suspension Secrets Solid Rear Subframe Bushes - BMW 1M

Suspension Secrets Solid Rear Subframe Bushes – BMW 1M

Increase rear axle stability, chassis response and feedback on your BMW E82 1M with Suspension Secrets Solid Rear Subframe Bushes.

The standard BMW 1M rear subframe is mounted to the chassis using large rubber bushes. These bushes are designed to isolate noise and vibration, but they can also allow the rear subframe to move under cornering loads.

As the bushes age, or as the suspension is stiffened with lowering springs, coilovers and other chassis upgrades, this movement can become more noticeable.

Suspension Secrets developed these solid billet bushes to remove that compliance and create a more direct connection between the rear subframe and chassis.

Reduce Rear Subframe Movement

Under hard cornering, the standard rubber bushes can flex and allow the entire rear subframe to move relative to the chassis.

This can contribute to:

• Rear-end instability
• Delayed chassis response
• Inconsistent feedback
• Reduced confidence when driving hard

Replacing the rubber bushes with solid billet mounts helps keep the subframe more securely located under load.

Improved Rear Axle Stability

By reducing unwanted subframe movement, these bushes can help make the rear axle feel more planted and predictable.

Potential benefits include:

• Improved cornering stability
• More consistent rear-end behaviour
• Increased rear axle confidence
• Reduced unwanted chassis movement
• Better control during fast direction changes

More Direct Chassis Response

With the compliance removed from the rear subframe mounting points, tyre and suspension loads can be transferred into the chassis more directly.

This can help provide:

• Faster chassis response
• More immediate feedback
• Greater sense of connection
• More predictable handling
• Improved confidence during spirited driving

Increased Feedback

The solid mounting arrangement reduces the delay created by soft rubber bushes deforming under load.

This gives the driver a clearer sense of what the rear axle is doing and can make the car feel more responsive to steering, throttle and suspension inputs.

Reduced Rear-End Instability

By keeping the subframe more securely located, the rear geometry is less affected by movement at the mounting points.

This can help reduce unwanted rear-end movement and improve the car’s overall balance during demanding road and track use.

Ideal with Uprated Suspension

These bushes are especially useful on cars already fitted with:

• Lowering springs
• Coilovers
• Uprated anti-roll bars
• Performance alignment
• Semi-slick tyres
• Other solid or spherical suspension components

As the rest of the suspension becomes more rigid, the standard subframe bushes can become a larger source of unwanted compliance.

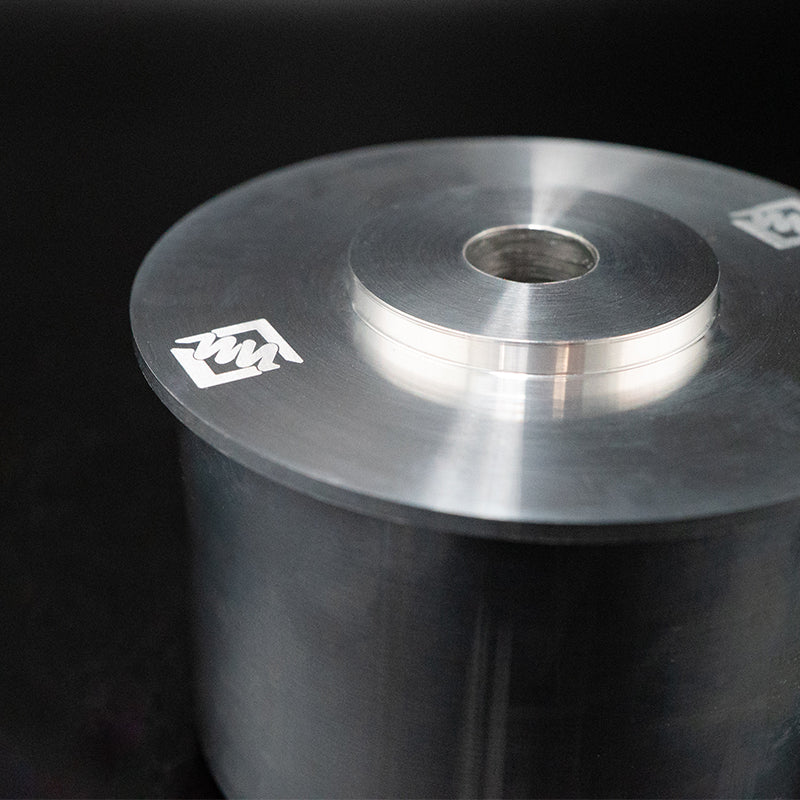

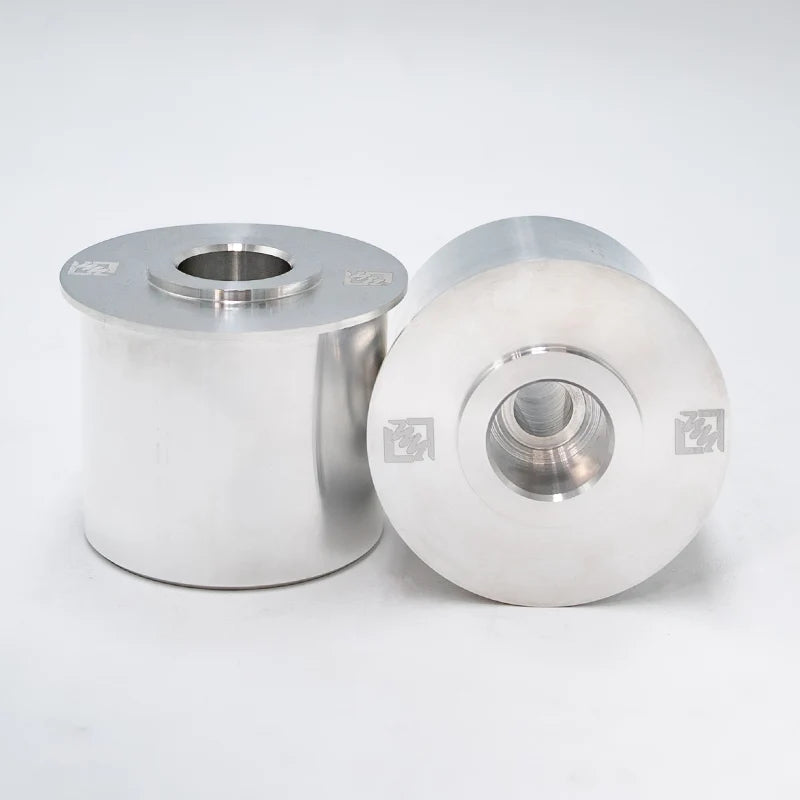

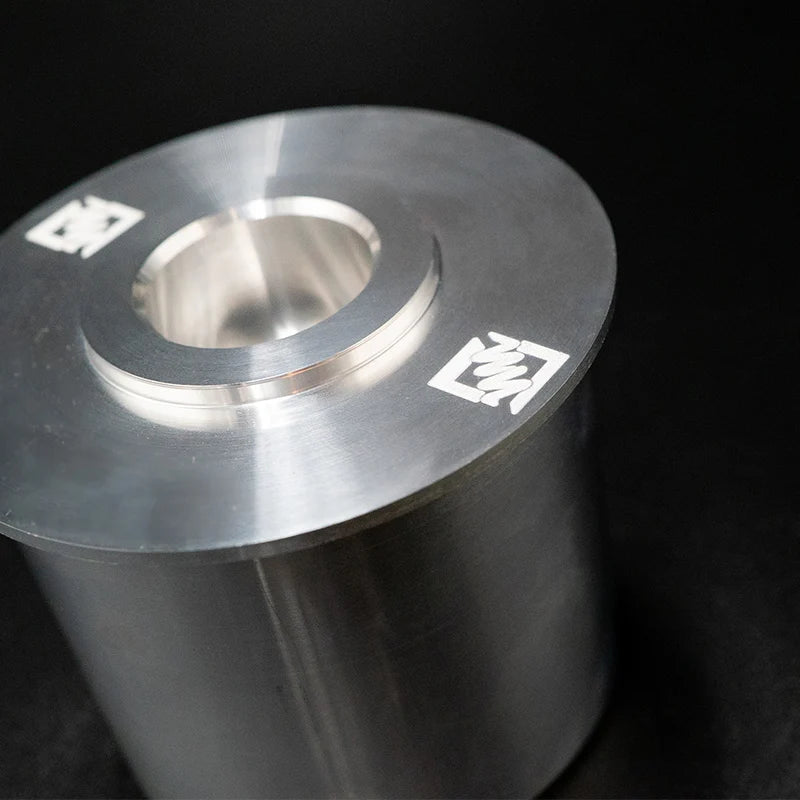

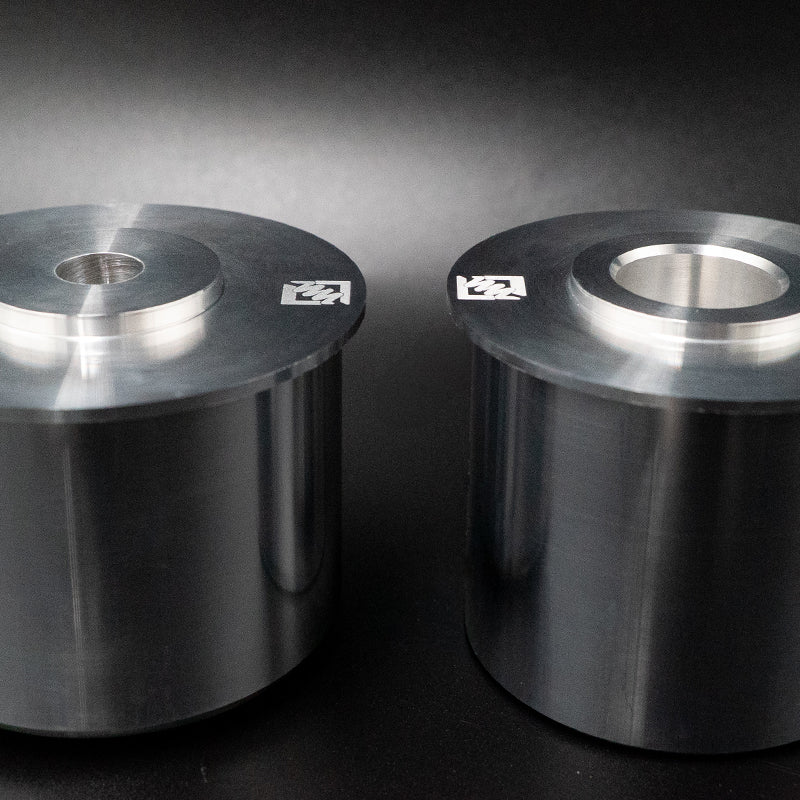

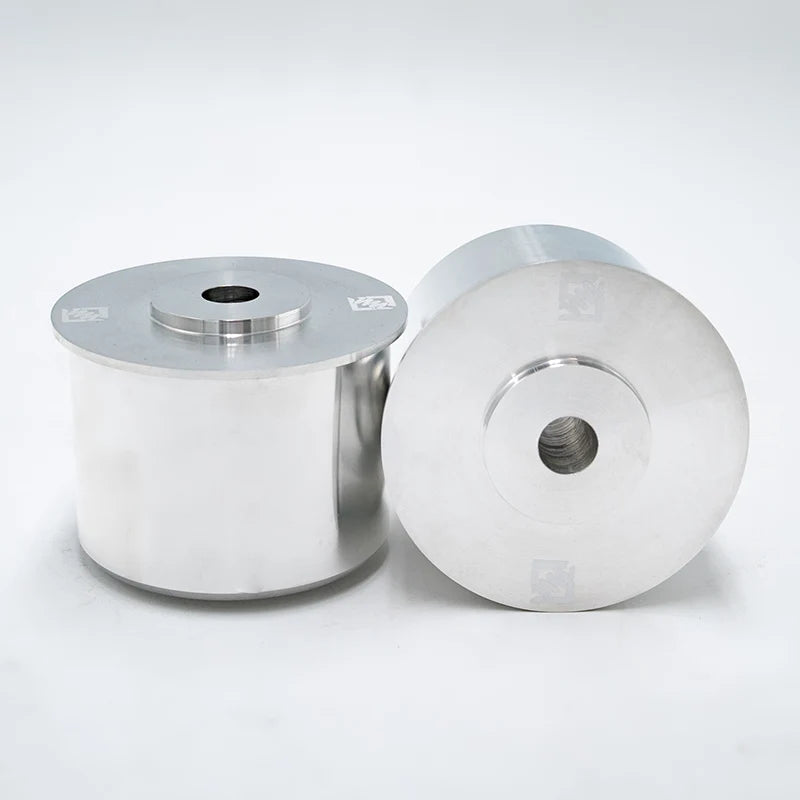

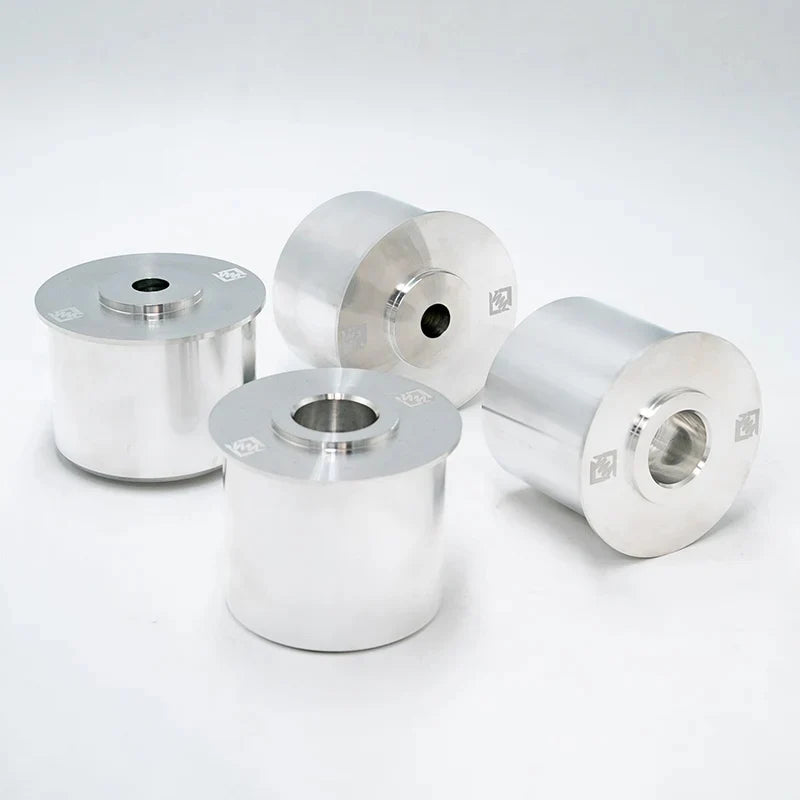

Billet Aluminium Construction

Suspension Secrets manufactures these bushes from billet 6082 T6 aircraft-grade aluminium.

This provides:

• High strength
• Very low compliance
• Precise subframe location
• Long-term durability
• Suitability for demanding road and track use

The bushes are designed and manufactured in-house in the UK.

Key Benefits

• Improved rear axle stability
• Increased cornering stability
• More direct chassis response
• Improved chassis feedback
• Reduced rear subframe movement
• More predictable handling
• Greater sense of connection to the rear axle
• Reduced unwanted rear-end instability
• Suitable for fast-road and track builds
• Billet 6082 T6 aluminium construction
• Designed and manufactured in the UK

NVH Consideration

These bushes replace large compliant rubber mounts with solid aluminium components.

As a result, some increase in noise, vibration and harshness may be transmitted into the cabin compared with the standard setup.

This is a normal characteristic of solid-mounted subframe bushes and should be considered if the car is primarily used for comfort-focused road driving.

Vehicle Fitment

Designed for:

• BMW E82 1M Coupe

If you're unsure whether solid rear subframe bushes are suitable for your intended use or current suspension setup, please contact The Rosso Corsa Collective before ordering.

Professional Installation Recommended

Professional installation is strongly recommended.

Rear subframe removal or partial lowering may be required depending on installation method, and the vehicle should receive a full geometry check after fitting.
