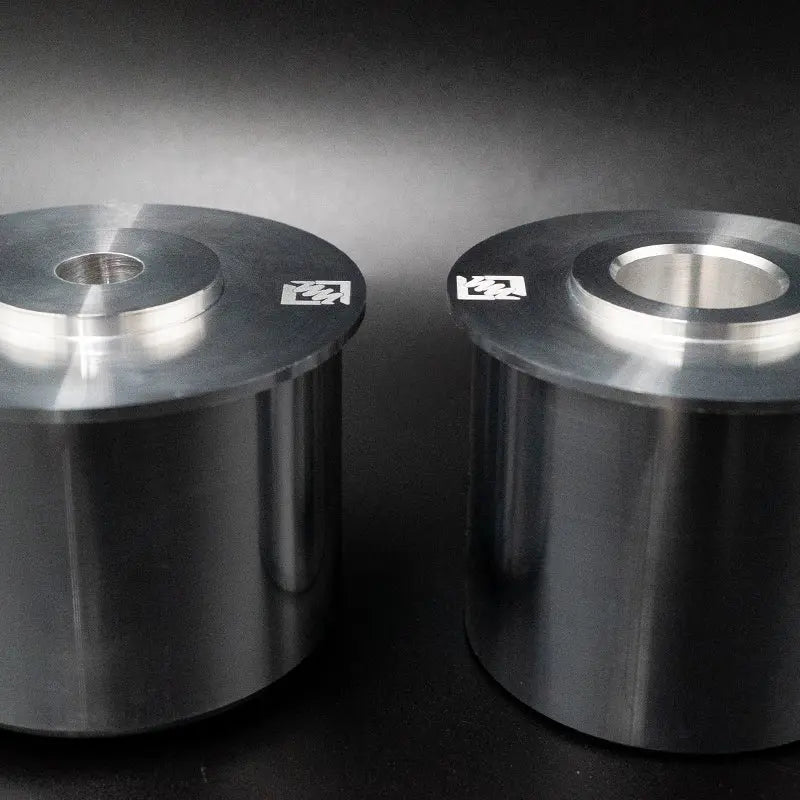

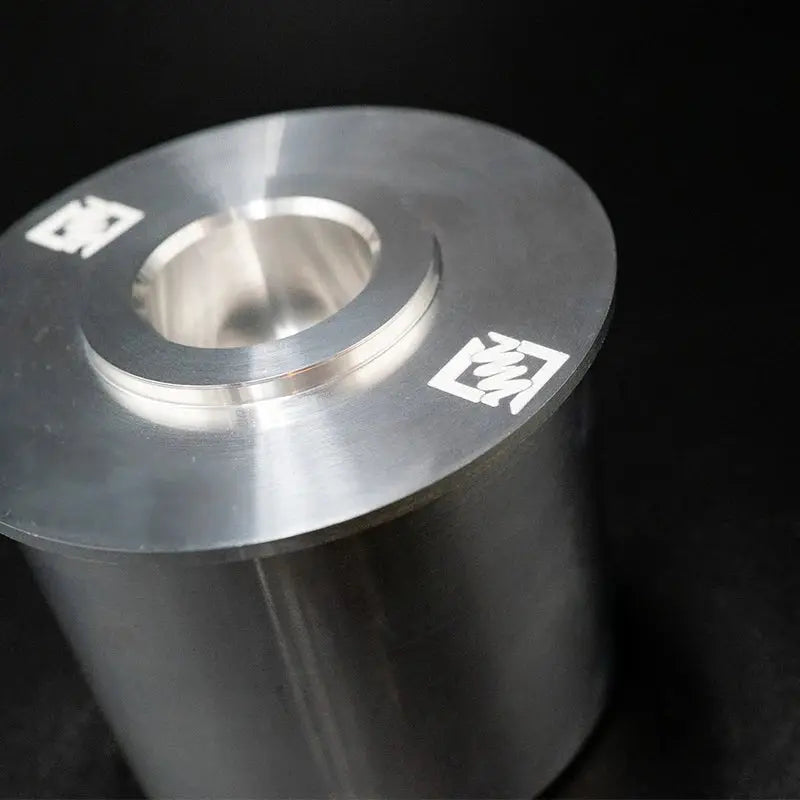

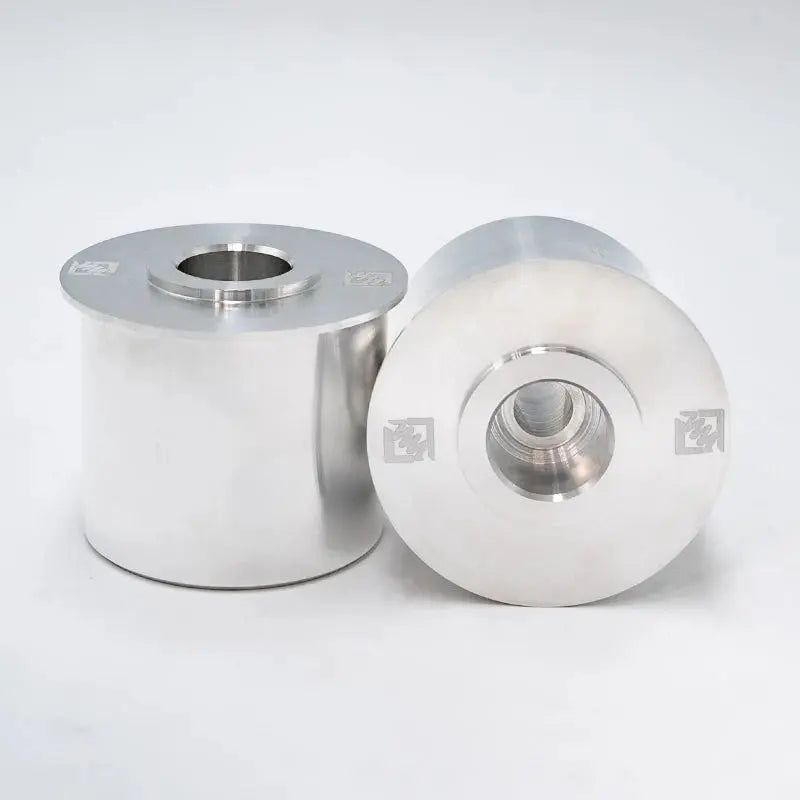

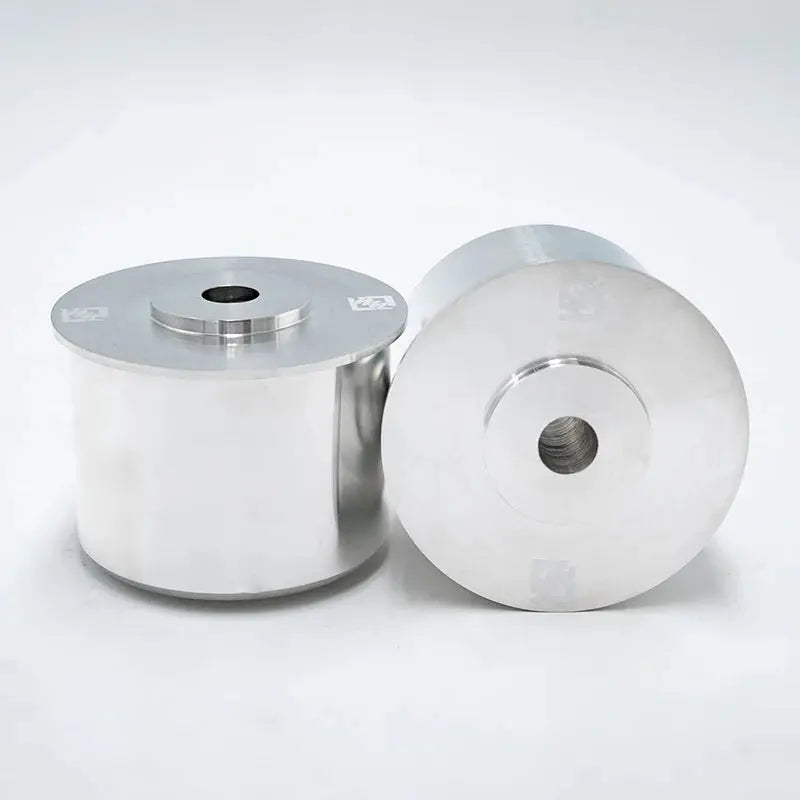

Suspension Secrets Solid Rear Subframe Bushes - BMW E90 / E92 M3

Suspension Secrets Solid Rear Subframe Bushes – BMW E90 / E92 M3

Increase rear axle stability, chassis response and driver confidence with Suspension Secrets Solid Rear Subframe Bushes for the BMW E90 and E92 M3.

As standard, the E9x M3 uses large rubber bushes to mount the rear subframe to the chassis. These bushes are designed with refinement in mind, but under hard cornering they can flex and allow the entire rear subframe to move relative to the body.

That movement introduces compliance into the rear suspension, which can make the rear axle feel less precise and can reduce how quickly tyre forces are transferred into the chassis.

Suspension Secrets Solid Rear Subframe Bushes replace the factory rubber mounts with billet aluminium components designed to remove this movement and create a much more direct connection between the rear axle and chassis.

Why Upgrade the Rear Subframe Bushes?

Reducing movement between the rear subframe and chassis can significantly improve how the rear axle behaves under load.

Potential benefits include:

• Improved cornering stability
• Increased chassis response
• More direct rear axle feedback
• Reduced unwanted rear subframe movement
• Greater driver confidence
• More precise handling
• Improved rear-end predictability
• Better use of uprated suspension components

Key Features

• Designed for BMW E90 / E92 M3
• Replaces factory rubber rear subframe bushes
• Solid billet construction
• Reduces rear subframe movement
• Improves rear axle stability
• Increases chassis response and feedback
• Helps reduce unwanted oversteer
• Improves suspension response
• Billet aircraft-grade 6082 T6 aluminium construction
• Designed and manufactured in-house in the UK

The Problem With the Factory Rear Subframe Bushes

The factory rear subframe is isolated from the chassis by large rubber mounts.

During hard cornering, these bushes can flex.

This allows the subframe itself to move, which means the suspension geometry and rear axle loads are not transferred into the chassis as directly as they could be.

Rear Subframe Movement Under Load

As cornering forces build, the factory rubber bushes deform.

This can introduce a delay between:

• Tyre input
• Suspension movement
• Subframe movement
• Chassis response

That delay can make the rear of the car feel less precise and less connected.

Bush Wear Can Make the Problem Worse

As the factory bushes age, their ability to control the rear subframe can deteriorate.

This means older cars may experience even more movement than they did when new.

The issue can become increasingly noticeable when the car is driven hard.

More Noticeable With Stiffer Suspension

Upgrading the suspension with lowering springs or coilovers can increase the forces being transferred through the chassis.

When the dampers and springs become more controlled but the rear subframe remains mounted on soft rubber, the subframe bushes can become one of the remaining sources of compliance.

Solid subframe bushes help create a more complete and consistent performance suspension setup.

Solid Billet Construction

Suspension Secrets replaces the factory rubber bushings with solid billet aluminium components.

This removes the large amount of compliance present in the OEM mounting system.

The result is a much more direct structural connection between the rear subframe and chassis.

Improved Rear Axle Stability

Reducing rear subframe movement helps the rear axle stay more consistent under load.

Potential improvements include:

• More stable cornering
• Better high-speed confidence
• More predictable rear-end behaviour
• Greater consistency through direction changes

Increased Chassis Response

With the subframe mounted more rigidly, suspension and tyre forces are transferred into the chassis more quickly.

This can make the car respond more immediately to:

• Steering inputs
• Throttle changes
• Direction changes
• Braking inputs

Improved Feedback

Reducing isolation between the rear axle and chassis allows more feedback to reach the driver.

This can make it easier to understand what the rear tyres are doing and how much grip remains available.

For performance driving, this can improve confidence and consistency.

Reduced Oversteer Tendency

Unwanted rear subframe movement can make the rear axle less predictable as lateral load builds.

By removing this movement, the chassis can respond more consistently.

This may help reduce unwanted or sudden oversteer and make the car easier to control near the limit.

More Direct Grip Transfer

With less movement in the subframe mounts, tyre forces are transferred into the chassis more directly.

This can improve:

• Rear axle response
• Cornering grip
• Suspension precision
• Driver feedback

Better Use of Other Suspension Upgrades

Solid rear subframe bushes are especially valuable on cars already fitted with other chassis upgrades.

They work particularly well alongside:

• Coilovers
• Lowering springs
• Adjustable rear camber arms
• Adjustable rear toe arms
• Adjustable rear traction arms
• Adjustable rear upper third links
• Solid rear control arm bushes
• Uprated anti-roll bars

Reducing subframe movement allows these components to work from a more stable mounting point.

Ideal for Performance-Focused E9x M3 Builds

These bushes are particularly well suited to:

• Fast-road cars
• Clubsport builds
• Trackday cars
• Semi-slick tyre setups
• Dedicated track builds

6082 T6 Aluminium Construction

The bushes are manufactured from billet aircraft-grade 6082 T6 aluminium.

This provides a strong and rigid mounting solution designed for demanding chassis applications.

Designed & Manufactured in the UK

Suspension Secrets designs, develops and manufactures its suspension components in-house in the UK.

The rear subframe bushes are developed specifically around the E9x M3 chassis.

NVH Considerations

Because these bushes replace large compliant rubber mounts with solid aluminium components, an increase in noise, vibration and harshness should be expected.

This is a performance-focused upgrade intended for drivers who prioritise rear axle precision, chassis response and feedback over factory levels of refinement.

Professional Installation Recommended

Rear subframe bush replacement is a more involved suspension job and professional installation is strongly recommended.

The rear subframe will need to be accessed and the factory bushes removed correctly before the solid replacements are installed.

Geometry Setup Recommended

A full geometry check is recommended after installation.

This is particularly important if the car is also fitted with adjustable suspension arms or has had the rear subframe removed during fitting.

The setup should include:

• Rear camber
• Rear toe
• Ride height
• Full four-wheel alignment

Vehicle Fitment

BMW M3 E90 / E92

Compatible models:

• BMW E90 M3 Saloon
• BMW E92 M3 Coupe

What's Included?

Each kit includes:

• Suspension Secrets Solid Rear Subframe Bushes
