Wagner Tuning BMW E8x E9x 35i EVO3 Competition Intercooler Kit

Wagner Tuning BMW E8x / E9x 35i EVO3 Competition Intercooler Kit

Take charge-air cooling to the next level on your BMW 135i or 335i with the Wagner Tuning EVO3 Competition Intercooler Kit.

Designed for demanding N54 and N55 performance applications, the EVO3 uses a much larger high-performance core to improve cooling capacity, reduce heat soak and support more consistent performance under sustained load.

Wagner Tuning part number:

200001113

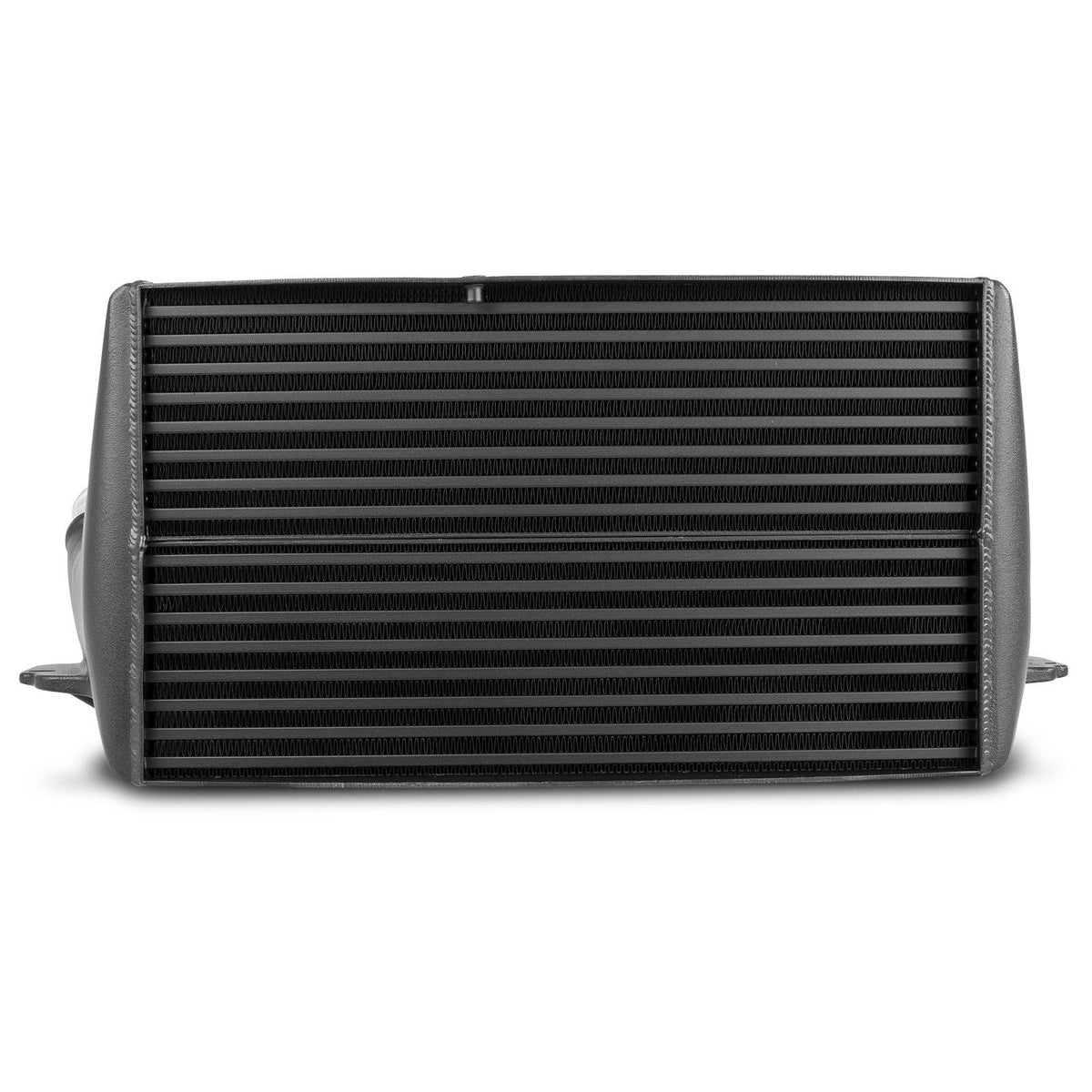

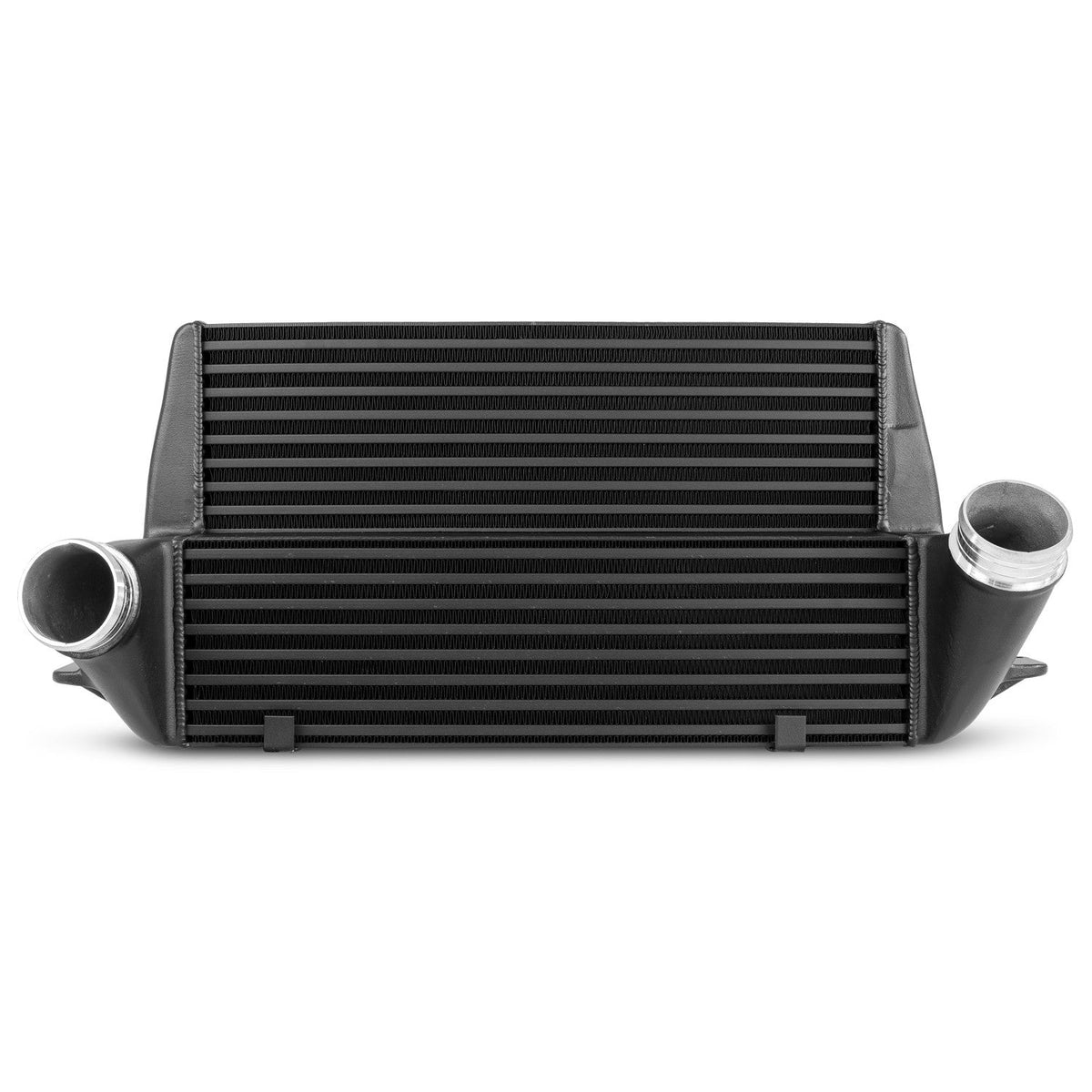

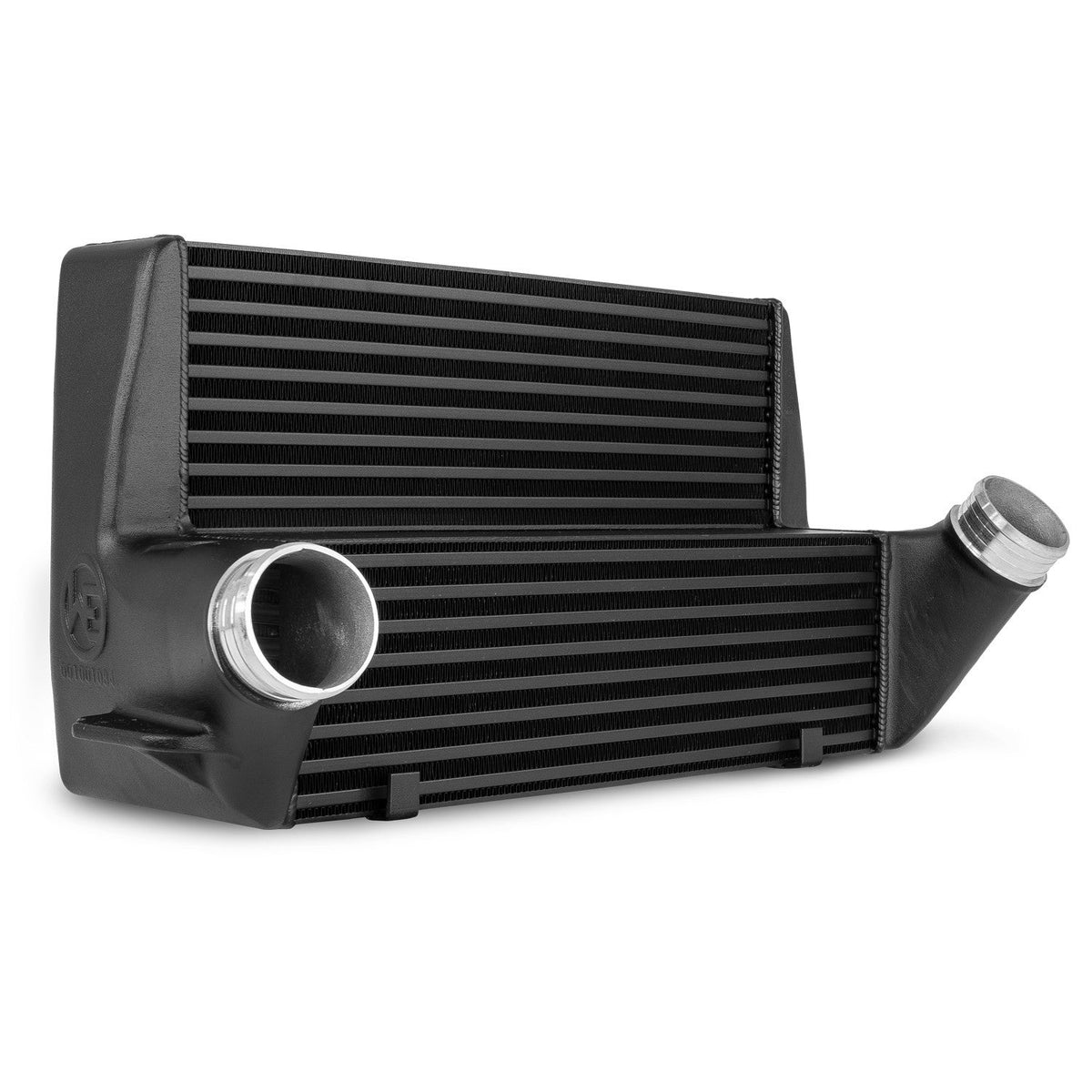

EVO3 Competition Intercooler

The EVO3 uses a stepped core measuring 510 x 303 x 180mm with a total charge-air volume of 20.65 litres.

Compared with the factory intercooler, Wagner Tuning states that it provides:

• 162% larger cooling / flow area
• 182% more charge-air volume
• Improved charge-air cooling
• Reduced pressure losses
• Better resistance to heat soak
• Improved performance consistency at higher intake temperatures

Competition Core Design

The intercooler uses Wagner Tuning’s Competition Tube Fin core with internal turbulators.

It also features CFD-optimised cast aluminium end tanks and enlarged 70mm inlet and outlet connections to improve airflow through the system.

Technical specifications include:

• Core dimensions: 510 x 303 x 180mm
• Stepped core design
• Charge-air volume: 20.65 litres
• +162% flow area compared with OEM
• +182% charge-air volume compared with OEM
• 70mm inlet and outlet connections
• Pressure tested up to 6 bar
• Approx. weight: 13.2kg
• Anti-corrosion coating with heat-conducting properties

Improved Thermal Management

As boost pressure and engine load increase, controlling charge-air temperatures becomes increasingly important.

The larger EVO3 core helps remove more heat from the compressed intake air before it reaches the engine, supporting:

• More consistent performance
• Reduced heat soak
• Improved intake-air temperature control
• Better performance during repeated acceleration
• Greater suitability for tuned and track-focused builds

Plug & Play Installation

Wagner Tuning lists the EVO3 as a plug-and-play replacement using the factory mounting points, without requiring complex chassis modifications.

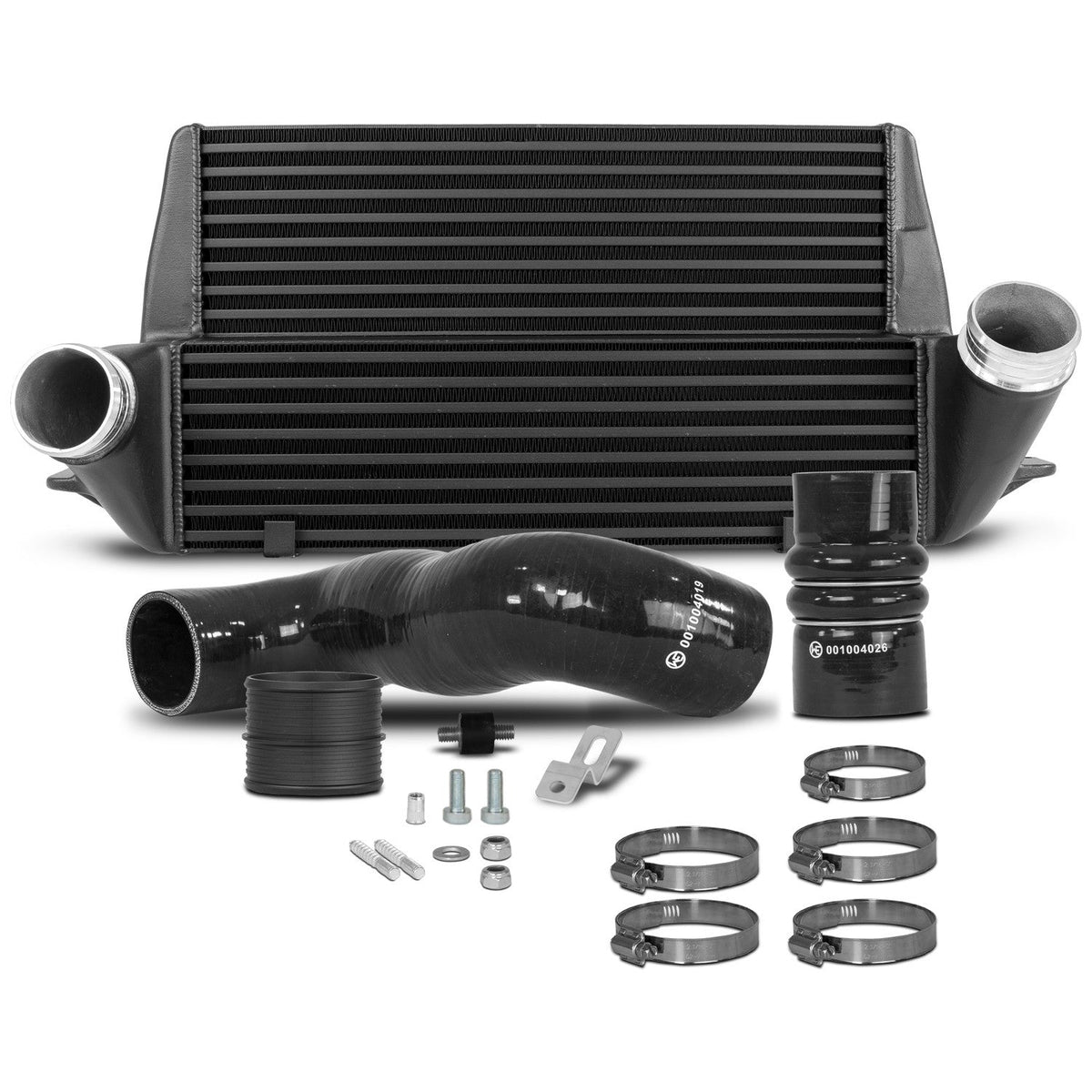

What’s Included

The kit includes:

• 1x Wagner Tuning EVO3 Competition intercooler
• 2x silicone hoses
• 1x aluminium adapter
• Mounting hardware
• Installation instructions

Vehicle Fitment

Wagner Tuning lists part number 200001113 for selected N54 and N55 applications including:

• BMW E82 135i
• BMW E88 135i
• BMW E82 1M
• BMW E90 335i / 335xi
• BMW E91 335i / 335xi
• BMW E92 335i / 335xi
• BMW E93 335i / 335xi
• BMW E92 335is

Wagner Tuning specifies certain exclusions, including vehicles with ACC, and notes that the E82/E88 135i application is not compatible with the M Performance front bumper. Exact vehicle specification should therefore be confirmed before ordering.

Professional Installation Recommended

Professional installation is recommended.

All boost connections, hose clamps, mounting points and surrounding components should be checked carefully after fitting to ensure a secure and leak-free charge-air system.

If you're unsure whether part number 200001113 is suitable for your BMW, please contact The Rosso Corsa Collective with your registration or exact vehicle details.
